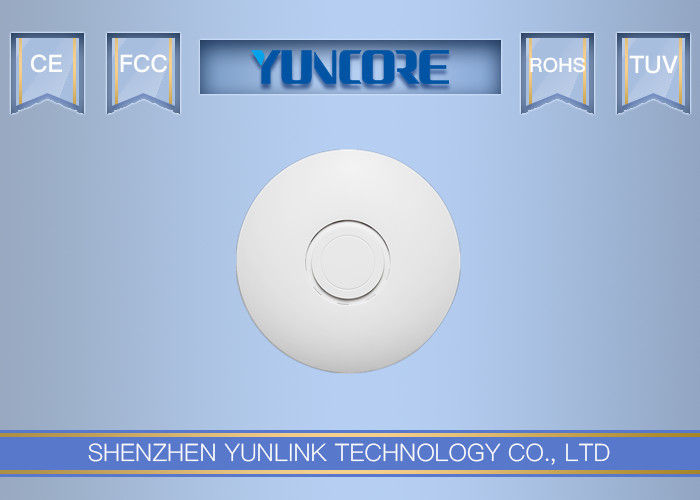

Round 48V 802.3at PoE 802.11 AC Access Point For Hotel / Home With 5dBi Antenna

Product Details:

Place of Origin:	China
Brand Name:	Yuncore
Certification:	CE,FCC,ROHS
Model Number:	XD8508HR

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	Giftbox + Carton box
Delivery Time:	4 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS/ WEEK

Contact Now

Detailed Product Description

Material:	ABS	Color:	White
Chipset:	Realtek	Flash:	16M
RAM:	128M	Band:	2.4G + 5.8G
Power:	500mW	Port:	110/100M WAN, 110/100M LAN
High Light:	wireless ac access point , ceiling access point

1200Mbps Dual Band 48V 802.3at PoE Ceiling Mounted Wireless Access Point for Home Hotel

Description:

XD-8508HR is an high power industrial Ceiling Wireless Access Point with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equiped Gigabit WAN port, fast ethernet data rate make more than 100 end users can acccess into XD-8508HR to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks, widely be used in school, hospital, hotel, office, shipping mall...

High Power for more range and stable signal

Designed in two line Power Amplifier on PCB board, the power can be 1000mW high power, 5dBi MIMO high gain antenna, together with Ceiling mount, greatly increase the wifi range and supply the stable wifi signal for users.

Power over Ethernet

XD-8508HR has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

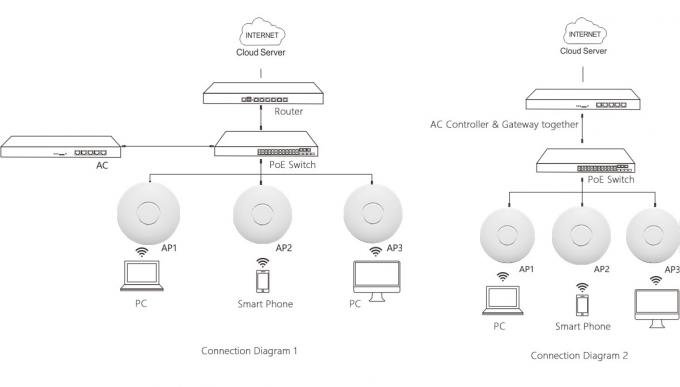

Access Controller System & Cloud Management System

With Access Control System, easily access advanced network settings through PC, like monitor the AP’s working status, change IP address, SSID, Channel, Password, upgrade firmware, backup and restore....

Then work with Cloud Management System, easy to do central and remote management, advertisement and captive portal authentication to make this AP more professional in WiFi Projects.

Spec:

Hardware:
Chipset	RTL8197DN+RTL8812AR+RTL8192ER+RTL8211E
Standard	802.11ac/b/g/n, MIMO technology
Memory	128MB DDR2 RAM
Flash	16MB
Interface	1 * 10/100 /1000Mbps RJ45 WAN Port
	1 * 10/100 Mbps RJ45 LAN Port
	1 * Reset button, press 15 seconds to revert to default setting
Antenna	Build in 5dBi MIMO Antenna
Power consumption	48V PoE<30W
Size	18.8*4.5CM
Weight
RF Data
Frequency	2.4G: 802.11b/g/n 5GHz: 802.11a/n/ac
	2.4GHz,5GHz
Country code	FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN
Modulation	OFDM = BPSK,QPSK, 16-QAM, 64-QAM
	DSSS = DBPSK, DQPSK, CCK
Throughput	1200 Mbps
Firmware Features:
Operation mode		Wireless AP, Gateway, WISP, WiFi Repeater
WAN Type		Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless Security		64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SSID		Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G)
Firewall		DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding
Protocols		IPv4
Others:
Package Contents		1200Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory
System Requirements		Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux
Environment		Operating Temperature: 0~40 ℃(32 ℉~104℉) Storage Temperature: -40~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Management		Firmware GUI , Remote Management, WLAN Controller, Cloud Management System
