AC1300 Dual-Band Wireless Ceiling - Mounted Access Point support Wave2 with IPQ4019 CPU - Model XD5200

AC1300 Dual-Band Wireless Ceiling - Mounted Access Point support Wave2 with IPQ4019 CPU - Model XD5200

    • AC1300 Dual-Band Wireless Ceiling - Mounted Access Point support Wave2 with IPQ4019 CPU - Model XD5200
    • AC1300 Dual-Band Wireless Ceiling - Mounted Access Point support Wave2 with IPQ4019 CPU - Model XD5200
    • AC1300 Dual-Band Wireless Ceiling - Mounted Access Point support Wave2 with IPQ4019 CPU - Model XD5200
    • AC1300 Dual-Band Wireless Ceiling - Mounted Access Point support Wave2 with IPQ4019 CPU - Model XD5200
    • AC1300 Dual-Band Wireless Ceiling - Mounted Access Point support Wave2 with IPQ4019 CPU - Model XD5200
  • AC1300 Dual-Band Wireless Ceiling - Mounted Access Point support Wave2 with IPQ4019 CPU - Model XD5200

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE, FCC, RoHS, TUV
    Model Number: XD5200

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 PCS
    Price: negotiation
    Packaging Details: Carton box + Gift box
    Delivery Time: 5-8 working days
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 2000 PCS per Week
    Contact Now
    Detailed Product Description
    Material: Metal + ABS Color: White
    Install Type: Ceiling Type RAM: 256M
    Flash: 32M POE Power: WAN Port 48V 802.3at POE
    RF Power: ≤26dBm

    1300Mbps 802.11AC Dual Band AP WAVE 2 Technology Support Metal Housing Ceiling Type



    XD5200 is an MU-MIMO 11ac Wi-Fi standard Qualcomm Chipset high power industrial Ceiling Wireless Access Point support Wave2.0.

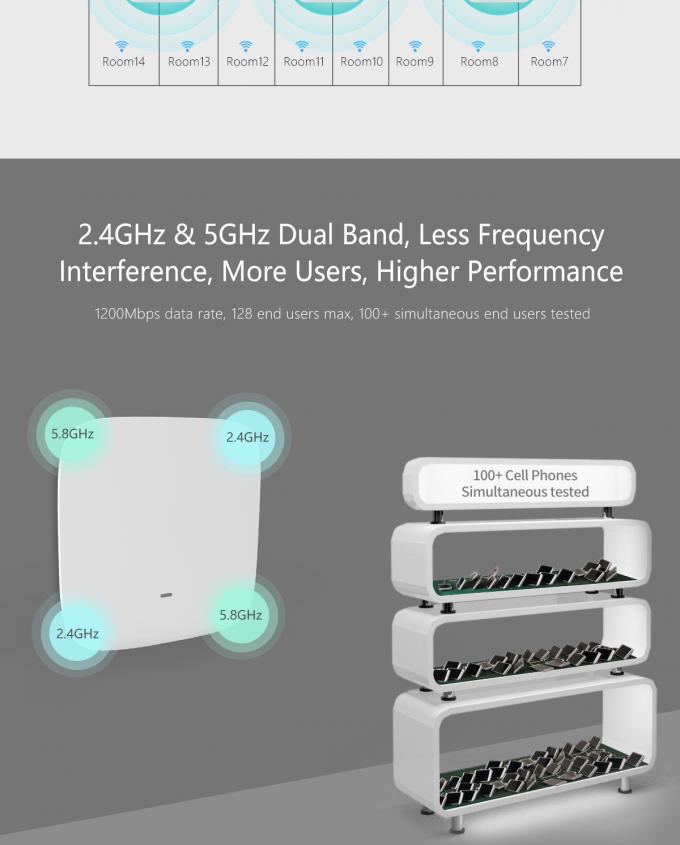

    Combined 1300Mbps Wi-Fi speed over 2 radios: 2.4GHz(400Mbps)+5GHz(900Mbps)), equipped Gigabit WAN & LAN port, fast Ethernet data rate make more than 100 end users can access into XD5200 with Gigabit Ethernet, make them to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks, widely be used in school, hospital, hotel, office, shipping mall...



    Access Controller System & Cloud Management System

    With Access Control System, plug and play, zero configure the AP’s IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....

    What’s more, the AC controller with local authentication function, easy to do advertisement and captive portal authentication like Member/WeChat/SMS login.

    Besides that, administrator can remote manage through AC controller or cloud server at any place/time, simple and cost save in maintenance.

    Main Features:

    * Comply with IEEE 802.11ac/b/g/n, dual band, 1300Mbps Data Rate
    * 1*10/100/1000Mbps WAN Port, 1*10/100/1000Mbps LAN Port, faster Ethernet.
    * 300mW high power, build in 3dBi MIMO antenna, stronger signal strength, more wireless coverage, 32M Flash, 512M DDR3 RAM, more user, more stable
    * Support active IEEE 802.3at 48V PoE standard
    * Support SSID broadcasting, Multi SSID up to 12 (4 SSID in 2.4GHz, 8 SSID in 5GHz)
    * Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
    * With function of build in firewall, IP filter, URL filter and MAC filter

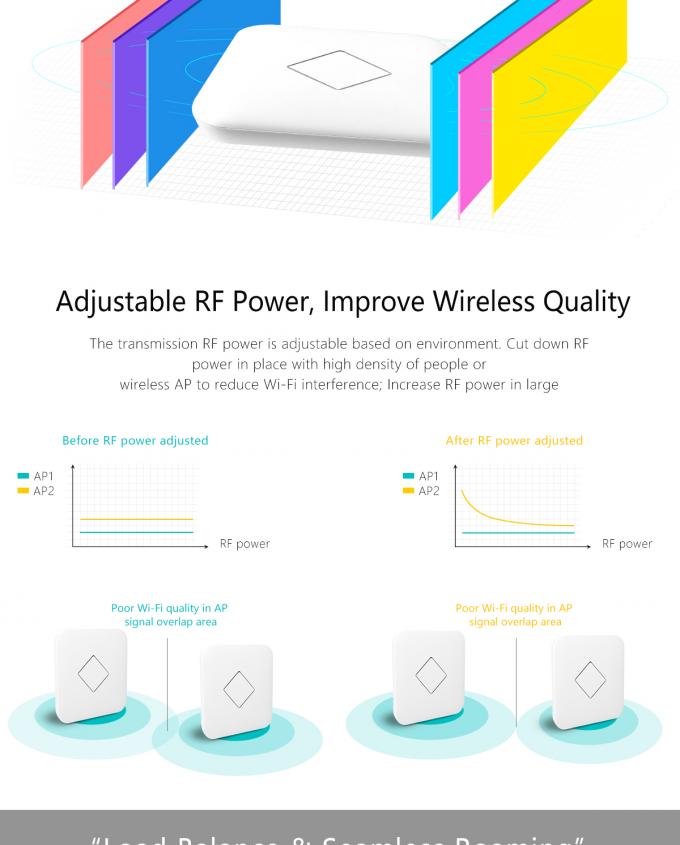

    * Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment
    * Support DDNS, VPN pass through, Port forwarding and DMZ host
    * Support 64/128-bit WEP security, EAP, 128bit WPA (TKIP/AES) security

    Specification:

    Hardware:
    Chipset Qualcomm IPQ4019+QCA8075
    Standard 802.11ac/b/g/n, MIMO technology
    Memory 512MB DDR3 RAM
    Flash 32MB

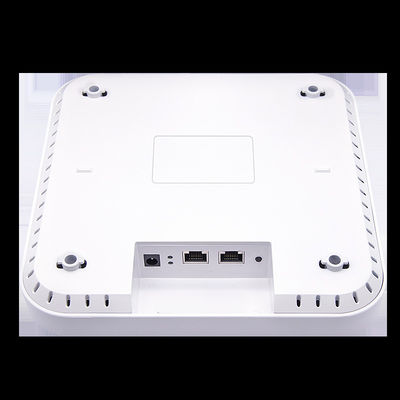

    Interface 1 * 10/100 /1000Mbps RJ45 WAN Port
    1 * 10/100 / 1000Mbps RJ45 LAN Port
    1 * Reset button, press 10 seconds to revert to default setting
    Antenna Build in 3dBi MIMO Antenna
    Power consumption 48V PoE<30W
    Size 198mm X 32mm
    RF Data
    Frequency 2.4G:802.11b/g/n: 2.4GHz – 2.484GHz
    5GHz:802.11a/n/ac MIMO: 5.150GHz~5.850GHz
    Country code FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN
    Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM
    DSSS = DBPSK, DQPSK, CCK
    Throughput 1300Mbps
    2.4G RF Power (IPQ4019) 802.11b 11M 23±2dBm 1M 25±2dBm
    802.11g 54M 22±2dBm 6M 24±2dBm
    802.11n HT20 MCS7 21±2dBm MCS0 23±2dBm
    802.11n HT40 MCS7 21±2dBm MCS0 23±2dBm

    5G RF Power

    (IPQ4019)

    802.11a 54M 19±2dBm 6M 21±2dBm
    802.11n HT20 MCS7 18±2dBm MCS0 20±2dBm
    802.11n HT40 MCS7 18±2dBm MCS0 20±2dBm
    802.11ac HT80 MCS9 17±2dBm MCS0 19±2dBm
    2.4G Receive Sensitivity 802.11b 11M -85dBm 1M -94dBm
    802.11g 54M -72dBm 6M -90dBm
    802.11n HT20 MCS7 -70dBm MCS0 -88dBm
    802.11n HT40 MCS7 -68dBm MCS0 -86dBm
    5G Receive Sensitivity 802.11a 54M -72dBm 6M -90dBm
    802.11n HT20 MCS7 -70dBm MCS0 -88dBm
    802.11n HT40 MCS7 -68dBm MCS0 -86dBm
    802.11ac HT80 MCS9 -58dBm MCS0 -85dBm
    EVM

    2.4G EVM: 802.11b: ≤-10 dB; 802.11g: ≤-25 dB; 802.11n: ≤-28dB

    5G EVM: 802.11a: ≤-25 dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB

    PPM ±20ppm
    Max Users 128
    Firmware Features:
    Operation mode Wireless AP, Gateway, WISP, Wi-Fi Repeater
    WAN Type Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
    Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
    SSID Multiple SSID (4 SSID for 2.4G, 8 SSID for 5.8G)
    Firewall DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter
    IP and MAC Address Binding
    Protocols IPv4
    Others:
    Package Contents

    1300Mbps Dual Band wireless access point

    Ethernet Cable

    Quick Installation Guide

    Setting Accessory

    System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
    Environment

    Operating Temperature: -20~55 ℃

    Limit working temperature: -30~70 ℃

    Storage Temperature: -40~70 ℃

    Humidity: 5%~95% non-condensing

    Management Firmware GUI , Remote Management, WLAN Controller, Cloud Management System
