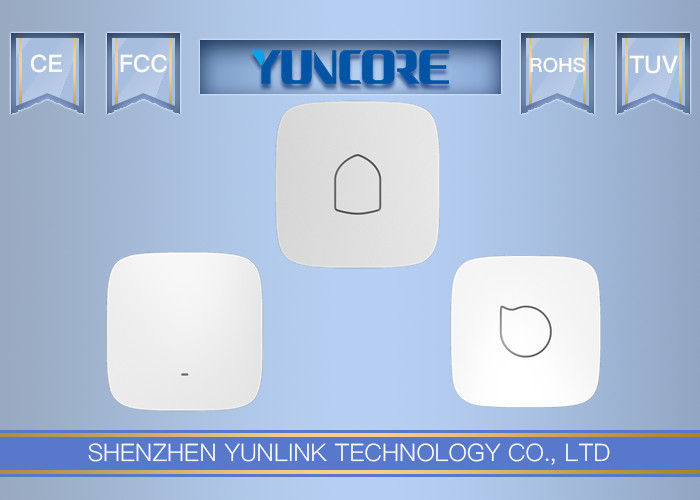

750Mbps 802.11 Ac Access Point , Ajustable RF Power Dual Band Wireless AP

750Mbps 802.11 Ac Access Point , Ajustable RF Power Dual Band Wireless AP

750Mbps 802.11 Ac Access Point , Ajustable RF Power Dual Band Wireless AP

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: A771

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Chipset: QUALCOMM Flash: 16M
RAM: 128M Band: 2.4G + 5.8G
Power: 500mW Port: 1*10/100M WAN, 1*10/100M LAN
High Light:

ceiling access point

,

802.11 ac ap

750Mbps Multi Housing Option Ajustable RF Power Ceiling Mount Design Dual Band Wireless AP



A770/A771 11ac Ceiling Wireless Access Points based on SNMP/CAPWAP Protocol, it is specifically designed to operate in Residential and commercial applications. Comply with IEEE 802.11ac/n/g/b standard, it is 2.4GHz and 5GHz dual radio, with data rate up to 733Mbps(300Mbps in 2.4G, 433Mbps in 5G), enable users to enjoy more stable and faster Ethernet surfing even access into 100+ end users; Tested 101 concurrent end users.



Centralized managed by WLAN control, work with PoE switch, it is plug and play, Zero configuration in large quantity installation. What’s more, it can access into cloud server for remote management, advertisement and captive portal authentication like Facebook Login, Google Login, Member Login and SMS Login.



Applications


This high power, dual radio and high speed wireless access point can be deployed in a wide array of situations for both residential and commercial applications.


Residential Applications:


DC Power available, Adjustable RF Power based on room range; Then support Gateway operation mode, no need more wireless router; What’s more, support cloud server access for remote control, to provide effective wireless connectivity.


Commercial Applications:


Support PoE, High RF Power with 6 hotel room Wi-Fi range, 100+ end users, work as wireless AP and managed by WLAN Controller, A770/A771 public applied in hotel, school, shopping mall in mass installation.



Spec:



Wireless:
Standard 802.11ac/b/g/n, MIMO technology
Speed

433Mbps compatible with 5.8GHz

300Mbps b/g/n for 2.4GHz

Modulation

OFDM = BPSK,QPSK, 16-QAM, 64-QAM

DSSS = DBPSK, DQPSK, CCK

Channel

Ch.1-13 for 2.4GHz

Ch.36-165 for 5.8GHz

Frequency band

2.412GHz-2.472 for 2.4GHz

5.180GHz-5.825Ghz for 5.8GHz

Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
RF Power:
RF Power

2.4G: 11n @MCS7:22±2DB, @MCS0:24±2DB.

11g @54M:23±2DB, @6M:25±2DB.

11b @11M:25±2DB, @1M:27±2DB.

5.8G: 11a @54M:22±2DB, @6M:24±2DB.

11n @MCS7:20±2DB, @MCS0:22±2DB.

11ac @MCS9:19±2DB, @MCS0:21±2DB.

Receive Sensitivity

2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0.

11g: -72dbm@54Mbps, -88dbm@6Mbps.

11b: -85dbm@11Mbps, -94dbm@1Mbps.

5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps.

11n: -70dbm@MCS7, -90dbm@MCS0.

11ac:-60dbm@MCS9, -86dbm@MCS0.

EVM

11n: ≤-28 DB

11g: ≤-25 DB

11b: ≤-10 DB

11a: ≤-25 DB

Hardware:
Chipset Qualcomm QCA9531 + QCA9887
Memory 128MB DDR2 RAM
Flash 16MB
Interface 1 * 10/100Mbps RJ45 WAN Port
1 * 10/100Mbps RJ45 LAN Port
1 * Reset button, press 15 seconds to revert to default setting
Antenna Build in 5dBi MIMO Antenna
Power consumption

PoE: A771: IEEE 802.3af, 15W(Full Load)

A770: 24V Passive PoE, 12W

DC: 12V/1.5A

Software
Standard Version Bandwidth: 20Mhz, 20/40Mhz, 80Mhz
Operation Mode Gateway, Wireless AP, Repeater, WISP
SSID No 4 SSID for 2.4G, 4SSID for 5.8G
Factory Default Setting Yes
Centralized Management by AC Controller Yes
Firewall DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols IPv4
Others:
Package Contents

750Mbps Dual Band wireless access point

Ethernet Cable

Quick Installation Guide

Setting Accessory

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Environment

Operating Temperature: -20~55 ℃

Storage Temperature: -40~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing



Working Diagram:

750Mbps 802.11 Ac Access Point , Ajustable RF Power Dual Band Wireless AP

Installation:

750Mbps 802.11 Ac Access Point , Ajustable RF Power Dual Band Wireless AP
