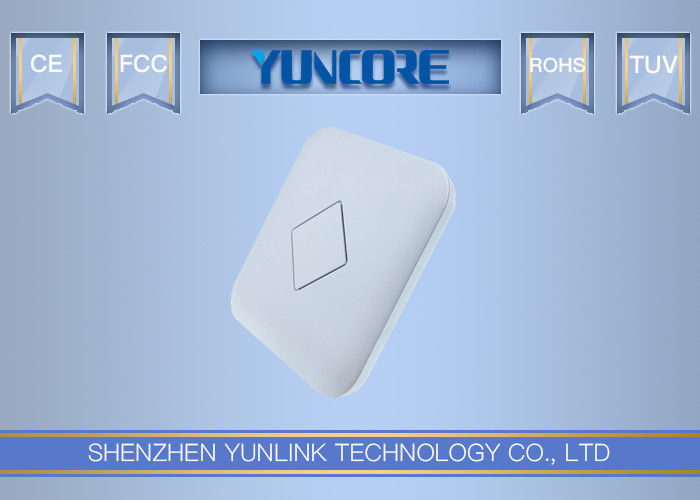

1200Mbps 802.11 Ac Access Point For Multi User With Multiple Input / Output

1200Mbps 802.11 Ac Access Point For Multi User With Multiple Input / Output

1200Mbps 802.11 Ac Access Point For Multi User With Multiple Input / Output

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: XD4200

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: ABS Color: White
Chipset: QCA9563 Flash: 16M
RAM: 128M Band: 2.4G + 5.8G
High Light:

ceiling access point

,

802.11 ac ap

1200Mbps 802.11ac Wave 2 Technology Multi - User Multiple - Input Multiple - Output Ceiling AP



XD4200 is an Qualcomm Chipset high power industrial Ceiling Wireless Access Point with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), support Wave2, equipped Gigabit WAN & LAN port, fast Ethernet data rate make more than 100 end users can access into XD4200 with faster Ethernet, make them to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks, widely be used in school, hospital, hotel, office, shipping mall...



High Power for more range and stable signal


Designed in two line Power Amplifier on PCB board, the power can be 1000mW high power, 5dBi MIMO high gain antenna, together with Ceiling mount, greatly increase the wireless range and supply the stable Wi-Fi signal for users.



Wave 2 Technology


With Wave 2 Technology, it adopt 256QAM modulation, support MU-MIMO (Multi-User Multiple-Input Multiple-Output), 160MHz Frequency, greatly to improved the communication efficiency.



Power over Ethernet


XD4200 has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.



Access Controller System & Cloud Management System


With Access Control System, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore



Spec:

Hardware:
Chipset Qualcomm QCA9563 + QCA9886 +QCA8334
Standard 802.11ac/b/g/n, MIMO technology
Memory 128MB DDR2 RAM
Flash 16MB
Interface 1 * 10/100 /1000Mbps RJ45 WAN Port
1 * 10/100 / 1000Mbps RJ45 LAN Port
1 * Reset button, press 15 seconds to revert to default setting
Antenna Build in 5dBi MIMO Antenna
Power consumption 48V PoE<30W
Size 198mm X 28mm
Weight
RF Data





Frequency

2.4G:802.11b/g/n; 5GHz:802.11a/n/ac
2.4GHz, 5GHz
Country code FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN
Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Throughput 1200Mbps
RF Power

2.4G: 11n @MCS7:26±2DB, @MCS0:28±2DB.

11g @54M:27±2DB, @6M:29±2DB.

11b @11M:28±2DB, @1M:30±2DB.

5.8G: 11a @54M 22±2DB, @6M 25±2DB.

11n @HT20:MCS7 21±2DB, @MCS0 24±2DB.

11ac@HT80:MCS9 19±2DB, @MCS0 22±2DB.

Receive Sensitivity

2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0.

11g: -72dbm@54Mbps, -88dbm@6Mbps.

11b: -85dbm@11Mbps, -94dbm@1Mbps.

5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps.

11n@HT20: -70dbm@MCS7, -90dbm@MCS0.

11ac@HT80:-60dbm@MCS9, -86dbm@MCS0.

EVM

802.11n: ≤-28 DB

802.11g: ≤-25 DB

802.11b: ≤-10 DB

802.11a: ≤-25 DB

PPM ±20ppm
Max Users 128+
Firmware Features:
Operation mode Wireless AP, Gateway, WISP, WiFi Repeater
WAN Type Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SSID Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G)
Firewall DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols IPv4
Others:
Package Contents

1200Mbps Dual Band wireless access point

Ethernet Cable

Quick Installation Guide

Setting Accessory

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Environment

Operating Temperature: -20~55 ℃

Storage Temperature: -40~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing

Management Firmware GUI , Remote Management, WLAN Controller, Cloud Management System
