Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | CPE150SR |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000PCS/ WEEK |
Material: | ABS | Chipset: | QCA9531 |
---|---|---|---|
Flash: | 16M | RAM: | 64M |
WiFi Standard: | IEEE802.11b/g/n | PoE: | 24V Passive |
High Light: | 2.4 ghz wireless cpe,outdoor wifi repeater |
150Mbps data rate Support AP Gateway WISP Repeater WDS 2.4GHz Outdoor CPE

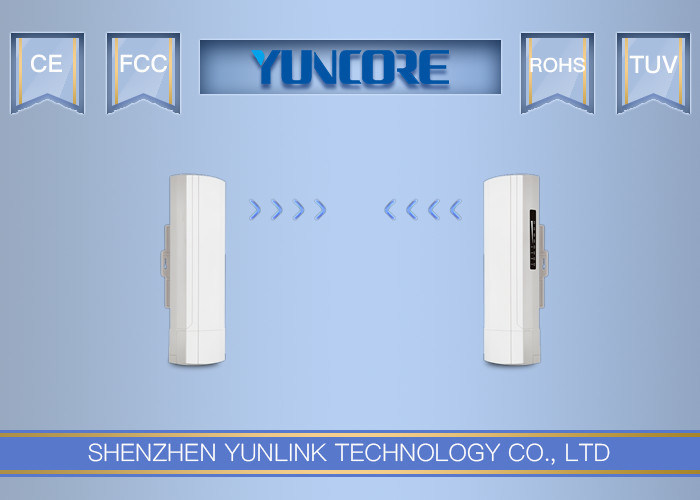

CPE150/CPE-150SR is an 2.4GHz, 150Mbps high power outdoor CPE/AP. Comply with IEEE 802.11b/g/n standard, adopt Qualcomm QCA9531 chipset, 12dBi high gain antenna, 1000mW high power, the transmit/receive wireless distance more than 3000 meters.
Features:
1000mW High Power, More WiFi Range
CPE150SR's RF power can reach to 1000mW, equipped with 14dBi Panel Antenna, PTP WiFi distance up to 2000 meters. Meanwhile, the RF Power is adjustable for different country to comply with different WiFi Standards in different country
Multi operation mode for different application environment.
CPE150SR support multi operation mode such as Gateway, Wireless AP, Repeater, WISP, WDS mode to meet with multi application for different environment.
PoE Power and DC Power together make installation flexibility
CPE150SR support 24V passive PoE for some areas where power outlets are not readily available; It support DC power supply for some area near to power socket, flexibility in installation
Excellent Outdoor Weatherproof and Lighting Protection
With an outdoor waterproof and dustproof enclosure,buidling in lighting protection IC, CPE150 can be used in various weather conditions for stable performance
Spec:
Specification: |
|
Hardware: | |
Chipset | Qualcomm QCA9531 |
Wireless | 802.11N, 2T2R 150M MIMO Technology |
Memory | 64MB RAM (128MB available by extra cost) |
Flash | 16MB Flash |
Interface | 2 * 10/100 Mbps RJ45 Port, support 12~24V PoE |
1 * Reset Button | |
1 * DC Jack, 12V/1A | |
Antenna | 12dBi Panel Antenna |
LED Light | POWER WIFI WAN LAN |
Size | 230X75X40MM |
Power | 12V(POE 24V)/1A;110V/220V |
RF Data | |
RF Data | 802.11b/g/n: |
2.312GHz to 2.4835GHz | |
Korea, Japan, ETSI, FCC, Debug | |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
DSSS = DBPSK, DQPSK, CCK | |
Data Rate | 150 Mbps |
Receive Sensitivity |
802.11n:25±2 DB 802.11g:26±2 DB 802.11b:27±2 DB . |
RF Output Power |
802.11n: -88dbm@MCS0,-65dbm@MCS7 802.11g: -88dbm@6Mbps;-70dbm@54Mbps 802.11b: -94dbm@1Mbps; -80dbm@11Mbps |
EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
PPM | ±20ppm |
End Users | 64 |
Working diagram:
