Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | XD3200 |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000 PCS/ WEEK |
Material: | ABS | Color: | White |
---|---|---|---|
Chipset: | QCA9563 | Flash: | 16M |
RAM: | 128M | Band: | 2.4G + 5.8G |
High Light: | wireless ac access point,ceiling access point |
IEEE802.3at 48V PoE Support ABS Housing OEM LOGO Support 802.11ac Dual Band WiFi AP

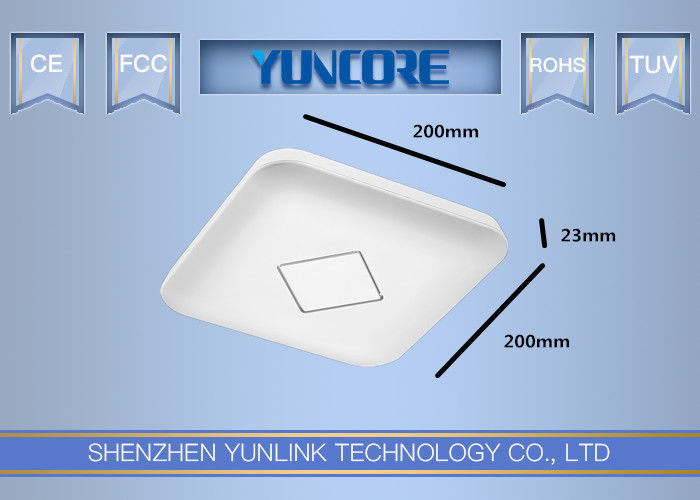

XD3200 Ceiling Wireless Access Points is specifically designed to operate in set-ups for both Residential and commercial applications. Designed with Atheros Chipset and 1W RF power to assure full WiFi coverage, whether in old buildings or modern structures. Comply with the next generation 802.11ac Wi-Fi standard, working on 2.4GHz (300M) and 5GHz(900M) simultaneously, wireless speed up to 1200 Mbps, together with Gigabit Ethernet port, enabling users to enjoy high speed surfing, but also allows for very stable connectivity of control systems and the possibility of bridging and providing access simultaneously.
Designed with the End-user in mind
The AP is designed with the end-user in mind. The very inconspicuous exterior makes sure it can be installed in most residential and commercial spaces.
Power over Ethernet
The XD3200 can be powered fully with PoE (Power over Ethernet), avoiding the need for power cabling throughout the building.
Applications
This high power, dual radio and high speed wireless access point can be deployed in a wide array of situations for both residential and commercial applications.
Residential Applications:
Up to 50 meters wifi range, 1PC XD3200 is full wifi range for residential work in Gateway operation mode, saved wireless router, wifi repeater, to provide cost effective connectivity.
Commercial Applications:
Up to 6 hotel room wifi range, or 100+ end users, XD3200 public applicated in hotel, school, shopping mall. Work with AC controller, easy to do central managment and data configuration, together with advertisement and portal authnetication.
SPECIFICATION
Wireless | |
Standard |
802.11ac/b/g/n, MIMO technology |
Speed |
900Mbps compatible with 5.8GHz
300Mbps b/g/n for 2.4GHz |
Modulation |
OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK |
Channel |
Ch.1-13 for 2.4GHz
Ch.36-165 for 5.8GHz |
Frequency band |
2.412Ghz-2.472 for 2.4GHz
5.180Ghz-5.825Ghz for 5.8GHz |
Hareware |
|
Chipset |
Atheros QCA9563 + QCA9882 +QCA8334 |
Memory |
128MB DDR2 RAM |
Flash |
16MB |
Interface |
1 * 10/100 /1000Mbps RJ45 WAN Port 1 * 10/100 / 1000Mbps RJ45 LAN Port 1 * Reset button, press 15 seconds to revert to default setting |
Antenna |
Build in 5dBi MIMO Antenna |
Power consumption |
30W(Full Load) |
Software |
|
Standard Version |
Bandwidth: 20Mhz, 20/40Mhz, 80Mhz |
Operation Mode |
Gateway, Wireless AP, Repeater, WISP |
SSID No |
4 SSID for 2.4G, 4SSID for 5.8G |
Factory Default Setting |
Yes |
Centralized Management by software |
Yes |
Firewall |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
Protocols |
IPv4 |
