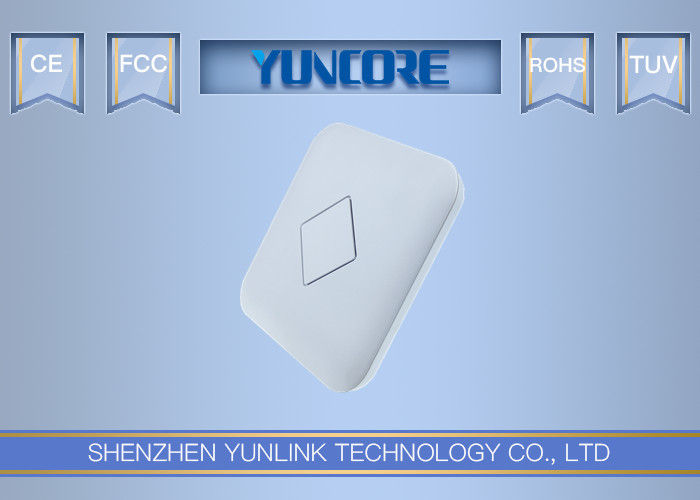

1200Mbps Wall Mounted 11ac Access Point High Power With Realtek Chipset

Product Details:

Place of Origin:	China
Brand Name:	Yuncore
Certification:	CE,FCC,ROHS
Model Number:	XD1200

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	Giftbox + Carton box
Delivery Time:	4 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS/ WEEK

Contact Now

Detailed Product Description

Material:	ABS	Color:	White
Chipset:	Realtek	Flash:	16M
RAM:	128M	Band:	2.4G + 5.8G
High Light:	wireless ac access point , ceiling access point

1200Mbps Wall Mounted High Power with Realtek Chipset 11ac Dual Band Wireless Access Point

XD1200 is an high power industrial Ceiling Wireless Access Point with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equiped Gigabit WAN port, fast ethernet data rate make more than 100 end users can acccess into SR1200 to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks, widely be used in school, hospital, hotel, office, shipping mall...

High Power for more range and stable signal

Designed in two line Power Amplifier on PCB board, the power can be 1000mW high power, 5dBi MIMO high gain antenna, together with Ceiling mount, greatly increase the wifi range and supply the stable wifi signal for users.

Power over Ethernet

XD1200 has integrated passive / IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

Access Controller System & Cloud Management System

With Access Control System, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....

Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this AP more professional in WiFi Projects.

SPECIFICATION

Hardware:
Chipset	RTL8197DN+RTL8812AR+RTL8192ER+RTL8211E
Standard	802.11ac/b/g/n, MIMO technology
Memory	128MB DDR2 RAM
Flash	16MB
Interface	1 * 10/100 /1000Mbps RJ45 WAN Port 1 * 10/100 Mbps RJ45 LAN Port 1 * Reset button, press 15 seconds to revert to default setting
Antenna	Build in 5dBi MIMO Antenna
Power consumption	<30W
Size	198mm X 28mm

RF Data
Frequency	2.4G:802.11b/g/n: 5GHz:802.11a/n/ac 2.4GHz,5GHz
Country code	FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN
Modulation	OFDM = BPSK,QPSK, 16-QAM, 64-QAM DSSS = DBPSK, DQPSK, CCK
Firmware Features:
Operation mode	Wireless AP, Gateway, WISP, WiFi Repeater
WAN Type	Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless Security	64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SSID	Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G)
Firewall	DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding
Protocols	IPv4
Others:
Package Contents	1200Mbps Dual Band wireless access point Ethernet Cable Setting Accessory
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature: 0~40 ℃(32 ℉~104℉) Storage Temperature: -40~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Management	Firmware GUI , Remote Management, WLAN Controller, Cloud Management System
