FE Port 450Mbps Comply 5.8 GHz Outdoor CPE with IEEE802.11 AC Standard

FE Port 450Mbps Comply 5.8 GHz Outdoor CPE with IEEE802.11 AC Standard

FE Port 450Mbps Comply 5.8 GHz Outdoor CPE with IEEE802.11 AC Standard

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: CPE450

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: ABS Chipset: Realtek RTL8881AN
Flash: 8M RAM: 64M
Port: 1 * 10/100Mbps WAN, 1 * 10/100Mbps LAN Antenna: 15 DBi Panel Antenna
Standard: IEEE802.11ac/a Frequency: 5150~5825MHz

450Mbps Comply with IEEE802.11 ac a standard with FE Port 5.8G 11AC Outdoor Wireless CPE



CPE450 is 5.8G Outdoor CPE with water-proof and dust-proof case, comply with IEEE 802.11ac/a standard, 450Mbps data rate ensures high speed internet access. With high power design, built in 12dBi high gain panel Antenna,greatly increase the WiFi range to 2KMs. Meanwhile, integrated passive Power over Ethernet (PoE), CPE450 can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure and lower cost; Work with AC Controller & Cloud Management System for centralized and remote management, easy configure and maintance in mass installation.


Features:


More RF Power, More WiFi Range


More RF Power up to 28dBm, equipped with 12dBi Panel Antenna, PTP WiFi distance up to 2000 meters. Meanwhile, the RF Power is adjustable for different country to comply with different WiFi Standards.


11ac, 5.8G, 450Mbps Wireless Speed


Comply with IEEE 802.11ac/a standard,5.8G, 450Mbps data rate for more smoothly data transmission
Multi operation mode for different environment


CPE450 support multi operation mode such as Gateway, Wireless AP, Repeater, WISP, WDS mode to meet with multi application for different environment.


PoE Power and DC Power together make installation flexibility


CPE450 Support 24V passive PoE for some areas where power outlets are not readily available; It support DC power supply for some area near to power socket, flexibility in installation


Excellent Outdoor Weatherproof and Lighting Protection


With an outdoor waterproof and dustproof enclosure,buidling in lighting protection IC, CPE450 can be used in various weather conditions for stable performance



Spec:



Hardware:
Chipset RTL8881AN
Standard 802.11ac/a/n
Memory 64MB DDR2 RAM
Flash 8MB
Interface 1 * 10/100Mbps RJ45 WAN Port
1 * WDS Switch Button for WDS Connection
1 * DC Injector
1 * 10/100Mbps RJ45 LAN Port
1 * Reset button, press 15 seconds to revert to default setting
Antenna Build in 12dBi MIMO Panel Antenna
Power consumption 24V PoE<17W

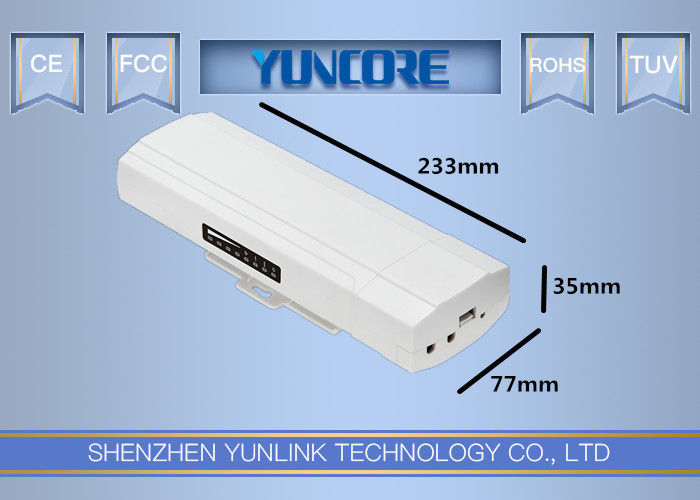

Size L 233mm, W: 77mm, H: 35 mm
RF Data





Frequency

5GHz: 802.11a/n/ac
5GHz
Country code FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN
Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Throughput 450Mbps
RF Power

802.11a:54M 23±2DB,6M 26±2DB.

802.11n HT20:MCS7 23±2DB, MCS0 26±2DB.

802.11n HT40:MCS7 22±2DB, MCS0 25±2DB.

802.11ac HT80:MCS9 20±2DB, MCS0 23±2DB.

Receive Sensitivity

802.11a: -72dbm@54Mbps; -90dbm@6Mbps.

802.11n HT20: -70dbm@MCS7, -90dbm@MCS0 .

802.11n HT40: -66dbm@MCS7, -90dbm@MCS0 .

802.11ac HT80:-60dbm@MCS9, -86dbm@MCS0 .

EVM

802.11a: ≤-25 DB

802.11n: ≤-28 DB

802.11ac: ≤-28 DB

PPM ±20ppm
Firmware Features:
Operation mode Wireless AP, Gateway, WISP, WiFi Repeater
WAN Type Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SSID Multiple SSID up to 4
Firewall DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols IPv4
Others:
Package Contents

450Mbps Outdoor CPE

Ethernet Cable

Quick Installation Guide

Setting Accessory

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Environment

Operating Temperature: -40~55 ℃

Storage Temperature: -40~70 ℃
Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Management Firmware GUI ,Remote Management, WLAN Controller, Cloud Management System



Working Diagram:

FE Port 450Mbps Comply 5.8 GHz Outdoor CPE with IEEE802.11 AC Standard
