IP65 Waterproof 802.11AC / A Outdoor Wireless Bridge 500mW Ajustable High Power

IP65 Waterproof 802.11AC / A Outdoor Wireless Bridge 500mW Ajustable High Power

IP65 Waterproof 802.11AC / A Outdoor Wireless Bridge 500mW Ajustable High Power

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: CPE890SR

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: ABS Chipset: QCA9563
Flash: 16M RAM: 128M
Power: 500mW Antenna: 18 DBi Panel Antenna

900Mbps 500mW Ajustable High Power IP65 Waterproof 802.11ac / a Outdoor Wireless Bridge



CPE890SR is an high power industrial 5G outdoor CPE with the next generation 802.11ac Wi-Fi standard, Qualcomm Chipset, combined 900Mbps high speed in 5G, equipped Gigabit WAN port, 3 times Ethernet data rate faster than CPE880, it make more than 60 end users access into it and enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.



900Mbps Data Rate & Gigabit WAN/LAN Ports


CPE890SR features 802.11ac Wi-Fi and 2*2 MIMO technology, 900Mbps wireless speed. Equipped with Gigabit Ethernet port ensures high speed internet access and more end users access.



10KM PTP/PTMP Distance


Designed in two line Power Amplifier on PCB board, the power can be 500mW high power, 18dBi MIMO high gain panel antenna, greatly increase the wifi range to 10KM distance, then supply the stable wifi signal for users.



Power over Ethernet


CPE890SR has integrated passive Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.



Multiple operation mode, Press WDS Switch button to do PTP/PTMP Connection


CPE890SR support Gateway, WISP, Wireless AP, WiFi Repeater, WDS operation mode, it is widely used in WiFi Bridge Connection, WISP Connection and Wireless Security;


CPE890SR with WDS Switch button, press it to do the PTP/PTMP connection, very easy, no need to access into GUI.



Main Features:



Comply with IEEE 802.11ac/a/n, 5G,900Mbps Data Rate
1*10/100/1000Mbps WAN Port, 1*10/100/1000Mbps LAN Port
500mW high power, build in 18dBi MIMO panel antenna, stronger signal strength, more wireless coverage
Support passive PoE, 24V
Support SSID broadcasting, Muiti SSID up to 4, then support tag VLAN based on SSID.
Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WISP, WDS operation mode
With function of build in firewall, IP filter, URL filter and MAC filter
Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment
Support DDNS, VPN pass through, Port forwarding and DMZ host
Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security



Spec:



Hardware:
Chipset Qualcomm QCA9563
Standard 802.11ac/a/n, MIMO technology
Memory 128MB DDR2 RAM
Flash 16MB
Interface 1 * 10/100/1000Mbps RJ45 WAN Port
1 * 10/100/1000Mbps RJ45 LAN Port
1 * WDS switch button, press it to do WDS PTE/PTMP connection
1 * Reset button, press 15 seconds to revert to default setting
Antenna Build in 18dBi MIMO Panel Antenna
Power consumption 24V PoE, <8W

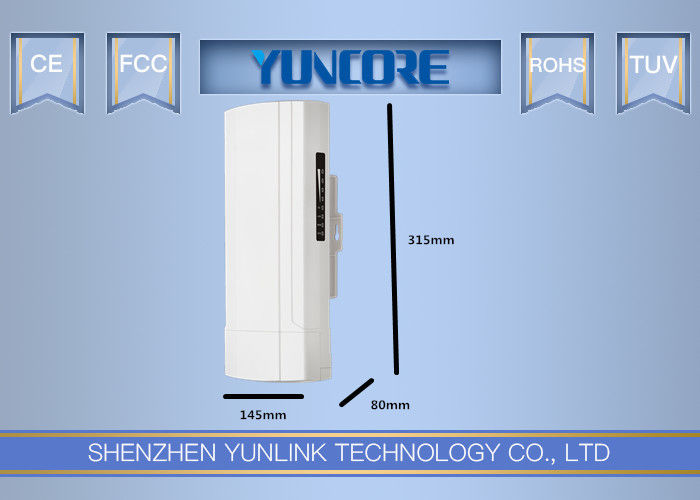

Size 315mm * 145 mm * 80mm
RF Data





Frequency

5GHz: 802.11a/ac
5GHz: 5180~5825MHz
Throughput 900 Mbps
Country code FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN
Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Receive Sensitivity& RF Power
RF Power

802.11a:54M 23±2DB,6M 26±2DB.

802.11n HT20:MCS7 23±2DB, MCS0 26±2DB.

802.11n HT40:MCS7 22±2DB, MCS0 25±2DB.

802.11ac HT80:MCS9 20±2DB, MCS0 23±2DB.

Receive Sensitivity

802.11a: -72dbm@54Mbps; -90dbm@6Mbps.

802.11n HT20: -70dbm@MCS7, -90dbm@MCS0 .

802.11n HT40: -66dbm@MCS7, -90dbm@MCS0 .

802.11ac HT80:-60dbm@MCS9, -86dbm@MCS0 .

EVM

802.11n: ≤-28 DB

802.11a: ≤-25 DB

Firmware Features:
Operation mode Wireless AP, Gateway, WISP, WiFi Repeater, WDS
WAN Type Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SSID Multiple SSID up to 4
Firewall DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols IPv4
Others:
Package Contents

900Mbps Dual Band wireless access point

Ethernet Cable

Quick Installation Guide

Setting Accessory

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Environment

Operating Temperature: -44~55 ℃

Storage Temperature: -40~70 ℃
Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing

Management Firmware GUI ,Remote Management, WLAN Controller, Cloud Management System

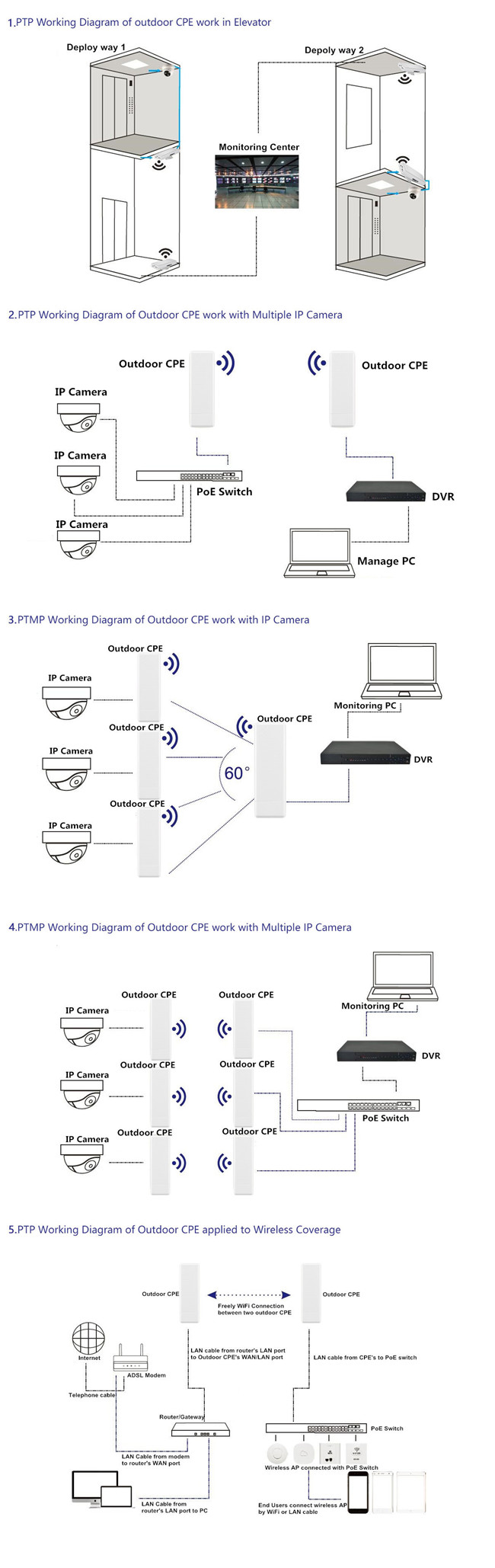

Working Diagram:

IP65 Waterproof 802.11AC / A Outdoor Wireless Bridge 500mW Ajustable High Power
