5.8GHz Outdoor Wireless Transmitter / Receiver 2KM Long Distance AR9344 Chipset

5.8GHz Outdoor Wireless Transmitter / Receiver 2KM Long Distance AR9344 Chipset

5.8GHz Outdoor Wireless Transmitter / Receiver 2KM Long Distance AR9344 Chipset

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: CPE180

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: ABS Chipset: AR9344
Flash: 8M RAM: 64M
Port: 1 * 10/100Mbps WAN, 1 * 10/100Mbps LAN Antenna: 14 DBi Panel Antenna
Standard: IEEE802.11a/n Frequency: 5150~5825MHz

2KM Long Distance 5.8GHz Outdoor Wireless Transmitter / Receiver Work as Repeater AP Gateway



CPE180 is an high power 5.8G outdoor CPE/WiFi Bridge with 300Mbps data rate. Comply with IEEE802.11a/n standard, Atheros chipset, it supply you a stable and freely wifi networking. What’s more, with 14dBi high gain antenna, 300mW high power output power, the wifi distance more than 2000 meters.

CPE180 with wonderful RF performance, receive sensitivity can be -92dBm, then comply with 5G standard, improved hardware wifi interference, it is best choice for video and security industrial.



Meantime, it support Power over Ethernet, support passive PoE, easy in setup even no power socket nearby. With LED light show signal strength, easy to find a suitable place for outdoor CPE, save much human work and cost. With water proof case, it is best choice for outdoor wifi projects.



Features:



ABS waterproof, dust proof and sunscreen shell, temperature adaptive and board protective


CPE180 with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 55℃. Suit for any country.


300Mbps high speed, Atheros industrial chipset, wider application


CPE180 comply with IEEE 802.11a/n standard, 300Mbps high speed, with Atheros industrial solution, it is a wifi bridge with low power consumption, strong security. With PTP, PTMP, bridge operation mode, widely be used in voice, video, data transmission in long range wireless monitor industrial.



300mW High Power, 14dBi High Gain Antenna, Long Range wifi Device in market.


CPE180 with external power amplifier, 300mW true power, 14dBi high gain antenna, the wifi range is more than 2000 meters, it is the device with very stable performance in long range, but competitive in price.



Spec:



Standard IEEE802.3, IEEE 802.11n, IEEE 802.11a
Chipset Atheros AR9344
Frequency 5020~6100MHz,
Channel CH4~CH220
Modulation OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK
Data Rate

11n: up to 300Mbps(dynamic)

11a: up to 54Mbps(dynamic)

Protocol CSMA/CA,CSMA/CD,TCP/IP,ICMP,NAT,PPPoE, DHCP , Wired static , Wifi Client , UDP, DDNS,
Operation Mode AP, Gateway, Bridge, WISP, WDS
Security

64/128bit WEP

WPA(AES,TKIP with IEEE 802.1x)

WPA2(AES,TKIPwith IEEE 802.1x)

WPS

RF Output Power

802.11n:MCS7 19±2 DB, MCS0 22±2DB.

802.11a:54M 20±2DB,6M 23±2DB.

Receive Sensitivity

802.11n: -68dbm@MCS7; -88dbm@MCS7;

802.11a: -72dbm@54Mbps; -92dbm@6Mbps;

Antenna 14dBi MIMO Panel antenna

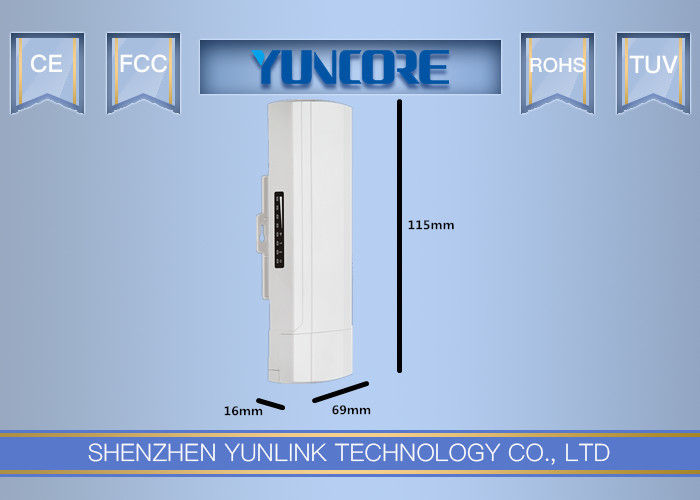

Size(mm) 115mm * 69 mm * 1.6 mm
Working Temperature -40°C ~ 55°C
Storage Temperature -40°C ~ 70°C
Humidity 10% ~ 90% (Non-condensing)
Interface

1 * RJ-45 WAN Port

1 * RJ-45 LAN Port

1 * Reset Button

1 * DC Jack

1 * WDS Switch Button, press to do WDS connection

Power Output: DC12V(POE 24V/0.5A), 1A; Input: 110V/220V
LED Light Power, WiFi, WAN, LAN,Signal Strength



Working Diagram:

5.8GHz Outdoor Wireless Transmitter / Receiver 2KM Long Distance AR9344 Chipset
