| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | CPE880 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | ABS | Chipset: | AR9344 |
|---|---|---|---|
| Flash: | 8M | RAM: | 64M |
| Port: | 1 * 10/100Mbps WAN, 1 * 10/100Mbps LAN | Antenna: | 15 DBi Panel Antenna |
| Standard: | IEEE802.11a/n | Frequency: | 5150~5825MHz |
| High Light: | wireless outdoor cpe,5.8 ghz wireless bridge |
||

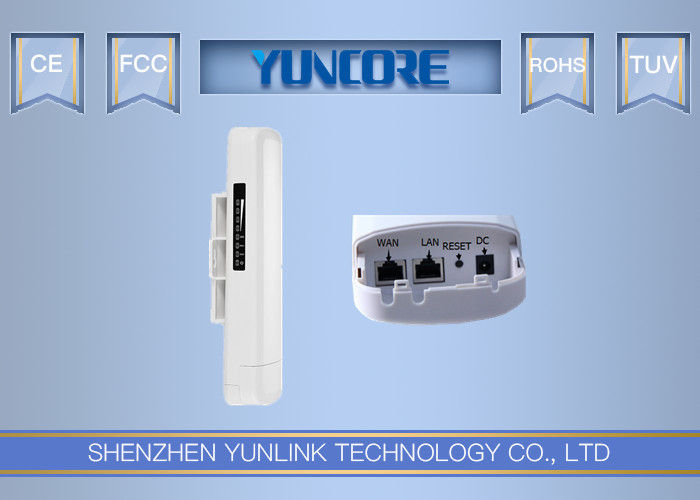

300Mbps PTP 5KM Distance 5.8G IEEE802.11a / n Outdoor WiFi Repeater / Bridge / Gateway
CPE-880 is an 5.8G outdoor CPE/Wi-Fi Bridge with 300Mbps data rate. Comply with IEEE802.11a/n standard, Atheros chipset, it supply you a stable and freely Wi-Fi networking. What’s more, with 15dBi high gain antenna, 30dBm high power output power, the Wi-Fi distance more than 5000 meters.
CPE-880 with wonderful RF performance, receive sensitivity can be -90dBm, then data rate can be 300Mbps, improved hardware Wi-Fi interference, it is best choice for video and security industrial.
Meantime, it support Power over Ethernet, support 24V passive PoE, easy in setup even no power socket nearby. With LED light show signal strength, easy to find a suitable place for outdoor CPE, save much human work and cost. With water proof case, it is best choice for outdoor Wi-Fi projects.
Features:
ABS weather-proof shell, temperature adaptive and board protective .
CPE-880 with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Then PCB board with ESD protection, adaptive to various environment, the working temperature can be normal at -40℃ to 55℃. Suit for any country.
300Mbps high speed, Atheros industrial chipset, wider application
CPE-880 comply with IEEE 802.11a/n standard, 300Mbps high speed, with Atheros industrial solution, it is a Wi-Fi bridge with low power consumption, strong security. With PTP, PTMP, bridge operation mode, widely be used in voice, video, data transmission in long range wireless monitor industrial.
500mW High Power, 15dBi High Gain Antenna, Long Range Wi-Fi Device in market.
CPE-880 with external power amplifier,500mW true power, 15dBi high gain antenna, the Wi-Fi range is more than 3000 meter, it is the device with most stable performance in long range, max load users, longest Wi-Fi range.
5GHz full frequency, more channels, lower latency, higher stability
CPE-880 with full frequency of 5020~6100MHz, more than 200 channels available, it avoid the same frequency interference problem, full meet with data transmission in fast speed, low delay, high stability requirement in wireless security or data transmission.
Multiple operation mode: Wireless AP, Wireless Router, Wi-Fi Repeater, WISP, WDS
It support Wireless AP, Gateway, WISP, Wireless Bridge, WDS operation mode, effective solution for PTP, PTMP application and outdoor long range Wi-Fi coverage application.What’s more, there is WDS button on the case, easy to do PTP,PTMP connection by press the WDS button and reset button, no need to access into product GUI.
Support Power over Ethernet, cost save
The device has integrated Power over Ethernet (PoE) for easy installation and lower cost, with 24V/48V PoE, it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure
Spec:
| Standard | IEEE802.3, IEEE 802.11n, IEEE 802.11a |
| Frequency | 5.020 - 6.1000 GHz |
| Channel | CH4 ~CH220 |
| Modulation | OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK |
| Data Rate |
11n: up to 300Mbps(dynamic) 11a: up to 54Mbps(dynamic) |
| Protocol | CSMA/CA,CSMA/CD,TCP/IP,ICMP,NAT,PPPoE, DHCP , Wired static , Wi-Fi Client , UDP, DDNS, |
| Operation Mode | AP, Gateway, Bridge, WISP |
| Security |
64/128bit WEP WPA(AES,TKIP with IEEE 802.1x) WPA2(AES,TKIPwith IEEE 802.1x) WPS |
| RF Output Power |
802.11a:54M 20±2 DB,6M 23±2 DB. 802.11n HT20:MCS7 19±2 DB, MCS0 22±2 DB. 802.11n HT40:MCS7 19±2 DB, MCS0 22±2 DB. |
| Receive Sensitivity |
802.11a: -70dbm@ 54Mbps; -89dbm@ 6Mbps. 802.11n HT20: -65dbm@MCS7, -83dbm@MCS0 . 802.11n HT40: -62dbm@MCS7, -80dbm@MCS0 . |
| Antenna | 15dBi MIMO Panel antenna |
| Size(mm) | L: 257mm, W: 87mm, H: 38 mm |
| Weight | 327g |
| Working Temperature | -40°C ~ 55°C |
| Storage Temperature | -40°C ~ 70°C |
| Humidity | 10% ~ 90% (Non-condensing) |
| Interface |
1 * RJ-45 WAN Port 1 * RJ-45 LAN Port 1 * Reset Button 1 * DC Jack 1 * WDS Switch Button |
| Power | Output: DC12V(POE 24V), 1A; Input: 110V/220V |
| LED Light | Power, Wi-Fi, WAN, LAN,Signal Strength |

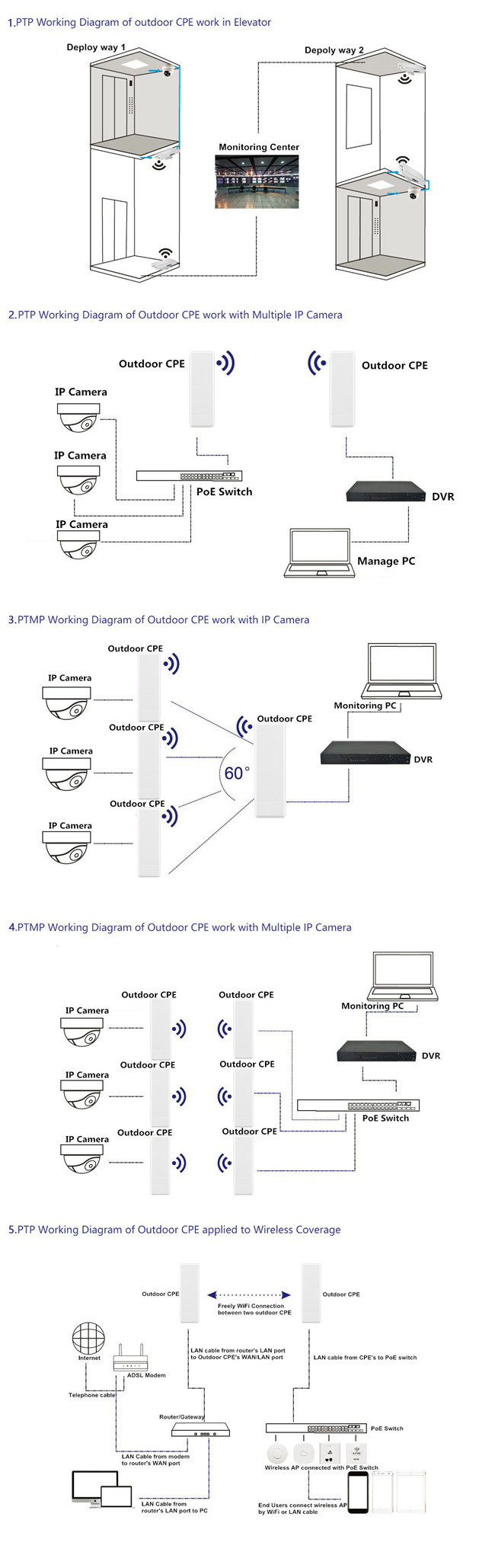

Working Diagram:
