| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | CPE450 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | ABS | Chipset: | Realtek RTL8881AN |
|---|---|---|---|
| Flash: | 8M | RAM: | 64M |
| Port: | 1 * 10/100Mbps WAN, 1 * 10/100Mbps LAN | Antenna: | 15 DBi Panel Antenna |
| Standard: | IEEE802.11ac/a | Frequency: | 5150~5825MHz |
| High Light: | outdoor cpe device,5.8 ghz wireless bridge |
||

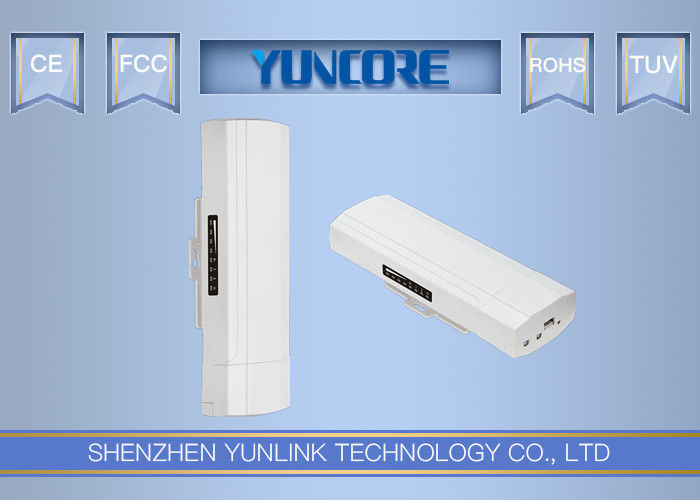

450Mbps Point to Point 5KM Distance 5.8G 11AC Outdoor Wireless CPE / Wireless Client
CPE450 is an high power industrial 5G outdoor CPE with the next generation 802.11ac Wi-Fi standard, combined 450Mbps high speed in 5G, Ethernet data rate faster than CPE880, it make more than 50+ end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
450Mbps Data Rate
CPE450 features 802.11ac Wi-Fi and MIMO technology, 450Mbps wireless speed ensures high speed internet access and more end users access.
High Power and High Gain Antenna for more range
Designed in Power Amplifier on PCB board, the power can be 800mW high power, 12dBi MIMO high gain antenna, greatly increase the Wi-Fi range to 3KMs distance and supply the stable Wi-Fi signal for users.
Power over Ethernet
CPE450 has integrated passive Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Access Controller System & Cloud Management System
With Access Control System under AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....
Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this AP more professional in WiFi Projects.
Main Features:
Comply with IEEE 802.11ac/a/n, 5G,450Mbps Data Rate
1 10/100/100Mbps WAN Port,1 10/100Mbps LAN Port
800mW high power, build in 12dBi MIMO panel antenna, stronger signal strength, more wireless coverage
Support passive PoE
Support SSID broadcasting, Multi SSID up to 4
Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WISP operation mode
With function of build in firewall, IP filter, URL filter and MAC filter
Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
Support DDNS, VPN pass through, Port forwarding and DMZ host
Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
Spec:
| Hardware: | |
| Chipset | RTL8881AN |
| Standard | 802.11ac/a/n |
| Memory | 64MB DDR2 RAM |
| Flash | 8MB |
| Interface | 1 * 10/100Mbps RJ45 WAN Port |
| 1 * WDS Switch Button for WDS Connection | |
| 1 * DC Injector | |
| 1 * 10/100Mbps RJ45 LAN Port | |
| 1 * Reset button, press 15 seconds to revert to default setting | |
| Antenna | Build in 12dBi MIMO Panel Antenna |
| Power consumption | 24V PoE<17W |
| Size | L 233mm, W: 77mm, H: 35 mm |
| RF Data | |
|
Frequency |
5GHz: 802.11a/n/ac |
| 5GHz | |
| Country code | FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Throughput | 450Mbps |
| RF Power |
802.11a:54M 23±2DB,6M 26±2DB. 802.11n HT20:MCS7 23±2DB, MCS0 26±2DB. 802.11n HT40:MCS7 22±2DB, MCS0 25±2DB. 802.11ac HT80:MCS9 20±2DB, MCS0 23±2DB. |
| Receive Sensitivity |
802.11a: -72dbm@54Mbps; -90dbm@6Mbps. 802.11n HT20: -70dbm@MCS7, -90dbm@MCS0 . 802.11n HT40: -66dbm@MCS7, -90dbm@MCS0 . 802.11ac HT80:-60dbm@MCS9, -86dbm@MCS0 . |
| EVM |
802.11a: ≤-25 DB 802.11n: ≤-28 DB 802.11ac: ≤-28 DB |
| PPM | ±20ppm |
| Firmware Features: | |
| Operation mode | Wireless AP, Gateway, WISP, WiFi Repeater |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| SSID | Multiple SSID up to 4 |
| Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
| Protocols | IPv4 |
| Others: | |
| Package Contents |
450Mbps Outdoor CPE Ethernet Cable Quick Installation Guide Setting Accessory |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: -40~55 ℃ Storage Temperature: -40~70 ℃ |
| Management | Firmware GUI ,Remote Management, WLAN Controller, Cloud Management System |
Working Diagram:
