Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | FIT-MB525 |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000 PCS/ WEEK |
Material: | ABS | Chipset: | QCA9531 |
---|---|---|---|
Band: | 2.4G 300Mbps | Interface: | 1* 10/100M RJ45 Port, 1* RJ11 Port, 1* Switch |
Color: | White | Working Mode: | AP, Repeater, Gateway |
High Light: | in wall wifi access point,wall plate wireless access point |

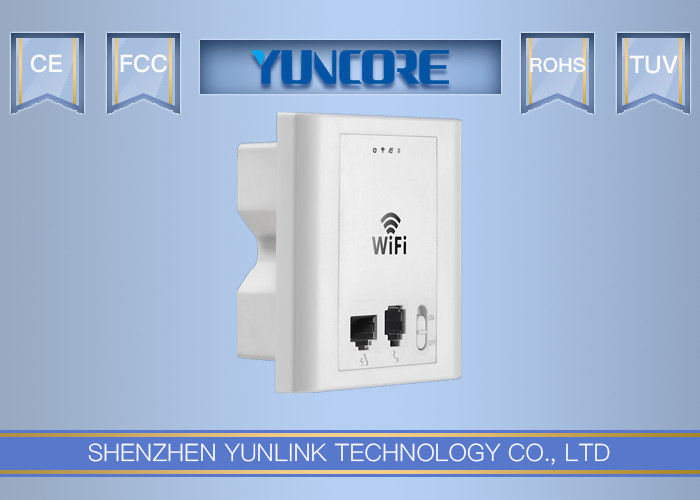

CAPWAP 802.3af 48V Passive PoE In Wall Wireless FIT AP for Home WiFi Coverage
Description
It is an in wall AP with Qualcomm chipset, 300Mbps data rate, designed for hotel mainly to provide guests and roomers secure Internet access and supply telephone function in their hotel room, guest room, living room and lobby.
It support 802.3af PoE, compliant with any 802.3af Power over Ethernet equipment, easy in setting and complete the full Wi-Fi coverage.
Must be managed by CAPWAP WLAN controller, it is easy to configure the data in central or remotely; Then can work with cloud server for portal authentication and advertisement function.
Main Features:
1.In wall panel design
Match with the cassette with size of 86mm or 75mm, easy to complete the Wi-Fi cover and match with design style
2.Wireless N and 300Mbps speed:
Compliant with IEEE 802.11b/g/n standard, 300Mbps in data rate, more faster in download, more freely in internet surf.
3.Power over Ethernet:
Support 802.3af PoE, can be powered by any any 802.3af Power over Ethernet equipment, cost savely
4.Centralized Management and portal authentication
Support WLAN controller for centralized management, which make the IT staff can sets up different IP addresses, ESSID and manages each room’s AP at the same time. They can remotely add, set up, monitor, delete, upgrade firmware via the WLAN controller through computer.
Besides that, it work with cloud server for remote management, then with function of accounting, facebook/google authentication, SMS verify...
Spec:
Wireless | |
Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Data Rate |
11n: 300Mbps 11g: 54Mbps 11b: 11Mbps |
Frequency Range | 2.4-2.4835GHz |
Wireless Transmit Power |
11n @MCS7:14±2DB, @MCS0:16±2DB. 11g @54M:15±2DB, @6M:17±2DB. 11b @11M:18±2DB, @1M:20±2DB. |
Modulation Type | OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK |
Receive Sensitivity |
11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. |
EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
PPM | ±20ppm |
MAX Users | 64 |
Operation Mode | AP |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA /WPA2-Personal (TKIP/AES) |
Operation Mode | Router, AP, Repeater |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA /WPA2-Personal (TKIP/AES) |
System Requirements | Windows 7/Vista/XP/2000,Mac OS®, Linux or Android OS |
Hardware | |
Chipset | Qualcomm QCA9531 |
Flash | 16M |
SDRAM | 64M |
Interfaces |
2 x 10/100Mbps LAN/WAN Port 1 x RJ11 port |
Button | Reset Button |
Antenna | MIMO 3dBi Build-in omni-directional Antenna |
Power Supply | 802.3af PoE |
Dimensions( W x D x H ) | 86*86*68mm |
Others | |
Operating Temperature | -20°C~55°C |
Storage Temperature | -40°C~70°C |
Relative Humidity | 10% ~ 90%, Non-condensing |
Storage Humidity | 5%~95%, Non-condensing |
Certifications | RoHS |
Package Contents |
1 x in wall AP 1 x Quick Installation Guide 1 x setting accessory |
Working Diagram:
Installation:
