Home Hotel Office In Wall Wireless Access Point WIFI 750Mbp 802.11AC Dual Band

Home Hotel Office In Wall Wireless Access Point WIFI 750Mbp 802.11AC Dual Band

Home Hotel Office In Wall Wireless Access Point WIFI 750Mbp 802.11AC Dual Band

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: PW760

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: ABS Band: 2.4G + 5.8G
Flash: 16M RAM: 128M
Working Mode: AP, Router, Repeater Encryption: WEP, WPA/WPA2, WPA/WPA2-Personal(TKIP/AES)

Wall Socket Designed 750Mbp Home Hotel Office Room WIFI 802.11ac Dual Band In Wall AP

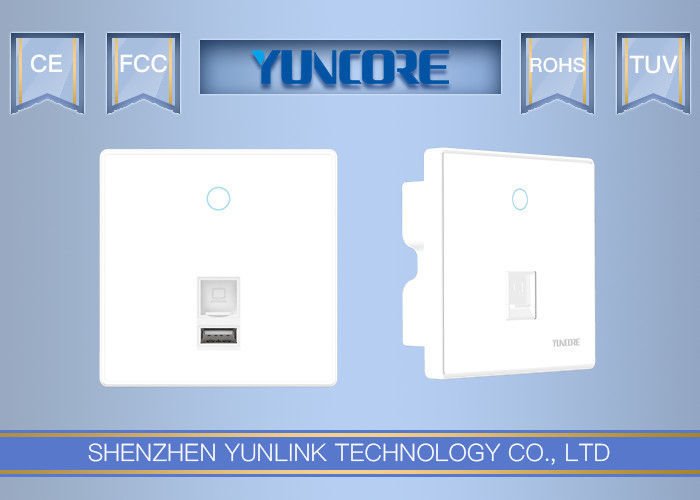

PW760 is an 11ac wall mount style wireless access point with USB charge port. Upgrade to the latest wireless-AC technology, It with fast data rate (433Mbps in 5G and 300Mbps in 2.4GHz) and dual band, allowing content to download faster, large video or music files to sync more quickly and stream seamlessly.
Embed PoE, work in hotel, school, hospital mainly for a stable wireless networking. Then work with Yunlink’s Access Controller System and cloud management system, easy in central configuration, meet with different advertisement and multi authentication requirement , professional and cost effectively in large area Wi-Fi solution

Wireless AC Technology, more users

The PW760 AC dual band wall mount Wireless Access Point offers AC technology for seamless/smoother video and music streaming. More users including computers, Internet-ready TVs, game consoles, and other Wi-Fi devices can access into this wireless networking at transfer rates up to733Mbps speed.

Dual Band, Less Interference

Double your network bandwidth with Dual-Band AC(2.4G and 5G) designed to help avoid interference and maximize throughput. You can browse web pages, handle mails and chat over 2.4G while enjoying lag-free HD multimedia and online gaming over 5G without worrying about interference.





1 * 10/100Mbps WAN Port

1 * 10/100Mbps LAN Port

1 * USB 2.0 Charge Port

1 * LED on/off switch

Button Reset Button, press 15 seconds to revert to default data.
Chipset Qualcomm QCA9531+QCA9887
Flash 16M Flash
External Power Supply 48V PoE, IEEE 802.3af standard
Dimensions (W X D X H) 86*86*35mm
Antenna Type

1*5.8GHz 2dBi internal antenna

2 * 2.4GHz 2dBi internal antennas

Wireless Standards IEEE 802.11ac/n/a 5GHz; IEEE 802.11n/g/b 2.4GHz
Frequency 5GHz and 2.4GHz
Signal Rate 5GHz:Up to 433Mbps; 2.4GHz: Up to 300Mbps
Reception Sensitivity

2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0.

11g: -72dbm@54Mbps, -88dbm@6Mbps.

11b: -85dbm@11Mbps, -94dbm@1Mbps.

5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps.

11n: -70dbm@MCS7, -90dbm@MCS0.

11ac:-60dbm@MCS9, -86dbm@MCS0.

RF Power

2.4G: 11n @MCS7:15±2DB, @MCS0:17±2DB.

11g @54M:16±2DB, @6M:18±2DB.

11b @11M:18±2DB, @1M:20±2DB.

5.8G: 11a @54M:15±2DB, @6M:17±2DB.

11n @MCS7:14±2DB, @MCS0:16±2DB.

11ac @MCS9:13±2DB, @MCS0:15±2DB.

Wireless Auto-Channel selection
Distance Control (802.1x Ack timeout)
Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G)

802.11n: ≤-28 DB

802.11g: ≤-25 DB

802.11b: ≤-10 DB

802.11a: ≤-25 DB

PPM ±20ppm
Max Access Users 128
Operation Mode Wireless AP, Gateway, Wi-Fi Repeater
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
LED Status Sys(System), WAN, Wi-Fi
System Settings Web-based configuration (HTTP/Telnet), Access Control System (SNMP)
Firmware Upgrade Upgrade firmware via web browser or TFTP
Administration Admin Password can be configured
System monitoring Watch dog, Status in hand , useful statistic and Event log
Logs Supports local logs, logs host, logs file export
Reset Reset or factory defaults
Backup Restore settings & configuration of the device to local file, Scheduled reboot


Working Diagram:


Home Hotel Office In Wall Wireless Access Point WIFI 750Mbp 802.11AC Dual Band


Home Hotel Office In Wall Wireless Access Point WIFI 750Mbp 802.11AC Dual Band
