| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | PW560 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | ABS | Band: | 2.4G |
|---|---|---|---|
| Flash: | 16M | RAM: | 64M |
| Working Mode: | AP, Router, Repeater | Encryption: | WEP, WPA/WPA2, WPA/WPA2-Personal(TKIP/AES) |
| High Light: | in wall wifi access point,wall mount access point |
||
300Mbps Data Rate Suitable for Home Office Decoration WiFi Coverage In Wall WiFi AP
Description:

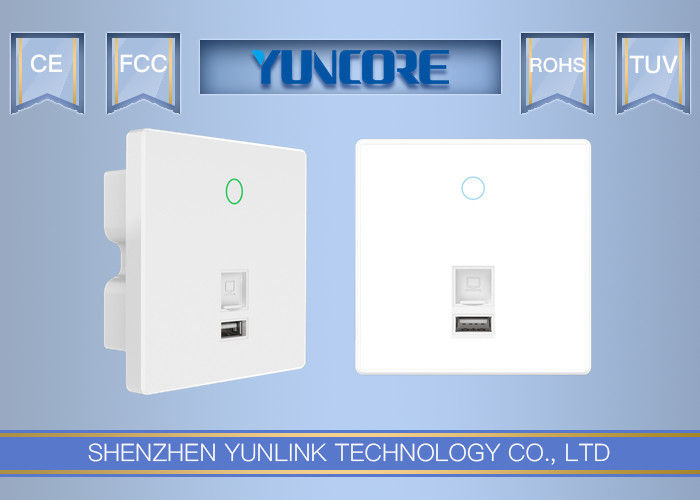

PW560 is an 300Mbps wall mount style wireless access point with Qualcomm Chipset, 300Mbps fast data rate, designed for hotel/home mainly to provide secure Internet access and USB power for mobile phone, iPad, guest room, living room and lobby.
It support PoE power, comply with IEEE 802.3af 48V active standard, work with PoE switch, allow both power and data to be carried over a single Ethernet cable, easy to setup and cost savely.
Work with Yunlink’s Access Controller System and cloud management system, easy in central configuration, meet with different advertisement and multi authentication requirement , professional and cost effectively in large area Wi-Fi solution
In wall panel design
Match with the cassette with size of 86mm or 75mm, easy to complete the Wi-Fi cover and match with design style
Wireless N and 300Mbps speed
Compliant with IEEE 802.11b/g/n standard, 300Mbps in data rate, more faster in download, more freely in internet surf.
Active PoE Power
PW560 support PoE power, comply with IEEE 802.3af 48V active standard, work with PoE switch, allow both power and data to be carried over a single Ethernet cable, easy to setup and cost savely.
USB Power
PW560 with an USB port on the front, it supply 5V power for iPhone, iPad or other electronic product.
Access Controller System & Cloud Management System
With Access Control System, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....
Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication, even billing functions in the near future to make this AP more professional in Wi-Fi Projects.
Spec:
| HARDWARE FEATURES | |
| Interface |
1 * 10/100Mbps WAN Port 1 * 10/100Mbps LAN Port 1 * USB 2.0 Charge Port 1 * Wi-Fi on/off switch |
| Button | Reset Button, press 15 seconds to revert to default data. |
| Chipset | Qualcomm QCA9531 |
| Flash | 16M Flash |
| SDRAM | 64M DDR |
| Power Supply | PoE, IEEE 802.3af standard, 48V |
| Dimensions (W X D X H) | 86*86*35mm |
| Antenna Type | 2 * 2.4GHz 2dBi internal antennas |
Working Diagram:
