Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | PW760 |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000 PCS/ WEEK |
Material: | ABS | Band: | 2.4G + 5.8G |
---|---|---|---|
Flash: | 16M | RAM: | 128M |
Working Mode: | AP, Router, Repeater | Encryption: | WEP, WPA/WPA2, WPA/WPA2-Personal(TKIP/AES) |
High Light: | wall mount access point,wall plate wireless access point |

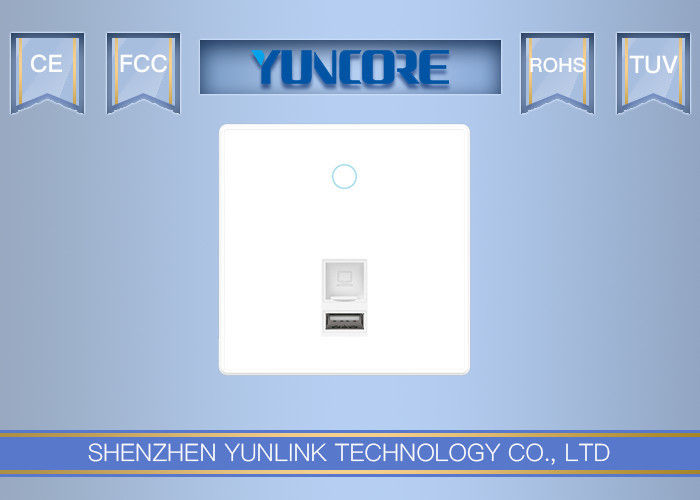

750Mbp Wall Socket Designed for Home Hotel Office Room 802.11ac Dual Band In Wall AP
Description:
PW760 is an 11ac wall mount style wireless access point with USB charge port. Upgrade to the latest wireless-AC technology, It with fast data rate (433Mbps in 5G and 300Mbps in 2.4GHz) and dual band, allowing content to download faster, large video or music files to sync more quickly and stream seamlessly.
Embed PoE, work in hotel, school, hospital mainly for a stable wireless networking. Then work with Yunlink’s Access Controller System and cloud management system, easy in central configuration, meet with different advertisement and multi authentication requirement , professional and cost effectively in large area Wi-Fi solution
Wireless AC Technology, more users
The PW760 AC dual band wall mount Wireless Access Point offers AC technology for seamless/smoother video and music streaming. More users including computers, Internet-ready TVs, game consoles, and other Wi-Fi devices can access into this wireless networking at transfer rates up to733Mbps speed.
Dual Band, Less Interference
Double your network bandwidth with Dual-Band AC(2.4G and 5G) designed to help avoid interference and maximize throughput. You can browse web pages, handle mails and chat over 2.4G while enjoying lag-free HD multimedia and online gaming over 5G without worrying about interference.
Spec:
HARDWARE FEATURES | |
Interface |
1 * 10/100Mbps WAN Port 1 * 10/100Mbps LAN Port 1 * USB 2.0 Charge Port 1 * LED on/off switch |
Button | Reset Button, press 15 seconds to revert to default data. |
Chipset | Qualcomm QCA9531+QCA9887 |
Flash | 16M Flash |
SDRAM | 128M DDR |
External Power Supply | 48V PoE, IEEE 802.3af standard |
Dimensions (W X D X H) | 86*86*35mm |
Antenna Type |
1*5.8GHz 2dBi internal antenna 2 * 2.4GHz 2dBi internal antennas |
Working Diagram:
