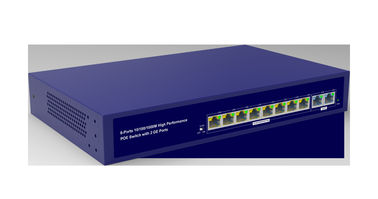

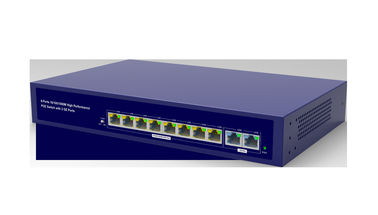

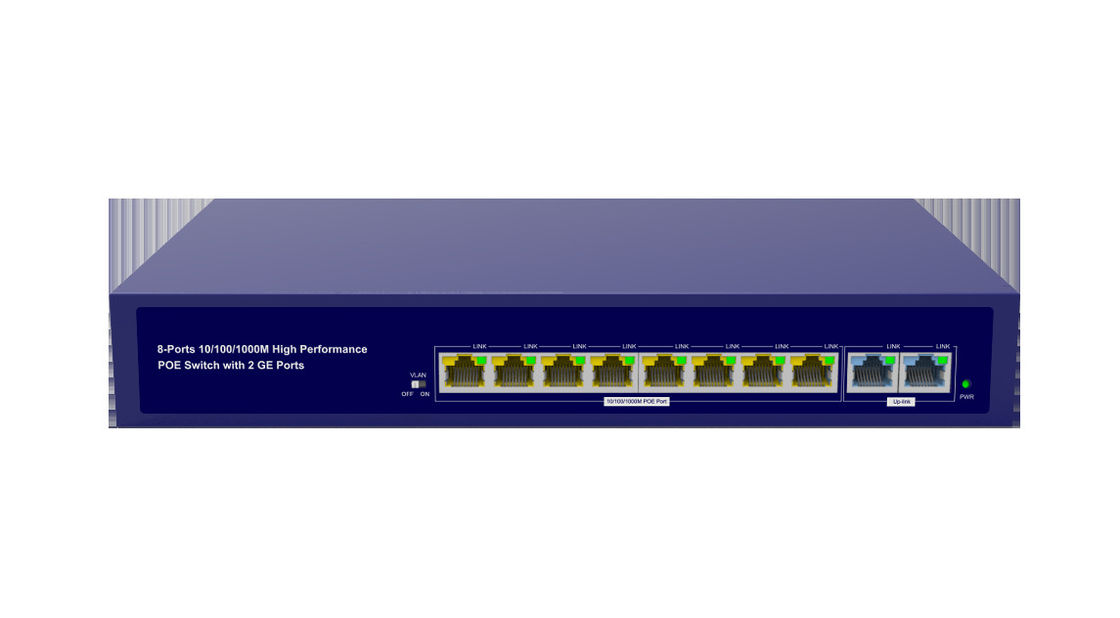

Auto - Negotiation Auto MDI / MDIX POE Network Switch 8 POE Ports 1 Uplink Port

Auto - Negotiation Auto MDI / MDIX POE Network Switch 8 POE Ports 1 Uplink Port

    • Auto - Negotiation Auto MDI / MDIX POE Network Switch 8 POE Ports 1 Uplink Port
    • Auto - Negotiation Auto MDI / MDIX POE Network Switch 8 POE Ports 1 Uplink Port
    • Auto - Negotiation Auto MDI / MDIX POE Network Switch 8 POE Ports 1 Uplink Port
  • Auto - Negotiation Auto MDI / MDIX POE Network Switch 8 POE Ports 1 Uplink Port

    Product Details:

    Place of Origin: China
    Brand Name: Yuncore
    Certification: CE,FCC,ROHS
    Model Number: SP-909-P48/ SP-909HP-P48

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 PCS
    Price: Negotiable
    Packaging Details: Giftbox + Carton box
    Delivery Time: 4 working days
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 1000 PCS/ WEEK
    Contact Now
    Detailed Product Description
    Material: Metal Chipset: Realtek
    Packet Forwarding Rate:: 1.8 Gbps MAC Address Table: 2K
    Standard: IEEE802.3af/at Standard Ports: 8*10/100MbPS PoE Ports,1* 10/100M Uplink Port
    Support: AUTO Negotiation/AUTO MDI/MDIX POE Output: 48V, IEEE 802.3af/at Standard

    9 Port 48V IEEE 802.3af / at Standard Auto - Negotiation Auto MDI / MDIX PoE Switch

    Features:

    Multi-ports including PoE Ports, Up-Link Port

    With 8*10/100M PoE ports,1*10/100M Up-link port,all ports support auto-negotiation and auto MDI/MDIX;
    Intelligent PoE and Port Priority

    Support IEEE802.3af/at PoE, 30W high power for single PoE port; With smart power management when the power of PD equipment is over 75W,ALM LED indicator will turn on to warn that the power is not enough. if all PoE PD equipment power consumption is over 85W and become overloaded, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port

    Plug and Play, easy maintenance

    Desktop/rack-mount metal case,plug and play, LED indicator show the working status, quickly to configure and maintance

    High Level Lightning Protection

    SP-909 integrated professional Lightning protection circuits, support Ethernet port lightning protection(4KV), Power lightning protection (6KV) protection, to ensure it work stability in an unstable environment

    Spec:

    Model

    SP-909

    SP-909HP

    Ports 9* auto Negotiation /auto MDI/MDIX RJ45 Ports
    8*10/100Mbps PoE ports
    1*10/100/1000Mbps up-link port
    Cable requirement 10BASE-T: UTP 3,4,5 cable(≤100 meters)
    100BASE-TX: UTP 5 cable(≤100 meters)
    IEEE802.3 af Support/15.4W
    IEEE802.3at Support/30W
    POE

    SP-909: 96W, 48V-2A;

    up to 30W for PoE port

    SP-909HP: 120W, 48V-2.5A;

    up to 30W for PoE port

    Overload Protection SP-909: 85W
    SP-909HP: 112W
    LED Indicator PWR(Power), POE,LINK, ALM(Alarm)
    Size(L*W*H) 250mm*122mm*35mm
    Working Environment Working Temperature: 0℃~40℃
    Storage Temperature: -40℃~70℃
    Working Humidity: 10%~90% No Condensation
    Storage Humidity: 5%~90% No Condensation
    Input Power

    SP-909:DC 48V/2A

    SP-909HP: 48V/2.5A

    POE Power

    SP-909:96W

    SP-909HP: 120W

    MAX Port PoE Power 30W
    PoE Standard IEEE 802.3, 802.3u, 802.3x, 802.3af,802.3at
    CSMA/CD, TCP/IP
    Advanced Functions Comply with IEEE 802.3at/af PDs
    Port Priority Function
    Wire-speed forwarding
    MAC Address Auto-Learning and Auto-Aging.
    IEEE802.3X Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
    MAC Address Table 2k
    Backplane Bandwidth 1.8Gbps
    Forwarding Rate 10BASE-T:14880pps/port
    100BASE-TX:148800pps/port



    More pictures:



    Auto - Negotiation Auto MDI / MDIX POE Network Switch 8 POE Ports 1 Uplink Port

    Auto - Negotiation Auto MDI / MDIX POE Network Switch 8 POE Ports 1 Uplink Port

    Auto - Negotiation Auto MDI / MDIX POE Network Switch 8 POE Ports 1 Uplink Port
