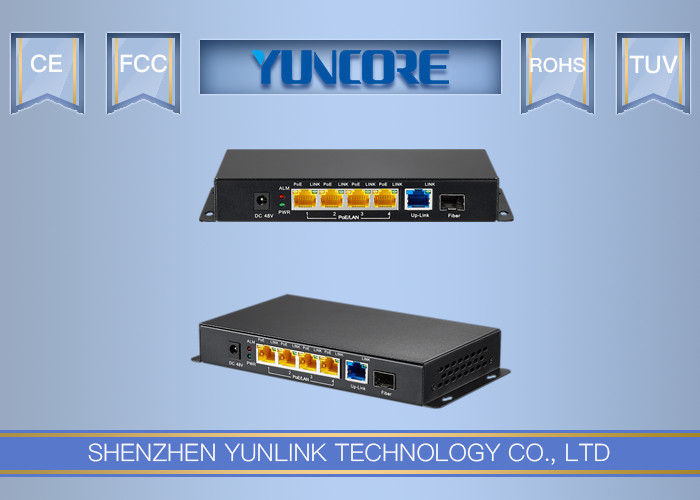

Full Gigabit Ports POE Ethernet Switch 4 Port 48V With 1 Uplink / 1 SFP Port

Full Gigabit Ports POE Ethernet Switch 4 Port 48V With 1 Uplink / 1 SFP Port

Full Gigabit Ports POE Ethernet Switch 4 Port 48V With 1 Uplink / 1 SFP Port

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: CE, FCC, ROHS
Model Number: SP-1005-P48/ SP-1005HP-P48

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: Metal Chipset: RTL8367S+MSC PD69104
Packet Forwarding Rate:: 1.6Gbps MAC Address Table: 8K
Standard: IEEE802.3af/at Standard Ports: 4*10/100/1000MbPS PoE Ports,1* Gigabit SFP Port
Support: AUTO Negotiation/AUTO MDI/MDIX POE Output: 48V, IEEE 802.3af/at Standard

Plug and Play Easty Installation 4 Gigabit 48V IEEE802.3at PoE Switch with 1 Uplink + 1 SFP Port


SP-1005/ SP-1005HP is an 5 ports Gigabit PoE switch with Gigabit SFP fiber injector, designed with desktop/rack-mount metal case, easy to make the transition to Gigabit Ethernet. All 5 ports support auto-negotiation, auto MDI/MDIX and standard IEEE 802.3af/at PoE, simply plug and play. With the innovative energy-efficient technology, users can choose the PoE switch according power consumption, making it an eco-friendly solution for home/business networking.


Features:


Multi-ports including PoE Ports, Up-Link Port, Fiber Port


With 4*10/100/1000M PoE ports,1*10/100/1000M Uplink port,1*Gigabit SFP fiber injector, all RJ45 ports support auto-negotiation and auto MDI/MDIX


Power over Ethernet and Port priority


Support IEEE802.3af/at PoE standard, auto detect the standard PD equipments and supply power to them, max PoE power for each port up to 30W


Plug and Play, easy maintenance


Desktop/rack-mount metal case,plug and play, LED indicator show the working status, quickly to configure and maintance


High Level Lightning Protection


Integrated professional Lightning protection circuits, support Ethernet port lightning protection(4KV), Power lightning protection (6KV) protection, to ensure it work stability in an unstable environment


PoE Power Port priority


if all PoE PD equipment power consumption become overloaded, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port



Spec:



Model SP-1005/SP-1005HP
Ports 5 * 10/100/1000M auto Negotiation /auto MDI/MDIX RJ45 Ports
4 * 10/100/1000M PoE Ports
1 * 10/100/1000M up-link Port
1 * 1000M SFP Fiber Port
Cable requirement 10BASE-T: UTP 3,4,5 cable(≤100 meters)
100BASE-TX: UTP 5 cable(≤100 meters)
1000BASE-TX: UTP 5 cable(≤100 meters)
IEEE802.3 af Support/15.4W
IEEE802.3at Support/30W (SP-1005HP Model support)
POE

SP-1005: 72W,48V-1.5A;

up to 30W for PoE port

SP-1005HP: 120W,48V-2.5A;

up to 30W forPoE port

Overload Protection SP-1005: 96W
SP-1005HP: 120W
LED Indicator PWR, POE, LINK, ALM
Size(L*W*H) 185mm*96mm*24mm
Working Environment Working Temprature: 0℃~40℃
Storage Temprature: -40℃~70℃
Working Humidity: 10%~90% No Condensation
Storage Humidity: 5%~90% No Condensation
Input Power DC 48V/1.5A for SP-1005; 48V/2.5A for SP-1005HP
PoE Standard IEEE 802.3, 802.3u, 802.3x, 802.3af,802.3at
CSMA/CD, TCP/IP
Advanced Functions Comply with IEEE 802.3at/af PDs
Port Priority Function
Wire-speed forwarding
MAC Address Auto-Learning and Auto-Aging.
IEEE802.3X Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
MAC Address Table 2K
Forwarding Rate 10BASE-T:14880pps/port
100BASE-TX:148800pps/port
1000BASE-TX:148800pps/port
