Home ProductsPower Over Ethernet Switch

Easy Maintenance Power Over Ethernet Switch , 16 Ports 24V Passive PoE Switch

Easy Maintenance Power Over Ethernet Switch , 16 Ports 24V Passive PoE Switch

Easy Maintenance Power Over Ethernet Switch , 16 Ports 24V Passive PoE Switch

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: YS-816-P24

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: Metal Chipset: RTL8316E
Packet Forwarding Rate:: 3.2 Gbps MAC Address Table: 8K
Standard: 24V Passive PoE Ports: 16*10/100/1000MbPS PoE Ports
High Light:

poe network switch

,

wireless poe switch

Plug and Play , easy maintenance 16 Ports 24V Passive Power Over Ethernet Switch

Features:

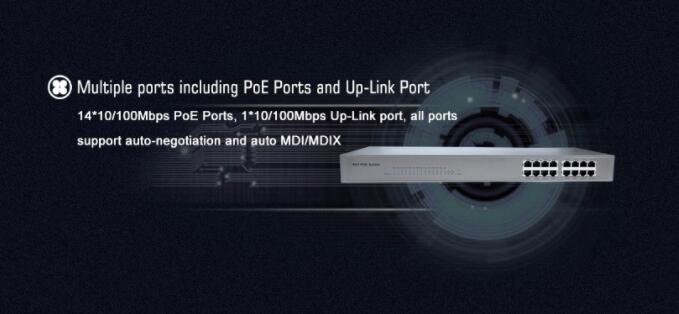

Multi-ports including PoE Ports

Supply 16*10/100M MDI/MDIX RJ45 Port

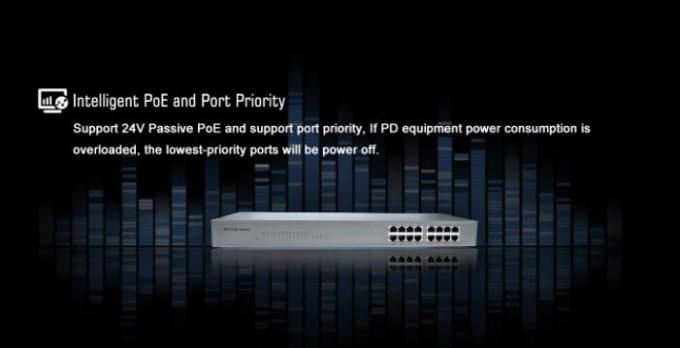

24V Passive POE to save cost

YS-816-P24 with 14 PoE ports comply with 24V Passsive PoE, each port up to 20W, then total 300W for this PoE switch, all ports can be fully connected with PD equipment.

Simple and easy maintenance

Unmanagement design, plug and play, dynamic LED light, no need any settings, help you quickly to complete the wired network, and simplifies equipment maintenance.

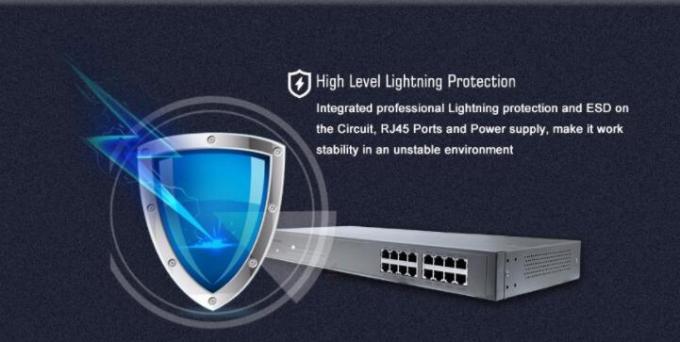

Excellent design of lightning

Integrate professional lightning-protection circuit, support port lightning-protection (4KV), power lightning protection level 4 (6KV) protection. Excellent lightning protection, anti-static and anti-interference ability, ensure switch stably operate in an unstable environment.

Spec:

Standard

IEEE 802.3 ,IEEE 802.3u,IEEE 802.3x,IEEE 802.az



Ports

16* 10/100Mbps RJ45 port



DHCP sever (*Optional) Assign IP address for AP in the WLAN networking, easy to manage Wireless AP
Indicator

1*Link/Ack Indicator for each port

1* Power indicator

(The power indicator will change to Status indicator if with DHCH Server)

Function

Store and Forward

Support 3.2Gbps backplane bandwidth

Support 8K MAC address table depth

Environment

Working Temperature:0℃~40℃

Storage Temperature:-40℃~70℃

Working Humidity:10%~90%RH

Storage Humidity:5%~90%RH

Power Input

100-240V~ 50/60Hz



Demension(L×W×H) 440mm x198 mm x 44mm



More pictures:



Easy Maintenance Power Over Ethernet Switch , 16 Ports 24V Passive PoE Switch

Easy Maintenance Power Over Ethernet Switch , 16 Ports 24V Passive PoE Switch

Easy Maintenance Power Over Ethernet Switch , 16 Ports 24V Passive PoE Switch
