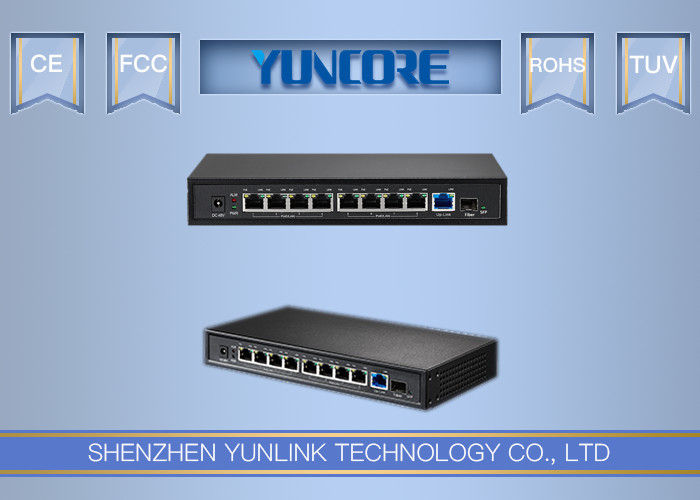

Black 8 Port Gigabit 48V Power Over Ethernet Switch / 1 Uplink / 1 SFP

Black 8 Port Gigabit 48V Power Over Ethernet Switch / 1 Uplink / 1 SFP

    • Black 8 Port Gigabit 48V Power Over Ethernet Switch / 1 Uplink / 1 SFP
    • Black 8 Port Gigabit 48V Power Over Ethernet Switch / 1 Uplink / 1 SFP
  • Black 8 Port Gigabit 48V Power Over Ethernet Switch / 1 Uplink / 1 SFP

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE,FCC,ROHS
    Model Number: SP-1009-P48/ SP-1009HP-P48

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 PCS
    Price: Negotiable
    Packaging Details: Giftbox + Carton box
    Delivery Time: 4 working days
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 1000 PCS/ WEEK
    Contact Now
    Detailed Product Description
    Material: Metal Chipset: RTL8370MB+MSC PD69104
    Packet Forwarding Rate:: 20.0 Gbps MAC Address Table: 4K
    Standard: IEEE802.3af/at Standard Ports: 8*10/100/1000MbPS PoE Ports,1* Gigabit SFP Port, 1*gigabit UPLINK Port
    Support: AUTO Negotiation/AUTO MDI/MDIX POE Output: 48V, IEEE 802.3af/at Standard

    Easy Maintenance 8 Gigabit 48V PoE Port + 1 Uplink + 1 SFP Power Over Ethernet Switch


    SP-1009HP is a Gigabit POE Switch with 8 Gigabit PoE ports, 1 Gigabit Up-Link Port and 1 SFP Fiber Port .All RJ45 Ports support auto-negotiation, auto MDI/MDIX, then PoE ports support IEEE 802.3af/at POE standard, simply plug and play. With the innovative energy-efficient technology, users can choose the PoE switch according power consumption, making it an eco-friendly solution for home/business networking.


    Features:


    Multi-ports including PoE Ports, Up-Link Port, Fiber Port


    With 8*10/100/1000M PoE ports,1*10/100/1000M Uplink port,1*Gigabit SFP fiber injector, every RJ45 ports support auto-negotiation and auto MDI/MDIX;


    Power over Ethernet and Port priority


    Support IEEE802.3af/at PoE. With smart power management when the power of PD equipment is over 112W,ALM LED indicator will turn on to warn that the power is not enough. if all PoE PD equipment power consumption is over 120W and become overloaded, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port


    Plug and Play, easy maintenance


    Desktop/rack-mount metal case,plug and play, LED indicator show the working status, quickly to configure and maintance


    High Level Lightning Protection


    SP-1009HP integrated professional Lightning protection circuits, support Ethernet port lightning protection(4KV), Power lightning protection (6KV) protection, to ensure it work stability in an unstable environment



    Spec:



    Model

    SP-1009

    SP-1009HP

    Ports 9*10/100/1000Mbps auto Negotiation /auto MDI/MDIX RJ45 Ports
    8*10/100/1000Mbps PoE ports
    1*10/100/1000Mbps up-link port
    1*SFP Fiber Port
    Cable requirement 10BASE-T: UTP 3,4,5 cable(≤100 meters)
    100BASE-TX: UTP 5 cable(≤100 meters)
    1000BASE-TX: UTP 5 cable(≤100 meters)
    IEEE802.3 af Support/15.4W
    IEEE802.3at Support/30W
    POE

    SP-1009: 96W, 48V-2A;

    up to 30W for PoE port

    SP-1009HP: 120W, 48V-2.5A;

    up to 30W for PoE port

    Overload Protection SP-1009: 85W
    SP-1009HP: 112W
    LED Indicator PWR(Power), POE,LINK, ALM(Alarm)

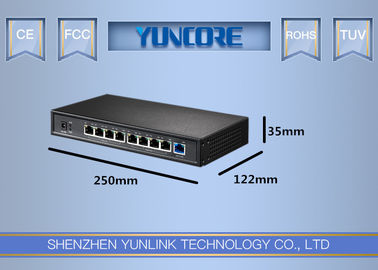

    Size(L*W*H) 250mm*122mm*35mm
    Working Environment Working Temperature: 0℃~40℃
    Storage Temperature: -40℃~70℃
    Working Humidity: 10%~90% No Condensation
    Storage Humidity: 5%~90% No Condensation
    Input Power

    SP-1009:DC 48V/2A

    SP-1009HP: 48V/2.5A

    POE Power

    SP-1009:96W

    SP-1009HP: 120W

    MAX Port PoE Power 30W
    PoE Standard IEEE 802.3, 802.3u, 802.3x, 802.3af,802.3at
    CSMA/CD, TCP/IP
    Advanced Functions Comply with IEEE 802.3at/af PDs
    Port Priority Function
    Wire-speed forwarding
    MAC Address Auto-Learning and Auto-Aging.
    IEEE802.3X Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
    MAC Address Table 4K
    Backplane Bandwidth 20Gbps
    Forwarding Rate 10BASE-T:14880pps/port
    100BASE-TX:148800pps/port
      1000BASE-TX:148800pps/port



    More pictures:



    Black 8 Port Gigabit 48V Power Over Ethernet Switch / 1 Uplink / 1 SFP

    Black 8 Port Gigabit 48V Power Over Ethernet Switch / 1 Uplink / 1 SFP

    Black 8 Port Gigabit 48V Power Over Ethernet Switch / 1 Uplink / 1 SFP
