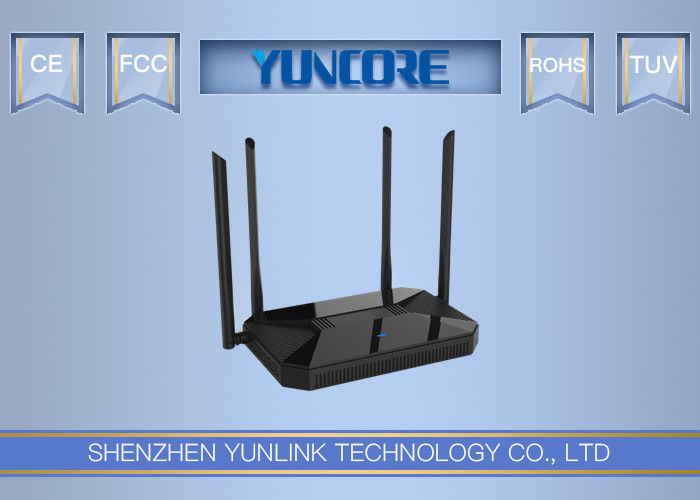

1200Mbps Gigabit Dual Band Wireless Router , 11ac Wifi Router MU - MIMO Support Beamforming Tech

1200Mbps Gigabit Dual Band Wireless Router , 11ac Wifi Router MU - MIMO Support Beamforming Tech

1200Mbps Gigabit Dual Band Wireless Router , 11ac Wifi Router MU - MIMO Support Beamforming Tech

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE
Model Number: FR1800-M2

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Packaging Details: Carton box + Gift box
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 PCS per WEEK
Contact Now
Detailed Product Description
Housing: ABS Color: Balck
Flash: 16M RAM: 128M
Antenna: 4 Pcs Port: 1*WAN, 3*LAN
Standard: IEEE802.11AC/N/G/B Frequency: 2.4GHz+5GHz
High Light:

dual band wireless router

,

ac1200 wireless router

Gigabit Dual Band 802.11 AC Wireless Router MU - MIMO 1200Mbps Beamforming Technology

FR1800 is an home use mesh wireless router with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN/LAN ports, 5dBi omni antenna, supply high wall-pass-through 2.4G wireless signal and very pure 5G wireless signal for end users, allow them access into the wireless networking at any core with best performance.

Main Features:

1. 11ac dual band, 1200Mbps data rate, Gigabit WAN Port

Comply with 802.11ac standard, dual 2.4G and 5G band, 1200Mbps data rate with Gigabit WAN port, less Wi-Fi interference and high data rate ensure FR1800 to provide more stable and faster network access.

2. Multiple operation mode in different environment for different application

FR1800 support Gateway, Wi-Fi Repeater, Wireless AP operation mode, flexible to choose the right operation mode based on different environment and application.

3. Varieties of Login method, Intelligent and Simple to setup

It is easy to Log in this wireless router by IP address, domain name, scanning QR code, users can configure and manage it by PC, Mobile phone; Easy and intelligent to finish the configuration according to setup wizard in three steps, plug and play.

4. Smart to learn and remember dial account and password

If dial account or password is forgotten, FR1800 with smart learning function, can automatically save this account and password from the router you once used and connect to the internet success.

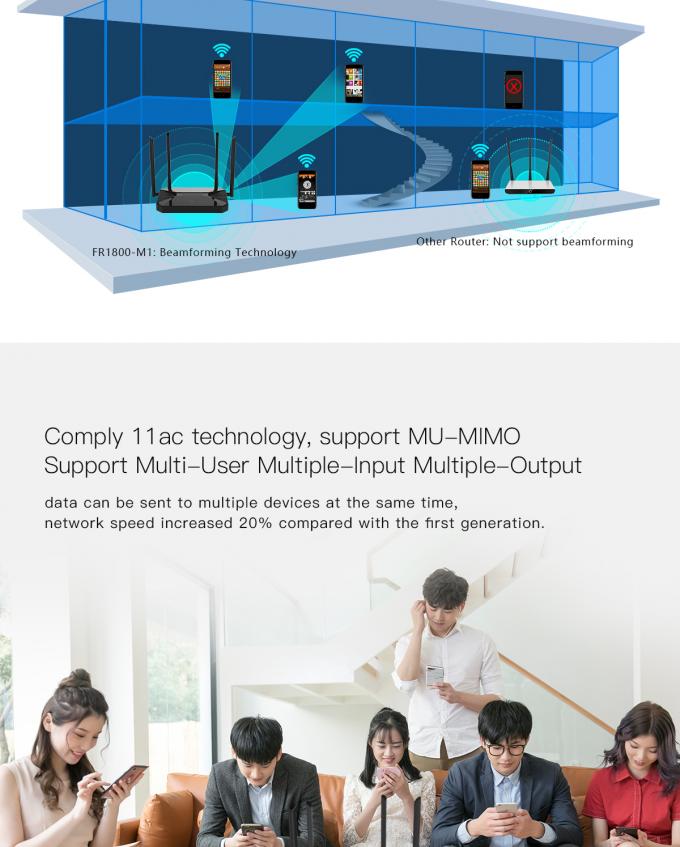

5. Beamforming Technology

FR1800 support beamforming technology, focus wireless router’s signal toward each end user, concentrating the data transmission so that more data reach to the targeted users instead of radiating out into the atmosphere, to improve video streaming, voice quality and other bandwidth and latency-sensitive transmission.

Specifications:


ModelFR1800-M2
CPURTL8197FH + RTL8812BRH + RTL8367RB
Flash8MB
RAM64MB
Frequency

2.4GHz: 2400MHz-2484MHz
5.8GHz: 5180MHz~5825MHz

Standard802.11ac/b/g/n, 2T2R MIMO
Data Rate1200Mbps
ModulationOFDM = BPSK,QPSK,16-QAM,64-QAM; DSSS = DBPSK,DQPSK,CCK
2.4G RF Power802.11b11M18±2DB1M20±2DB
802.11g54M17±2DB6M19±2DB
802.11n HT20MCS716±2DBMCS018±2DB
802.11n HT40MCS715±2DBMCS017±2DB
5G RF Power802.11a54M17±2DB6M20±2DB
802.11n HT20MCS716±2DBMCS019±2DB
802.11n HT40MCS715±2DBMCS019±2DB.
802.11ac HT80MCS914±2DBMCS017±2DB
2.4G Receive Sensitivity802.11b11M-85dbm1M-94dbm
802.11g54M-72dbm6M-90dbm
802.11n HT20MCS7-70dbmMCS0-88dbm
802.11n HT40MCS7-68dbmMCS0-86dbm
5G Receive Sensitivity802.11a54M-74dbm6M-90dbm
802.11n HT20MCS7-72dbmMCS0 .-88dbm
802.11n HT40MCS7-68dbmMCS0 .-86dbm
802.11ac HT80MCS9-58dbmMCS0 .-80dbm
EVM

2.4G: 802.11b: ≤-10dB; 802.11g: ≤-25dB ; 802.11n: ≤-28dB
5G: 802.11a: ≤-25dB; 802.11n: ≤-28dB; 802.11ac: ≤-32dB

Frequency Deviation±20ppm
Max Users325
Size218*148*33MM
Interface3*10/100/1000Mbps LAN ports
1*10/100/1000Mbps WAN port
1*USB2.0 Port
1*DC 12V 0.5A
1*Reset button: Press in 10 seconds: reset to default settings;
Operation ModeGateway, Wi-Fi Repeater, Wireless AP
LED IndicatorPWR(Power), WAN, LAN, NET(Ethernet)
AntennaBuild in 5dBi high-gain omni antennas
Power consume<6W
EnvironmentWorking Temperature: -30°C to 55°C
Storage Temperature: -40°C to 70°C
Humidity:5%~95%(Non-condensing)
