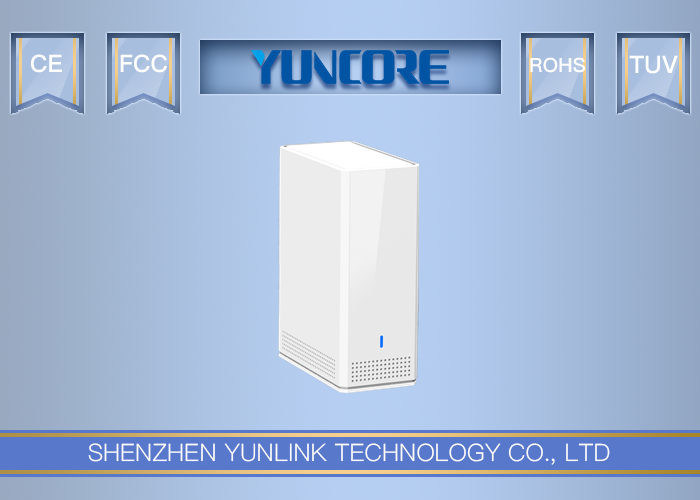

Smart Desktop 11AC Wireless Router 802.11ac 1200Mbps Dual Band Mesh WAVE2 Support

Smart Desktop 11AC Wireless Router 802.11ac 1200Mbps Dual Band Mesh WAVE2 Support

Smart Desktop 11AC Wireless Router 802.11ac 1200Mbps Dual Band Mesh WAVE2 Support

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: M5

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: ABS Chipset: Realtek RTL8197FH
Flash: 16M RAM: 128M
Power: 500mW Port: 1*10/100/1000 WAN, 4*10/100/1000 LAN
High Light:

dual band wireless router

,

ac1200 wireless router

Wave 2.0 Technology


With Wave 2 Technology, it adopt 256QAM modulation, support MU-MIMO (Multi-User Multiple-Input Multiple-Output), 8 Spatial Steams, greatly to improved the communication efficiency.



Band Steering Technology


M5 support band steering technology, will detect the wireless client, if dual band, will push client connect to the less congested 5GHz network, ensure better Ethernet experience.



Mesh Support


M5 support Mesh function, with self-organize and self-configure ability, reduce the installation overhead, enable dynamic distribution of workloads, particularly in the even that a few nodes should fail, turn contributes to fault-tolerance and reduce maintenance costs.



Smart to learn and remember dial account and password


If dial account or password is forgotten, M5 with smart learning function, can automatically save this account and password from the router you once used and connect to the internet success.



Adjustable RF Power


M5 support adjustable RF power, users can increase/decrease the RF power based on environment to reach the aims like less Wi-Fi interference or more Wi-Fi coverage



Build in Wi-Fi Analyzer, automatic to select the optimal channel


The Wi-Fi analyzer will analysis the channel of surrounding wireless signal, helpful to select the optimal channel, effectively avoid Wi-Fi signal drop and latency.



Advanced Security and Firewall functions


M5 support varieties of encryption like WPA/WPA2/TKIP/AES, SSID hidden, firewall like IP/Port filtering URL filtering, MAC address filtering and port forwarding, DMZ to defend networking threats.



Guest Wi-Fi


Create an independent Wi-Fi for guests or visitors, to keep your main network safety.



Smart QoS


Reasonable to allocate the bandwidth, to supply a smooth wireless networking.



Timing Wi-Fi/LED on/off


It is easy to set the Wi-Fi SSID and LED indicator on/off in certain time, to meet different use habits.



Spec:



Model M5
CPU Realtek RTL8197FH+RTL8812BRH+RTL8367RB
Flash 16MB
RAM 128MB
Frequency

2.4GHz: 2.4GHz-2.483GHz

5.8GHz: 5150MHz~5825MHz

Standard 802.11ac/b/g/n, 2T2R MIMO
Data Rate 1200Mbps
Modulation OFDM = BPSK,QPSK,16-QAM,64-QAM; DSSS = DBPSK,DQPSK,CCK
RF Power

2.4G: HT20: @MCS7:22.5±2DB, @MCS0:25.5±2DB.

HT40: @MCS7:22±2DB, @MCS0:25±2DB.

11g: @54M:23.5±2DB, @6M:26±2DB.

11b: @11M:26.5±2DB, @1M:28.5±2DB.

5.8G: 11a: @54M 22±2DB, @6M 25±2DB.

HT20: @MCS7 21±2DB, @MCS0 24±2DB.

HT40: @MCS7 21±2DB, @MCS0 24±2DB.

HT80: @MCS9 19±2DB, @MCS0 22±2DB.

Receive Sensitivity

2.4G: HT20: -72dbm@MCS7, -92dbm@MCS0.

HT40: -70dbm@MCS7, -90dbm@MCS0.

11g: -74dbm@54Mbps, -92dbm@6Mbps.

11b: -88dbm@11Mbps, -95dbm@1Mbps.

5.8G: 11a: -74dbm@54Mbps; -92dbm@ 6Mbps.

HT20: -72dbm@MCS7, -90dbm@MCS0.

HT40: -70dbm@MCS7, -88dbm@MCS0.

HT80: - 55dbm@MCS9.

EVM

802.11ac: ≤-32 DB

802.11n: ≤-28 DB

802.11g: ≤-25 DB

802.11b: ≤-10 DB

Frequency Deviation ±20ppm
Max Users 128
Size 118mm * 118mm *180mm
Interface 3*10/100/1000Mbps LAN ports
1*10/100/1000Mbps WAN port
1*USB2.0 Port
1*DC 12V 1.5A
1*Reset button: Press in 10 seconds: reset to default settings;
1*Power adapter (Short press: Power on,Long press: Power off)
Operation Mode Gateway, Wi-Fi Repeater, Wireless AP
LED Indicator WAN, LAN, SYS (system), NET(Ethernet)
Antenna Build in 5dBi high-gain omni antennas
Power consume <20W
Environment Working Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity:5%~95%(Non-condensing)

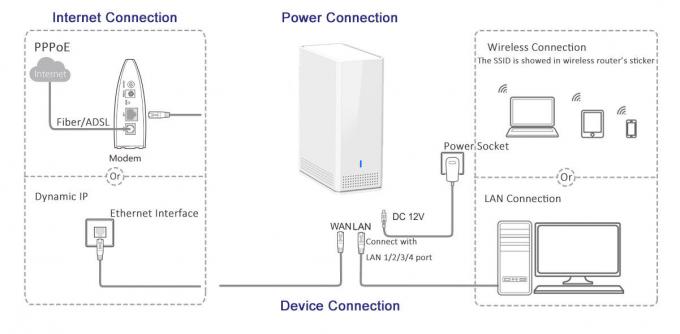

Working Diagram:



Smart Desktop 11AC Wireless Router 802.11ac 1200Mbps Dual Band Mesh WAVE2 Support



Smart Desktop 11AC Wireless Router 802.11ac 1200Mbps Dual Band Mesh WAVE2 Support
