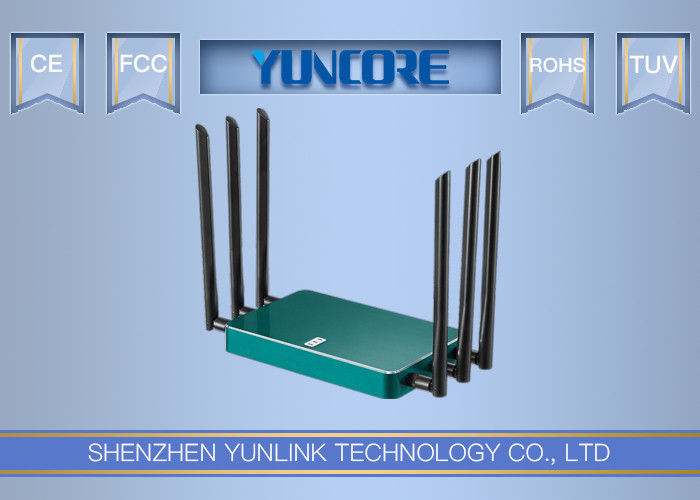

1200Mbps 11AC Wireless Router Realtek SR1200 Wifi Router With Cloud Server

Product Details:

Place of Origin:	China
Brand Name:	Yuncore
Certification:	CE,FCC,ROHS
Model Number:	SR1200

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	Giftbox + Carton box
Delivery Time:	4 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS/ WEEK

Contact Now

Detailed Product Description

Material:	Metal	Chipset:	RTL8197DN
Flash:	16M	RAM:	128M
Power:	1000mW	Port:	110/100/1000 WAN, 410/100 LAN
High Light:	dual band wireless router , ac1200 wireless router

Realtek Wifi Router with cloud server for authentication 1200Mbps 11ac Wireless Router AP

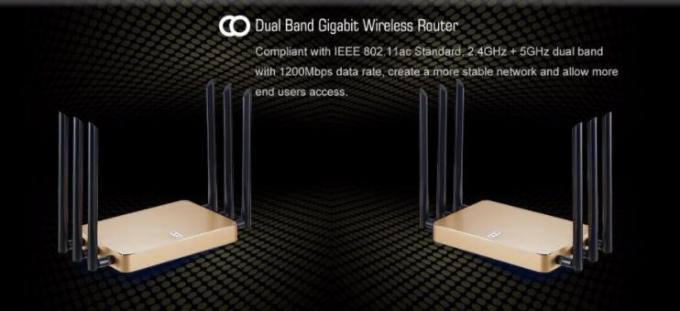

SR1200 high performance wireless router work in 2.4GHz / 5GHz dual radio, support 900Mbps 11ac (5GHz) and 300Mbps 11n (2.4GHz), the maximum wireless speed up to 1200Mbps, more wireless clients access; The 5GHz clear and wide radio allow faster Ethernet; The powerful amplifier provide very strong WiFi signal to each corner, suit for restaurants, conference rooms, KTV and other high density client access environment to solve the wireless access problems; SR1200 also support wireless repeater, wireless AP, WISP operation mode to meet with different application needs.

Features:

1200Mbps high speed and NAT high conversion rate

SR1200 comply with 802.11ac technology to provide up to 1200Mbps wireless access speed, it is 4 times higher than 802.11b/g/n products, while the NAT conversion rate> 93% s to achieve faster download/upload speed, make online surfing arbitrary.

Dual-band wifi analyzer

Through wifi analyzer function of the surrounding wireless signal field strength and channel analysis, follow up the results to select the channel with less interference, can effectively control the WiFi interference between each Wireless AP, to creat a stable and smoothly wireless network.

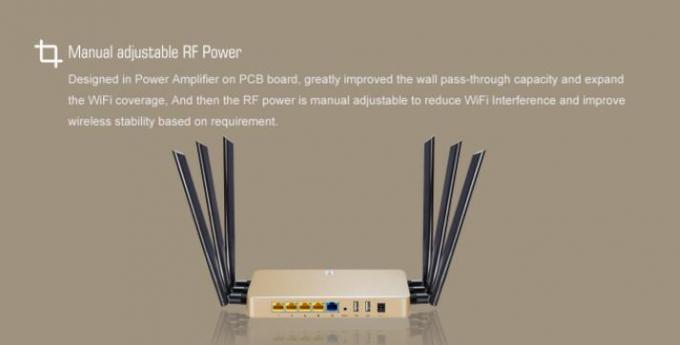

Manual adjustable RF Power

Designed in Power Amplifier on PCB board, greatly improved the WiFi signal wall-pass-through capacity and expand the WiFi coverage, And then the RF power is manual adjustable to reduce WiFi Interference and improve wireless stability based on requirement.

USB Storage and file sharing

With USB2.0 port, support DLNA, Samba and TFTP server, easy to do USB storage and sharing through Wireless Signal.

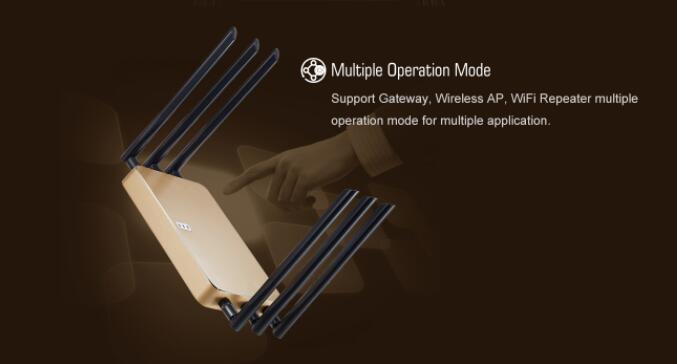

Multiple Operation Mode for Multiple Application

Support Wireless AP, Gateway, WiFi Repeater to meet with different installation requirement

Multiple Enryption Protection

Support SSID broadcast, SSID hidden, wireless MAC address filtering, Tag VLAN based on multi-SSID, multi-encryption like WEP encryption and WPA/WPA2, WPA-PSK/WPA2-PSK, to ensure the whole network safety.

Intelligent bandwidth

Bandwidth control is flexibly enabled according to the actual bandwidth utilization. It can control the bidirectional bandwidth for each host (IP) in the network and ensure the network is always smooth.
WEB Management and Captive Portal

Built in DHCP server, distribut IP address automatically. Support WEB management, firmware upgrading and cloud server access for captive portal

Spec:

Hardware:
Chipset	RTL8197DN+RTL8812AR+RTL8192ER+RTL8211E
Standard	802.11ac/b/g/n, MIMO technology
Memory	128MB DDR2 RAM
Flash	16MB
Interface	1 * 10/100 /1000Mbps RJ45 WAN Port
	4 * 10/100/1000 Mbps RJ45 LAN Port
	1 * Reset button, press 15 seconds to revert to default setting
	2 * USB port to support SAMBA,DLNA server
Antenna	6PCS dual band 6dBi antenna
Power consumption	No USB Flash<17W ; With USB Flash<22W
Power Adapter	DC 12V--2 A
Size	198mm X128mm X 26mm
Weight	501.6g
RF Data
Frequency	2.4G:802.11b/g/n: 5GHz:802.11a/n/ac
Frequency	2.4GHz,5GHz
Country code	FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN
Modulation	OFDM = BPSK,QPSK, 16-QAM, 64-QAM
Modulation	DSSS = DBPSK, DQPSK, CCK
Throughput	1200 Mbps
