Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | FR3800 |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000 PCS/ WEEK |
Material: | Metal | Chipset: | Realtek RTL8197FH |
---|---|---|---|
Flash: | 16M | RAM: | 128M |
Power: | 300mW | Port: | 1*10/100/1000 WAN, 4*10/100/1000 LAN |
High Light: | 11ac wifi router,dual band wireless router |
FR3800 is an high power home use wireless router with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN/LAN port, 500mW high power with 5dBi omni antenna, high wall-pass-through capacity supply full Wi-Fi range for home, the fast Ethernet data rate make more than 80 end users can access into FR3800 to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
It is easy to setup this smart wireless router by PC or mobile phone after login by IP address/domain/QR code scanning; It support gateway, wireless AP, Wi-Fi Repeater multiple operation mode, Smart QoS and variety advanced security, beamforming, auto channel select and Wi-Fi channel analyzer, make it work in different networking for different application, guaranty it run stably for a long time.
More Intelligent Functions
Parental Control: Parents can reasonably to plan when their kids can access into internet and control the internet time; Can scientifically manage the content the children browse to against the unhealthy content;
Guest Wi-Fi: Create an independent Wi-Fi for guests or visitors, to keep your main network safety.
Smart QoS: Reasonable to allocate the bandwidth, to supply a smooth wireless networking.
Timing Wi-Fi/LED on/off: It is easy to set the Wi-Fi SSID and LED indicator on/off in certain time, to meet different use habits.
Spec:
Model | FR3800 |
CPU | Realtek RTL8197FH+RTL8812BRH+RTL8367RB |
Flash | 16MB |
RAM | 128MB |
Frequency |
2.4GHz: 2.4GHz-2.483GHz 5.8GHz: 5150MHz~5825MHz |
Standard | 802.11ac/b/g/n, 2T2R MIMO |
Data Rate | 1200Mbps |
Modulation | OFDM = BPSK,QPSK,16-QAM,64-QAM; DSSS = DBPSK,DQPSK,CCK |
RF Power |
2.4G: HT20: @MCS7:22.5±2DB, @MCS0:25.5±2DB. HT40: @MCS7:22±2DB, @MCS0:25±2DB. 11g: @54M:23.5±2DB, @6M:26±2DB. 11b: @11M:26.5±2DB, @1M:28.5±2DB. 5.8G: 11a: @54M 22±2DB, @6M 25±2DB. HT20: @MCS7 21±2DB, @MCS0 24±2DB. HT40: @MCS7 21±2DB, @MCS0 24±2DB. HT80: @MCS9 19±2DB, @MCS0 22±2DB. |
Receive Sensitivity |
2.4G: HT20: -72dbm@MCS7, -92dbm@MCS0. HT40: -70dbm@MCS7, -90dbm@MCS0. 11g: -74dbm@54Mbps, -92dbm@6Mbps. 11b: -88dbm@11Mbps, -95dbm@1Mbps. 5.8G: 11a: -74dbm@54Mbps; -92dbm@ 6Mbps. HT20: -72dbm@MCS7, -90dbm@MCS0. HT40: -70dbm@MCS7, -88dbm@MCS0. HT80: - 55dbm@MCS9. |
EVM |
802.11ac: ≤-32 DB 802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
Frequency Deviation | ±20ppm |
Max Users | 128 |

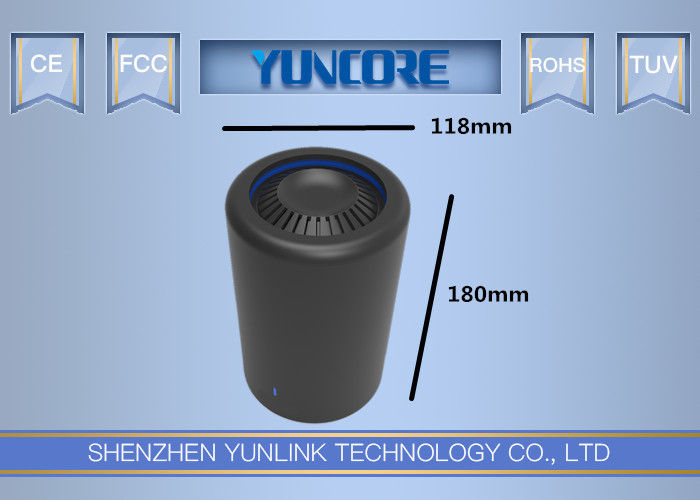

Size | 118mm * 118mm *180mm |
Interface | 3*10/100/1000Mbps LAN ports |
1*10/100/1000Mbps WAN port | |
1*USB2.0 Port | |
1*DC 12V 1.5A | |
1*Reset button: Press in 10 seconds: reset to default settings; | |
1*Power adapter (Short press: Power on,Long press: Power off) | |
Operation Mode | Gateway, Wi-Fi Repeater, Wireless AP |
LED Indicator | WAN, LAN, SYS (system), NET(Ethernet) |
Antenna | Build in 5dBi high-gain omni antennas |
Power consume | <20W |
Environment | Working Temperature: -20°C to 50°C |
Storage Temperature: -40°C to 70°C | |
Humidity:5%~95%(Non-condensing) |

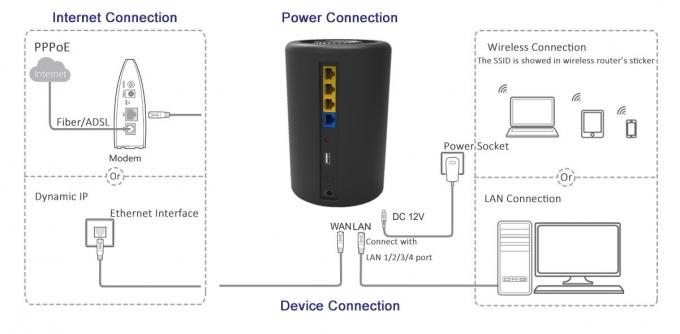

Working Diagram:
