Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | PW550 |
Minimum Order Quantity: | 1000 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 10000 PCS/ WEEK |
Material: | ABS | Chipset: | QCA9531 |
---|---|---|---|
Band: | 2.4G 300Mbps | Interface: | 2*10/100M RJ45 Port, 1*RJ11 Port |
Color: | White | Working Mode: | AP, Repeater, Gateway |
High Light: | wall mount access point,wall plate wireless access point |

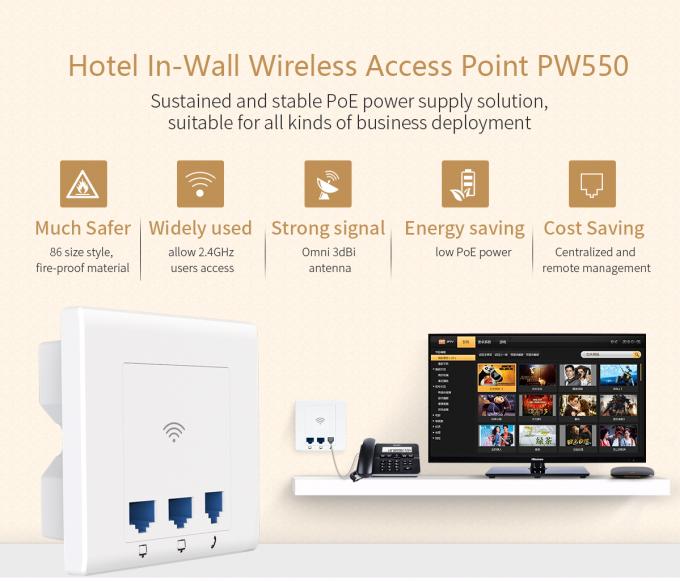

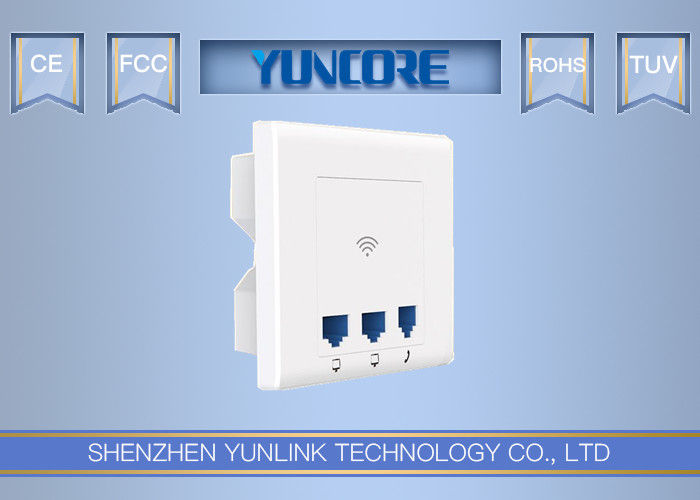

2.4G 300Mbps In Wall Wireless Access Point , 802.3af POE Support 802.1Q Vlan Support
Main Features:
1.In wall design, match with the cassette with size of 86mm or 75mm, easy to complete the hotel Wi-Fi cover.
2.Compliant with IEEE 802.11b/g/n standard, 300Mbps in data rate, more faster in download, more freely in internet surf.
3.Support 802.3af PoE, can be powered by any powered by any 802.3af Power over Ethernet equipment, cost savely
4.It has 3 RJ45 ports,two on the front allowing wired access for guests, TV, and one on the rear for network service and power provision. Then the RJ11 port can work with telephone for voice function.
5.Support AC Controller and cloud server for easy management or advertisement or portal authentication: the IT staff can sets up different IP addresses, ESSID and manages each room’s AP at the same time.
They can remotely add, set up, monitor, delete, upgrade firmware via the AC controller through computer.
Spec:
Wireless | |
Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Data Rate |
11n: 300Mbps 11g: 54Mbps 11b: 11Mbps |
Frequency Range | 2.4-2.4835GHz |
Wireless Transmit Power |
11n @MCS7:14±2DB, @MCS0:16±2DB. 11g @54M:15±2DB, @6M:17±2DB. 11b @11M:18±2DB, @1M:20±2DB. |
Modulation Type | OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK |
Receive Sensitivity |
11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. |
EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
PPM | ±20ppm |
MAX Users | 64 |
Operation Mode | Gateway, AP, Repeater |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA /WPA2-Personal (TKIP/AES) |
System Requirements | Windows 7/Vista/XP/2000,Mac OS®, Linux or Android OS |
Hardware | |
Chipset | Qualcomm QCA9531 |
Flash | 16M |
SDRAM | 64M |
Interfaces | 3 x 10/100Mbps LAN/WAN Port, 1 x RJ11 port |
Button | Reset Button |
Antenna | MIMO 2dBi Build-in omni-directional Antenna |
Power Supply | 802.3af PoE |
Dimensions( W x D x H ) | 86mm*86mm*35mm |
Others | |
Operating Temperature | -20°C~55°C |
Storage Temperature | -40°C~70°C |
Relative Humidity | 10% ~ 90%, Non-condensing |
Storage Humidity | 5%~95%, Non-condensing |
Certifications | RoHS |
Package Contents |
1 x in wall AP 1 x Quick Installation Guide 1 x setting accessory |
Working Diagram:
Installation:
