Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | FIT-MB525 |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000 PCS/ WEEK |
Material: | ABS | Chipset: | QCA9531 |
---|---|---|---|
Band: | 2.4G 300Mbps | Interface: | 1* 10/100M RJ45 Port, 1* RJ11 Port, 1* Switch |
Color: | White | Working Mode: | AP, Repeater, Gateway |
High Light: | in wall wifi access point,wall mount access point |

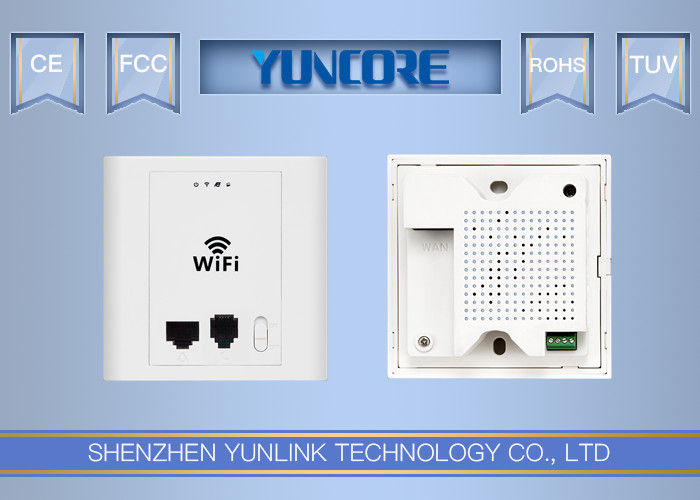

802.3af 48V Passive PoE with LAN Port Phone Port In Wall Wireless Access Point
PW525 is 300Mbps in-wall wireless access point with RJ11 telephone port, support IEEE 802.3af PoE, install it to 86mm in-wall jack, plug and play, easy to install and provide a more stable and faster WiFi coverage in hotels, dormitory and office; It work with AC Controller, config wireless AP's SSID, password, RF power, channel, VLAN on a single PC, simple to maintenance; Then it work with cloud server for advertisement and captive portal authentication for more business value.
Features
2.4GHz, 300Mbps High Speed
Comply with IEEE 802.11b/g/n technology, 2T2R, 300Mbps data rate, achieve faster download/upload speed, make online surfing arbitrary.
Multiple ports Wireless Access Point
300Mbps data rate with RJ45 ports and RJ11 telephone port, transmission wireless signal and supply data for telephone, easy to setup and manage.
In-wall Design and PoE Support
86mm EU in-wall jack design, seamless embed into existing decoration; Then WAN port support 48V active PoE, zero configure by AC controller, plug and play, make installation and maintenance so easy.
Multiple Operation Mode for Multiple Application
Support Wireless AP, Gateway, WiFi Repeater to meet with different installation requirement in hotel, school, dormitory,hospital...
Centralized Management and Captive Portal
Work with WLAN Controller, centralized configuration and management, easy to achieve installation and maintenance Work with Cloud Server to do remote monitor, advertisement and Captive Portal authentication for more business value.
Spec:
Wireless | |
Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Data Rate |
11n: 300Mbps 11g: 54Mbps 11b: 11Mbps |
Frequency Range | 2.4-2.4835GHz |
Wireless Transmit Power |
11n @MCS7:14±2DB, @MCS0:16±2DB. 11g @54M:15±2DB, @6M:17±2DB. 11b @11M:18±2DB, @1M:20±2DB. |
Modulation Type | OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK |
Receive Sensitivity |
11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. |
EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
PPM | ±20ppm |
MAX Users | 64 |
Operation Mode | AP |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA /WPA2-Personal (TKIP/AES) |
Operation Mode | Router, AP, Repeater |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA /WPA2-Personal (TKIP/AES) |
System Requirements | Windows 7/Vista/XP/2000,Mac OS®, Linux or Android OS |
Hardware | |
Chipset | Qualcomm QCA9531 |
Flash | 16M |
SDRAM | 64M |
Interfaces |
2 x 10/100Mbps LAN/WAN Port 1 x RJ11 port |
Button | Reset Button |
Antenna | MIMO 3dBi Build-in omni-directional Antenna |
Power Supply | 802.3af PoE |
Dimensions( W x D x H ) | 86*86*68mm |
Others | |
Operating Temperature | -20°C~55°C |
Storage Temperature | -40°C~70°C |
Relative Humidity | 10% ~ 90%, Non-condensing |
Storage Humidity | 5%~95%, Non-condensing |
Certifications | RoHS |
Package Contents |
1 x in wall AP 1 x Quick Installation Guide 1 x setting accessory |
Working Diagram:
Installation:
