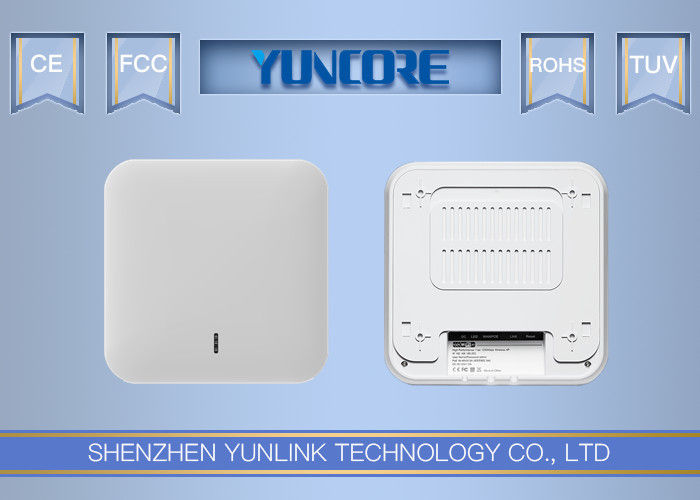

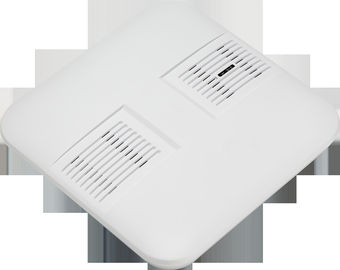

Dual-Band AC1200 2.4Ghz+5Ghz Ceiling-Mounted Access Point With QCA9563 CPU - Model XD6900

Dual-Band AC1200 2.4Ghz+5Ghz Ceiling-Mounted Access Point With QCA9563 CPU - Model XD6900

    • Dual-Band AC1200 2.4Ghz+5Ghz Ceiling-Mounted Access Point With QCA9563 CPU - Model XD6900
    • Dual-Band AC1200 2.4Ghz+5Ghz Ceiling-Mounted Access Point With QCA9563 CPU - Model XD6900
    • Dual-Band AC1200 2.4Ghz+5Ghz Ceiling-Mounted Access Point With QCA9563 CPU - Model XD6900
  • Dual-Band AC1200 2.4Ghz+5Ghz Ceiling-Mounted Access Point With QCA9563 CPU - Model XD6900

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE, FCC, ROHS, TUV
    Model Number: XD6900

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 PCS
    Price: Negotiable
    Packaging Details: Giftbox + Carton box
    Delivery Time: 4 working days
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 1000 PCS/ WEEK
    Contact Now
    Detailed Product Description
    Material: ABS Color: White
    Chipset: QCA9563 Flash: 16M
    RAM: 128M Band: 2.4G + 5.8G
    Power: 1000mW LED: Yes

    Dual Band 1200Mbps High Power WiFi AP 802.11ac Wireless Access Point



    XD6900 is an Qualcomm Chipset high power industrial Ceiling Wireless Access Point with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN & LAN port, fast Ethernet data rate make more than 100 end users can access into XD6900 to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks, widely be used in school, hospital, hotel, office, shipping mall...



    Main Features:

    • Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate
    • 1 10/100/1000Mbps WAN Port, 1 10/100/1000Mbps LAN Port, faster Ethernet.
    • 1000mW high power, build in 5dBi MIMO antenna, stronger signal strength, more wireless coverage, 16M Flash, 128M DDR2 RAM, more user, more stable
    • Support active IEEE 802.3at 48V PoE standard
    • Support SSID broadcasting, Muiti SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
    • Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
    • With function of build in firewall, IP filter, URL filter and MAC filter
    • Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
    • Support DDNS, VPN pass through, Port forwarding and DMZ host
    • Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security



    SPECIFICATION



    Wireless

    Standard

    802.11ac/b/g/n, MIMO technology

    Speed

    900Mbps compatible with 5.8GHz



    300Mbps b/g/n for 2.4GHz

    Modulation

    OFDM = BPSK,QPSK, 16-QAM, 64-QAM



    DSSS = DBPSK, DQPSK, CCK

    Channel

    Ch.1-13 for 2.4GHz



    Ch.36-165 for 5.8GHz

    Frequency band

    2.412Ghz-2.472 for 2.4GHz



    5.180Ghz-5.825Ghz for 5.8GHz

    Hareware



    Chipset

    Atheros QCA9563 + QCA9882 +QCA8334

    Memory

    128MB DDR2 RAM

    Flash

    16MB

    Interface

    1 * 10/100 /1000Mbps RJ45 WAN Port

    1 * 10/100 / 1000Mbps RJ45 LAN Port

    1 * Reset button, press 15 seconds to revert to default setting

    Antenna

    Build in 5dBi MIMO Antenna

    Power consumption

    30W(Full Load)

    Software



    Standard Version

    Bandwidth: 20Mhz, 20/40Mhz, 80Mhz

    Operation Mode

    Gateway, Wireless AP, Repeater, WISP

    SSID No

    4 SSID for 2.4G, 4SSID for 5.8G

    Factory Default Setting

    Yes

    Centralized Management by software

    Yes

    Firewall

    DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter

    IP and MAC Address Binding

    Protocols

    IPv4



    Working Diagram:



    Dual-Band AC1200 2.4Ghz+5Ghz Ceiling-Mounted Access Point With QCA9563 CPU - Model XD6900



    Dual-Band AC1200 2.4Ghz+5Ghz Ceiling-Mounted Access Point With QCA9563 CPU - Model XD6900
