Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FEE,ROHS |
Model Number: | XD6300 |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000PCS/ WEEK |
Chipset: | QCA531 | Flash: | 16M |
---|---|---|---|
RAM: | 64M | Standard: | IEEE802.11N/G/B |
Frequency: | 2.4GHz | Interface: | 10/100M WAN*1, 10/100M LAN*1 |
High Light: | wireless n access point,802.11 n ap |

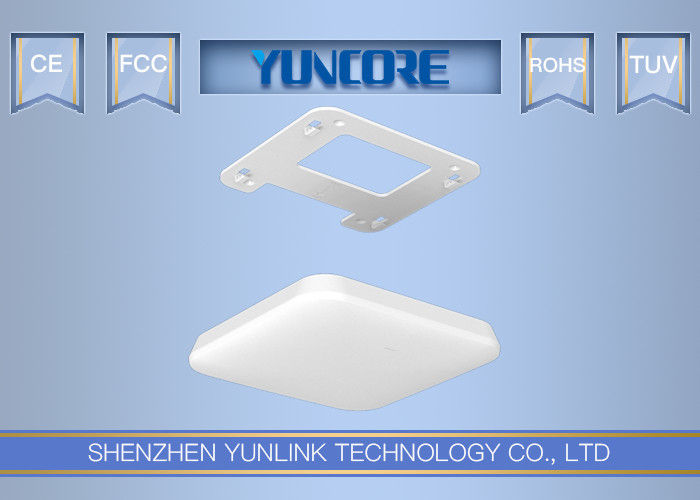

500mW High Power Celing AP with Gateway Repeater WISP AP Working Modes 802.1n Access Point
Features
300Mbps High Data Rate, high performance and adjustable RF Power
Equipped enterprise high performance Qualcomm Chipset, Comply IEEE 802.11n 2T2R MIMO Technology, 300Mbps high speed, allow all connected devices to achieve faster upload/download Ethernet. With powerful amplifier, improved the WiFi range for some area with small quantity wireless AP; Can cut down RF power to suit for some high density wireless AP area to avoid WiFi interference.
Power over Ethernet(PoE)
Integrated IEEE 802.3af Power over Ethernet (PoE), work with standard PoE switch, pluy and play, installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Multiple Operation Mode for Multiple Application
Support Wireless AP, Gateway, WiFi Repeater to meet with different installation requirements, such as Gateway for home use, WiFi Repeater to extend the exist WiFi signal to more range
Multi SSID, Tag VLAN, AC Controller Centralized Management, Cloud Server Captive Portal Authentication
Support Multi SSID up to 4, each SSID support tag VLAN for User isolation. Work with WLAN Controller, centralized configuration in IP address, SSID,Password, Tag VLAN, RF power adjustable, then remote management, easy to achieve WiFi Coverage and maintenance. Besides that, access into cloud server to do advertisement and Captive Portal authentication guest, to create more business value.
Spec:
Specification |
|
Hardware | |
MCU | Qualcomm QCA9531 |
RF | 2T2R, 300Mbps MIMO tech , comply with IEEE 802.11b/g/n standard |
Memory | 64MB DDR RAM |
Flash | 16MB |
Interface | 2 x RJ-45 for 10/100 Mbps WAN/LAN Port (WAN port support IEEE 802.3af POE) |
1 x Reset button(Reset & Factory Defaults) | |
1 x Power DC Jack | |
Power
|
XD6300-P24: DC: 12V/1A; POE: Passive 24V PoE, 110V/220V XD6300-P48: DC: 12V/1A; POE: IEEE 802.3af 48V PoE, 110V/220V |
Antenna | Build in 2PCS Omni 5dbi antenna |
Size | 168mmX168mmX32mm |
RF | |
Frequency | 802.11b/g/n, 533MHz |
2.4~2.4835GHz | |
U.S.,Europe and Japan product covering 2.400 to 2.4835 GHz,programmable for different country regulations | |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
DSSS = DBPSK, DQPSK, CCK | |
Throughput | 300Mbps |
Sensitivity |
802.11n: -70dbm@MCS7, -88dbm@MCS0. 802.11g: -72dbm@54Mbps, -88dbm@6Mbps. 802.11b: -85dbm@11Mbps, -94dbm@1Mbps. |
RF Power |
802.11n: @MCS7:22±2DB, @MCS0:24±2DB. 802.11g: @54M:23±2DB, @6M:25±2DB. 802.11b: @11M:26±2DB, @1M:28±2DB |
EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
PPM | ±20ppm |
Max Uses | 64+ |

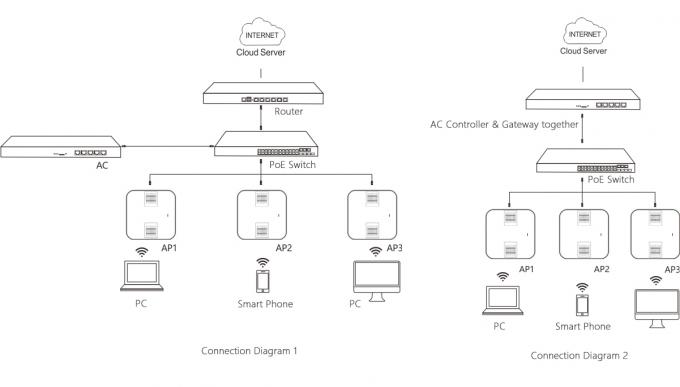

Working Diagram:

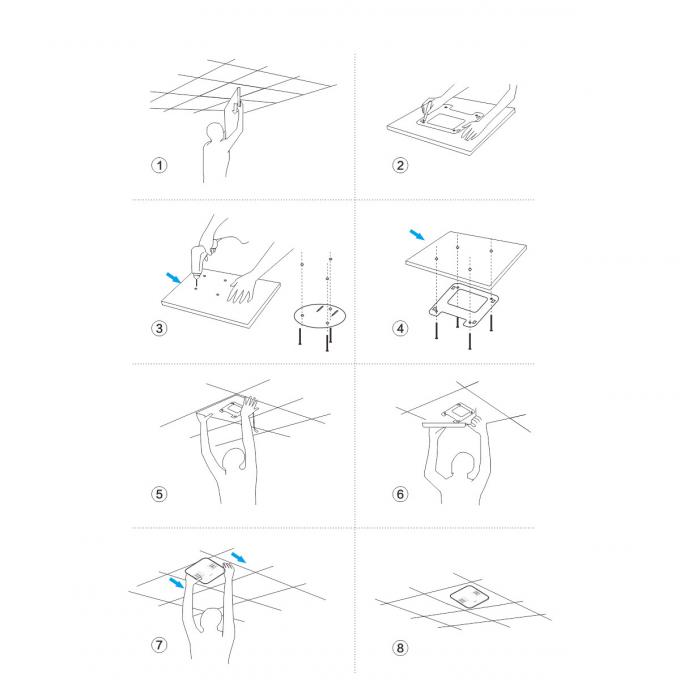

Installation:
