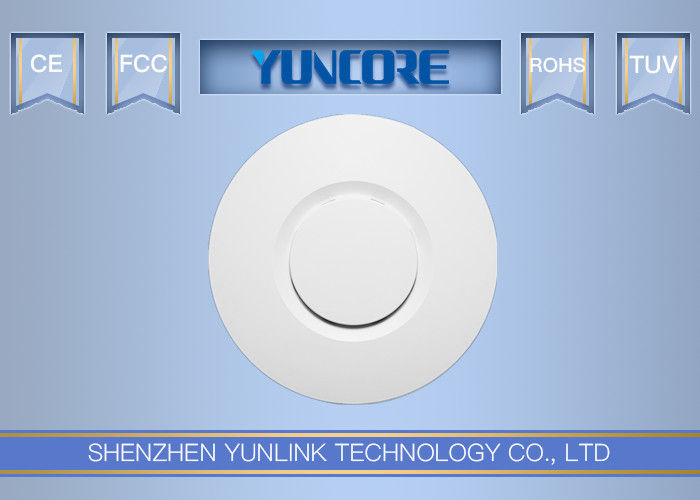

300Mbps High Speed 802.11 N Access Point Ceiling Mounted For Home / Hotel

300Mbps High Speed 802.11 N Access Point Ceiling Mounted For Home / Hotel

300Mbps High Speed 802.11 N Access Point Ceiling Mounted For Home / Hotel

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FEE,ROHS
Model Number: XD9318Q

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000PCS/ WEEK
Contact Now
Detailed Product Description
Chipset: QCA9531 Flash: 16M
RAM: 64M Standard: IEEE802.11N/G/B
Frequency: 2.4GHz Interface: 10/100M WAN*1

300Mbps Ceiling Mount Design Perfect WiFi Coverage for Home Hotel 802.11n Access Point

XD9318Q is smart type indoor ceiling access point, it designed for home environment or business-class, such as hotels, coffee house, shops, university campus... With 2T2R 2.4G MINO technology, the data rate can be 300Mbps, max 32 users access into together.With the aesthetic ceiling design, XD9318Q can be deployed easily on ceiling or in crawlspaces. Integrated 802.3af Power over Ethernet (PoE) allows installation in areas where power outlets are not readily available.


Main Features:


300Mbps high speed

Compliant with IEEE 802.11b/g/n, providing fast speed 300Mbps on 2.4G frequency, which make files transferring faster and video streaming smoother.Just enjoy yourself and link your world by this wireless device.


Power Over Ethernet

The PoE port on the back panel allows both power and data to be carried over a single Ethernet cable to XD9318Q with the PoE adapter or PoE switch. It make XD9318Q can be deployed in area where power outlets are scarce or not available.


Multi Operation mode to meet with different requirement

It with Wireless Access Point, Router and wifi repeater operation mode, can be used for wifi coverage, home router or extend the exist wifi signal.


Support AC management, VLAN, easy to manage

XD9318Q work with VLAN switch, make different SSID with different VLAN for networking safety.
Besides that, it work with AC controller to do centralized management like IP address distribute, SSID, password, channel, RF power modify...

Then if required, this wireless AP can access into cloud server for remote management, advertisement, captive portal authentication, which more professional in business environment application





Product SPEC

Chipset Qualcomm QCA9531
Standard 802.11N, 2T2R 300M MIMO Technology
Flash 16MB
Interface 1*10/100 Mbps RJ45 Port, IEEE 802.3af 48V PoE Support
1*Reset Button, rest to default
Size 15.7*3.6cm
Antenna 2.4G MIMO OMNI antenna, 3dBi
Power POE 48V
RF Data
Frequency 802.11b/g/n:
U.S.,Europe and Japan product covering 2.400 to 2.4835 GHz,programmable for different country regulations
Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
Throughput 300 Mbps
Sensitivity 802.11n(2.4GHz) 802.11g 802.11b
-92dBm @ MCS0 - 92dBm @ 6Mbps - 95dBm @ 1Mbps
-70dBm @ MCS7 - 72dBm @ 54Mbps - 90dBm @ 11Mbps
-92dBm @ MCS8
-70dBm @ MCS15
Output Power   Radio1(WLAN1)
802.11n(2.4GHz)(± 1.5dBm) 802.11g(± 1.5dBm) 802.11b(±1.5dBm)
25dBm@ MCS0~2/MCS8~10 25dBm @ 6~24Mbps 25dBm @1~11Mbps
25dBm @ MCS3/MCS11 24dBm @ 36Mbps
24dBm @ MCS4/MCS12 23dBm @ 48Mbps
23dBm @ MCS5/MCS13 23dBm @ 54Mbps
23dBm @ MCS6/MCS14
22dBm @ MCS7/MCS15


Working Diagram:


300Mbps High Speed 802.11 N Access Point Ceiling Mounted For Home / Hotel


300Mbps High Speed 802.11 N Access Point Ceiling Mounted For Home / Hotel
