Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FEE,ROHS |
Model Number: | A930H-P48 |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000PCS/ WEEK |
Chipset: | QCA531 | Flash: | 16M |
---|---|---|---|
RAM: | 128M | Standard: | IEEE802.11N/G/B |
Frequency: | 2.4GHz | Interface: | 10/100M WAN*1, 10/100M LAN*1 |
High Light: | wireless n access point,802.11 n ap |
A930H-P48 is a 300Mbps high power Ceiling Wireless Access Point with Qualcomm QCA9531 Chipset. Comply with IEEE 802.11b/g/n standard, 300Mbps data rate, with MIMO omni antenna inside, 500mW high RF power together with IEEE 802.3af PoE, easy to set up in different environment.
Stylish Ceiling Mount Design
Housed in a stylish ceiling mountable case, the A930 can be installed on a wall or ceiling to blends in nicely with most interior decorations in a modern hotel. With big space and Installed highly on ceiling, it extends optimum wireless signal to multiple neighboring rooms and better heat radiation.
High Power and Whole Coverage
With 500mW high power, Internally equipped with 2X2 multiple-input, multiple-output (MIMO) 5dBi omni antennas improve range and maximize data rates. Field tested to wirelessly cover 6~8 hotel rooms at an indoor operating distance of 50 meters and allow simultaneous accesses by up to 50 users. Up to 300Mbps wireless rate ensures multiple users an adequate level of service.
Power over Ethernet
The device has integrated Power over Ethernet (PoE) for easy installation and lower cost, with IEEE 802.3af PoE, it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
WLAN Controller & Cloud Server support
This A930H-P48 work with Access Control System, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore...
Spec:
Specification |
|
Hardware | |
MCU | Qualcomm QCA9531 |
RF | 2T2R, 300Mbps MIMO tech , comply with IEEE 802.11b/g/n standard |
Memory | 128MB DDR RAM |
Flash | 16MB |
Interface | 2 x RJ-45 for 10/100Mbps WAN/LAN Port (WAN port support IEEE 802.3af POE) |
1 x Reset button(Reset & Factory Defaults) | |
1 x Power DC Jack | |
Power
|
DC: 12V/1A; POE: IEEE 802.3af 48V PoE, 110V/220V |
Antenna | Build in 2PCS Omni 5dbi antenna |

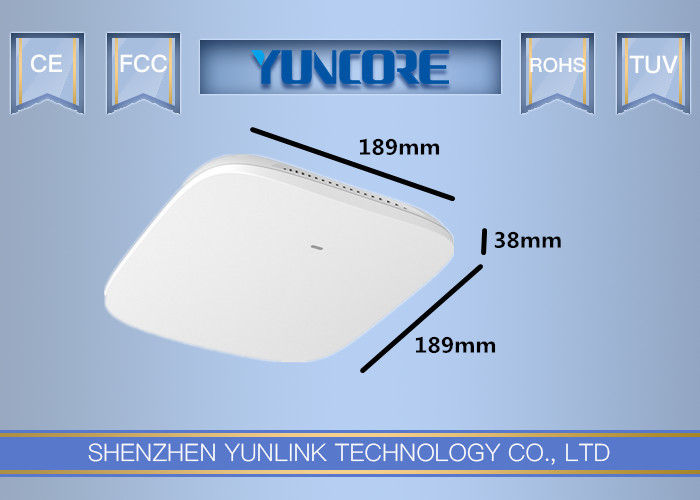

Size | 18.9*3.85cm |
RF | |
Frequency | 802.11b/g/n, 533MHz |
2.4~2.4835GHz | |
U.S.,Europe and Japan product covering 2.400 to 2.4835 GHz,programmable for different country regulations | |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
DSSS = DBPSK, DQPSK, CCK | |
Throughput | 300Mbps |
Sensitivity |
802.11n: -70dbm@MCS7, -88dbm@MCS0. 802.11g: -72dbm@54Mbps, -88dbm@6Mbps. 802.11b: -85dbm@11Mbps, -94dbm@1Mbps. |
RF Power |
802.11n: @MCS7:22±2DB, @MCS0:24±2DB. 802.11g: @54M:23±2DB, @6M:25±2DB. 802.11b: @11M:26±2DB, @1M:28±2DB |
EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
PPM | ±20ppm |
Max Uses | 64+ |
Working Diagram:
Installation:
