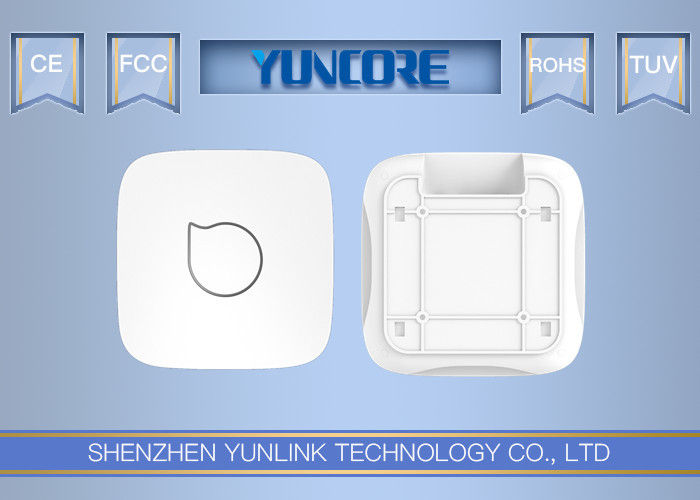

Qualcomm Chipset 5dbi Build In POE Access Point Omnidirectional Antenna

Qualcomm Chipset 5dbi Build In POE Access Point Omnidirectional Antenna

Qualcomm Chipset 5dbi Build In POE Access Point Omnidirectional Antenna

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FEE,ROHS
Model Number: A930H-P48

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000PCS/ WEEK
Contact Now
Detailed Product Description
Chipset: QCA531 Flash: 16M
RAM: 128M Standard: IEEE802.11N/G/B
Frequency: 2.4GHz Interface: 10/100M WAN*1, 10/100M LAN*1

Qualcomm Chipset 5dbi Omnidirectional Antenna Build In 500mW High Power Wireless Access Point

A930H-P48 is a 300Mbps high power Ceiling Wireless Access Point with Qualcomm QCA9531 Chipset. Comply with IEEE 802.11b/g/n standard, 300Mbps data rate, with MIMO omni antenna inside, 500mW high RF power together with IEEE 802.3af PoE, easy to set up in different environment.


Ceiling Mount case, Hardware with Qualcomm chipset, 16M Flash, 128M DDR2, firmware work with AC controller for central management and captive portal authentication function, it designed specifically for business-class environments such as hotels, airports, coffee shops, shopping centers, sporting venues, and university campus.

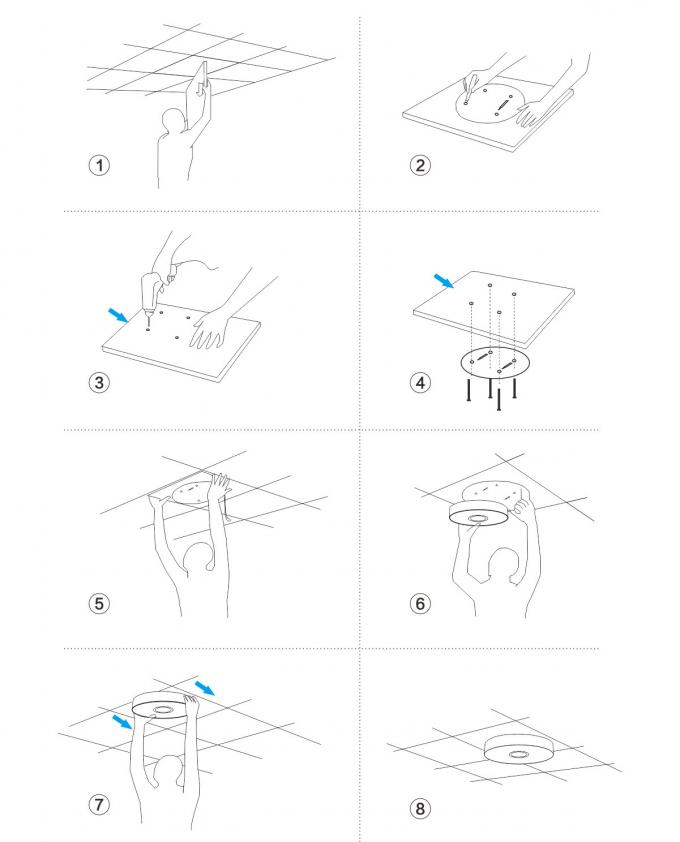

Stylish Ceiling Mount Design

Housed in a stylish ceiling mountable case, the A930 can be installed on a wall or ceiling to blends in nicely with most interior decorations in a modern hotel. With big space and Installed highly on ceiling, it extends optimum wireless signal to multiple neighboring rooms and better heat radiation.


High Power and Whole Coverage

With 500mW high power, Internally equipped with 2X2 multiple-input, multiple-output (MIMO) 5dBi omni antennas improve range and maximize data rates. Field tested to wirelessly cover 6~8 hotel rooms at an indoor operating distance of 50 meters and allow simultaneous accesses by up to 50 users. Up to 300Mbps wireless rate ensures multiple users an adequate level of service.


Power over Ethernet

The device has integrated Power over Ethernet (PoE) for easy installation and lower cost, with IEEE 802.3af PoE, it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.


WLAN Controller & Cloud Server support

This A930H-P48 work with Access Control System, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore...






MCU Qualcomm QCA9531
RF 2T2R, 300Mbps MIMO tech , comply with IEEE 802.11b/g/n standard
Memory 128MB DDR RAM
Flash 16MB
Interface 2 x RJ-45 for 10/100Mbps WAN/LAN Port (WAN port support IEEE 802.3af POE)
1 x Reset button(Reset & Factory Defaults)
1 x Power DC Jack



DC: 12V/1A; POE: IEEE 802.3af 48V PoE, 110V/220V
Antenna Build in 2PCS Omni 5dbi antenna
Size 18.9*3.85cm
Frequency 802.11b/g/n, 533MHz
U.S.,Europe and Japan product covering 2.400 to 2.4835 GHz,programmable for different country regulations
Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
Throughput 300Mbps

802.11n: -70dbm@MCS7, -88dbm@MCS0.

802.11g: -72dbm@54Mbps, -88dbm@6Mbps.

802.11b: -85dbm@11Mbps, -94dbm@1Mbps.

RF Power

802.11n: @MCS7:22±2DB, @MCS0:24±2DB.

802.11g: @54M:23±2DB, @6M:25±2DB.

802.11b: @11M:26±2DB, @1M:28±2DB


802.11n: ≤-28 DB

802.11g: ≤-25 DB

802.11b: ≤-10 DB

PPM ±20ppm
Max Uses 64+

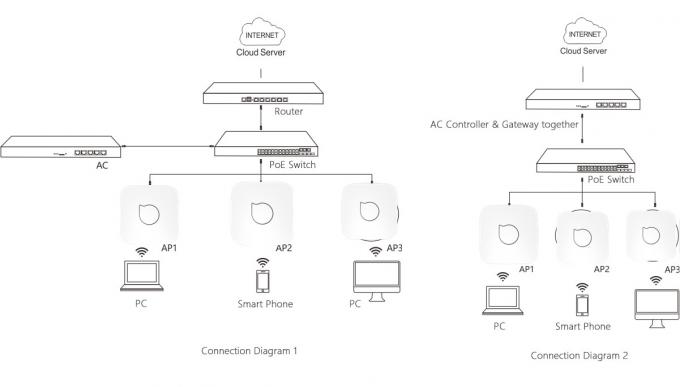

Working Diagram:

Qualcomm Chipset 5dbi Build In POE Access Point Omnidirectional Antenna


Qualcomm Chipset 5dbi Build In POE Access Point Omnidirectional Antenna
