Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | CPE150 |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000PCS/ WEEK |
Material: | ABS | Chipset: | QCA9531 |
---|---|---|---|
Flash: | 16M | RAM: | 64M |
WiFi Standard: | IEEE802.11b/g/n | PoE: | 24V Passive |
High Light: | 2.4 ghz wireless cpe,wireless wifi bridge |

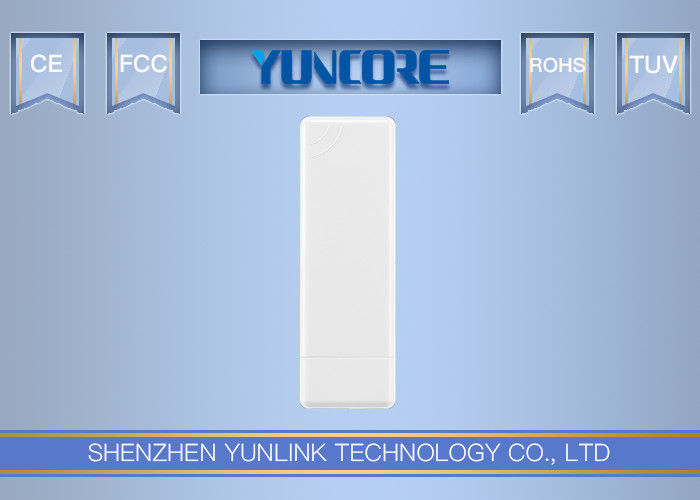

150Mbps Outdoor WiFi Repeter with Qualcomm Chipset , 2.4G 1000mW Outdoor CPE
CPE150/CPE-150SR is an 2.4GHz, 150Mbps high power outdoor CPE/AP. Comply with IEEE 802.11b/g/n standard, adopt Qualcomm QCA9531 chipset, 12dBi high gain antenna, 1000mW high power, the transmit/receive wireless distance more than 3000 meters.
It support Wireless AP, Gateway, WISP, Wireless Bridge, WDS operation mode, effective solution for PTP, PTMP application and outdoor long range wifi coverage application. What’s more, there is WDS button on the case, easy to do PTP,PTMP connection by press the WDS button and reset button, no need to access into product GUI.
CPE150/CPE-150SR with ABS waterproof, dustproof and sunscreen shell, temperature adaptive, PCB board with ESD protection, it can work in most of outdoor environment with stable performance; Meantime, it support Power over Ethernet, support passive PoE, easy in setup even no power socket nearby, ideal for outdoor use;
And it support special frequency from 2.312GHz to 2.4835GHz, total 27 channels, together with WiFi channel analysis tool, it make this outdoor CPE choose the best channel to avoid the WiFi Interference, guarantee the stable wireless connection in different outdoor environment.
CPE150/CPE-150SR with LED signal light to show signal strength, easy to find a suitable place of outdoor CPE, then firmware comply with AC controller system and Cloud Management System, which helpful in central management and data setting, to implement Advertisement and authentication function, save much human work and cost, more professional in outdoor wireless networking solution.
Spec:
Specification: |
|
Hardware: | |
Chipset | Qualcomm QCA9531 |
Wireless | 802.11N, 2T2R 150M MIMO Technology |
Memory | 64MB RAM (128MB available by extra cost) |
Flash | 16MB Flash |
Interface | 2 * 10/100 Mbps RJ45 Port, support 12~24V PoE |
1 * Reset Button | |
1 * DC Jack, 12V/1A | |
Antenna | 12dBi Panel Antenna |
LED Light | POWER WIFI WAN LAN |
Size | 230X75X40MM |
Power | 12V(POE 24V)/1A;110V/220V |
RF Data | |
RF Data | 802.11b/g/n: |
2.312GHz to 2.4835GHz | |
Korea, Japan, ETSI, FCC, Debug | |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
DSSS = DBPSK, DQPSK, CCK | |
Data Rate | 150 Mbps |
Receive Sensitivity |
802.11n:25±2 DB 802.11g:26±2 DB 802.11b:27±2 DB . |
RF Output Power |
802.11n: -88dbm@MCS0,-65dbm@MCS7 802.11g: -88dbm@6Mbps;-70dbm@54Mbps 802.11b: -94dbm@1Mbps; -80dbm@11Mbps |
EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
PPM | ±20ppm |
End Users | 64 |
Working diagram:
