| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | CPE130 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000PCS/ WEEK |
| Material: | ABS | Chipset: | QCA9531 |
|---|---|---|---|
| Flash: | 16M | RAM: | 64M |
| WiFi Standard: | IEEE802.11b/g/n | PoE: | 24V Passive |
| High Light: | 2.4 ghz wireless cpe,wireless wifi bridge |
||
300mW 16M /64M WEP WPA-PSK WPA2-PSK IEEE802.11b / g / n high gain Outdoor CPE

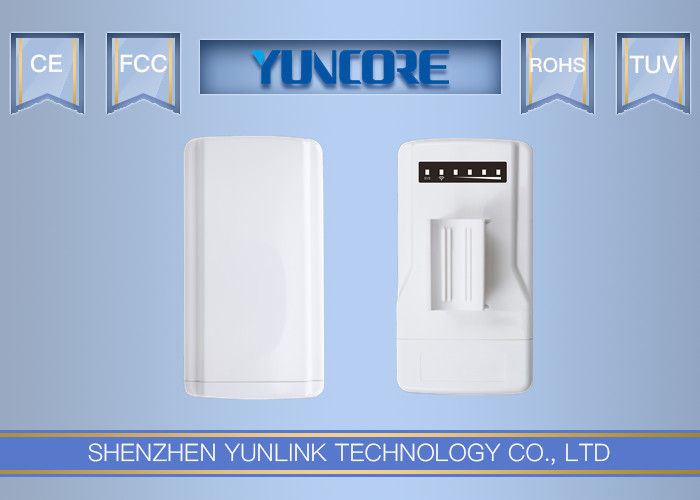

CPE130 is an economic outdoor CPE/AP with 300Mbps data rate, Qualcomm Chipset and build in 11dBi panel antenna; It supports Wireless AP, Gateway, WISP, Wireless Bridge, WDS operation mode, effective solution for PTP, PTMP application and outdoor long range wifi coverage application. CPE130 with ABS waterproof, dustproof, temperature adaptive and lightening proof housing and antennas, can work in different environment. It supports 24V passive PoE and Remote Reset on Web for easy installation and maintance!
Features:
More RF Power, More WiFi Range
CPE130 with 23dBm High RF power, equipped with 11dBi Panel Antenna, Point to Point WiFi distance up to 1000 meters; Meanwhile, the RF Power is adjustable for different country to comply with different WiFi Standards.
Multi operation mode for different application
Support multi operation mode such as Gateway, Wireless AP, Repeater, WISP, WDS mode to meet with multi application for different application
Power over Ethernet(PoE)
Support 24V passive PoE for some areas where power outlets are not readily available
Excellent Outdoor Weatherproof and Lighting Protection
With an outdoor waterproof and dustproof enclosure,buidling in lighting protection IC, CPE130 can be used in various weather conditions for stable performance
Spec:
|
Specification: |
|
| Hardware: | |
| Chipset | Qualcomm QCA 9531 |
| Wireless | 802.11N, 2T2R 300M MIMO Technology |
| Memory | 64MB DDR2 RAM (128MB available by extra cost) |
| Flash | 16MB |
| Interface | 1*10/100Mbps RJ45 Port, support 12~24V PoE |
| 1*WDS Switch Button | |
| 1 Reset Button | |
| Antenna | 11dBi Panel Antenna, V: 60o L: 33o |
| LED Light | SYS, WIFI, Signal Strength |
| Size | 176*95*40MM |
| Power | POE 24V/0.5A |
| RF Data | |
| RF Data | 802.11b/g/n: |
| 2.312GHz to 2.4835GHz | |
| Korea, Japan, ETSI, FCC, Debug | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Data Rate | 300 Mbps |
| RF Power |
802.11n:19±2 DB 802.11g:20±2 DB 802.11b:22±2 DB . |
| Receive Sensitivity |
802.11n: -88dbm@MCS0,-65dbm@MCS7 802.11g: -88dbm@6Mbps;-70dbm@54Mbps 802.11b: -94dbm@1Mbps; -80dbm@11Mbps |
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
| PPM | ±20ppm |
| End Users | 64 |
Working Diagram:
