| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | CPE90 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000PCS/ WEEK |
| Material: | ABS | Chipset: | Realtek RTL8197FNT |
|---|---|---|---|
| Flash: | 8M | RAM: | 64M |
| WiFi Standard: | IEEE802.11b/g/n | PoE: | 24V Passive |
| WDS: | Support | TDMA: | Support |
| High Light: | outdoor wifi repeater,wireless wifi bridge |
||

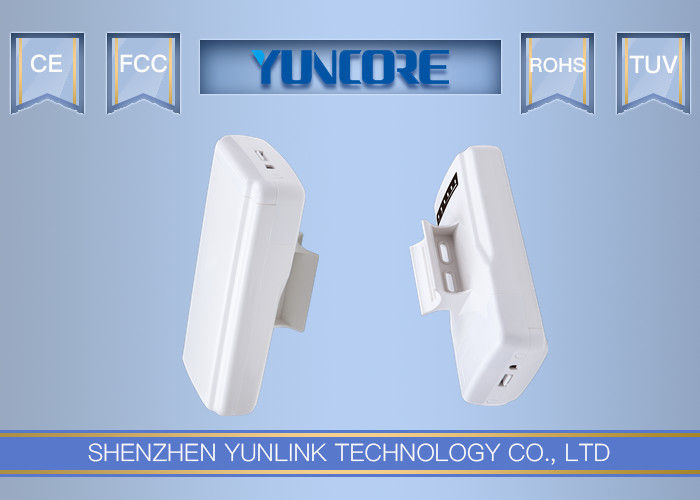

300Mbps Data Rate TDMA support More stable Signal in Terrible Condition 2.4 GHz Outdoor CPE
CPE90 is an very cheap 300Mbps outdoor CPE/AP support TDMA. It comply with IEEE 802.11b/g/n standard,, with 11dBi dual polarized high gain antenna, the PTP/PTMP distance is more than 1000 meters.
It support Wireless AP, Gateway, WISP, Wireless Bridge, WDS operation mode, to suit for variety application environment. Besides that, there is a WDS switch button on the case, very easy to do the WDS PTP/PTMP connection by press the WDS switch button and reset button, zero configuration, save much human work and cost, more professional in outdoor wireless networking solution.
CPE90 support HI-MAX TDMA Technology, use polling to solve the hidden node and resource waste problem between the CPE and base station, provide low latency, high throughput in PTP/PTMP application like IP camera, long range WiFi Transmission.
CPE90 with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it support 24V passive PoE, easy in setup even no power socket nearby, ideal for outdoor use;
CPE90 with LED signal lights to show signal strength, easy to find a suitable place of outdoor CPE, save much human work and cost, more professional in outdoor wireless networking solution.
Spec:
|
Specification: |
|
| Hardware: | |
| Chipset | Realtek RTL8197FNT |
| Wireless | 802.11N, 2T2R 300M MIMO Technology |
| Memory | 64MB RAM |
| Flash | 8MB |
| Interface | 1*10/100Mbps RJ45 Port, support 12~24V PoE |
| 1*WDS Switch Button to do WDS connection | |
| 1*DC Injector, 12V/1A | |
| 1*Reset Button | |
| Antenna | 11dBi Panel Antenna, V: 60o L: 33o |
| LED Light | SYS, WIFI, Signal Strength |
| Size | 176*95*40MM |
| Power | POE 24V/0.5A |
| RF Data | |
| RF Data | 802.11b/g/n: |
| 2.4GHz to 2.4835GHz | |
| Korea, Japan, ETSI, FCC, Debug | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Data Rate | 300 Mbps |
| RF Power |
11n: @MCS7:15±2DB, @MCS0:17±2DB. 11g: @54M:16±2DB, @6M:18±2DB. 11b: @11M:18±2DB, @1M:20±2DB. |
| Receive Sensitivity |
11n: -65dbm@MCS7, -88dbm@MCS0. 11g: -70dbm@54Mbps, -88dbm@6Mbps. 11b: -80dbm@11Mbps, -94dbm@1Mbps, |
| EVM |
11n: ≤-28 DB 11g: ≤-25 DB 11b: ≤-10 DB |
| PPM | ±20ppm |
Working Diagram:
