| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | SR3200 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | Metal | Chipset: | QCA9563 |
|---|---|---|---|
| Flash: | 16M | RAM: | 128M |
| Power: | 1000mW | Port: | 1*10/100/1000 WAN, 4*10/100/1000 LAN |
| High Light: | dual band wireless router,ac1200 wireless router |
||

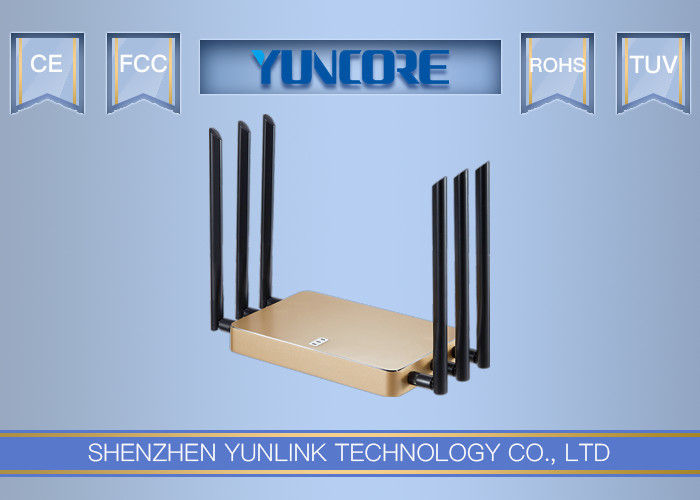

SR3200 is an Atheros Chipset high power industrial use Wireless Router with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equiped Gigabit WAN/LAN port, fast ethernet data rate make more than 100 end users can acccess into SR3200 to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks, widely be used in school, hospital, hotel, office, shipping mall...
Designed in two line Power Amplifier on PCB board, the power can be 1000mW high power, with external 6PCS detachable high gain antenna, greatly increase the wifi range and supply the stable wifi signal for users.
This equipment with double USB 2.0 Port, support DLNA function, Samba and FTP file transfer, it united all connected digital device into an entertainment network, convenient for image, picture and video transmission.
Work with Cloud management system to do central management, advertisement and different portal authentication for more professional business application, can do accounting if need for some shop, coffee room...
Main Features:
Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate
1*10/100/1000Mbps Gigabit WAN Port, 5*10/100/1000Mbps Gigabit LAN Ports 1000mW high power, 6PCS detachable 6dBi antenna, stronger signal strenght, more wireless coverage, 16M Flash, 128M DDR2 RAM, more user, more stable
With 2*USB 2.0 port, support SAMBA, FTP server, it is a wireless router can sharing files
Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
With function of build in firewall, IP filter, URL filter and MAC filter
Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
Support DDNS, VPN pass through, Port forwarding and DMZ host
Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
Support SSID broadcasting, multi SSID, VLAN tag and Chinese SSID
Spec:
| Hardware: | |||||||||
| Chipset | Atheros QCA9563 + QCA9882 +QCA8334 | ||||||||
| Standard | 802.11ac/b/g/n, MIMO technology | ||||||||
| Memory | 128MB DDR2 RAM | ||||||||
| Flash | 16MB | ||||||||
| Interface | 1 * 10/100 /1000Mbps RJ45 WAN Port | ||||||||
| 4 * 10/100/1000Mbps RJ45 LAN Port | |||||||||
| 2 * USB 2.0 Port | |||||||||
| 1 * Reset button, press 15 seconds to revert to default setting | |||||||||
| Antenna | 6PCS external 6dBi antenna | ||||||||
| Power consumption | No USB Flash<17W ; With USB Flash<23W | ||||||||
| Size | 198mm X128mm X 26mm | ||||||||
| Weight | 501.6g | ||||||||
| RF Data | |||||||||
|
Frequency |
2.4G:802.11b/g/n: 5GHz:802.11a/n/ac | ||||||||
| 2.4GHz,5GHz | |||||||||
| Country code | FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN | ||||||||
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM | ||||||||
| DSSS = DBPSK, DQPSK, CCK | |||||||||
| Throughput | 1200 Mbps | ||||||||
| Receive Sensitivity & RF Power | |||||||||
| Frequency | Mode | Data Rate | Standard | Result(dBm) | RF Power (±1.0dBm) | ||||
| CH1 | CH6 | CH11 | |||||||
| 2.4GHz | 11b | 1Mbps | ≤-83 | -99 | -99 | -99 | 29dBm | ||
| 11Mbps | ≤-76 | -92 | -92 | -92 | |||||
| 11g | 6Mbps | ≤-85 | -95 | -95 | -95 | 29dBm | |||
| 54Mbps | ≤-68 | -82 | -82 | -82 | 27dBm | ||||
| 11n HT20 | MCS0/8 | ≤-85 | -95 | -95 | -95 | 28dBm | |||
| MCS7/15 | ≤-67 | -79 | -77 | -78 | 26dBm | ||||
| 11n HT40 | MSC0/8 | ≤-82 | -93 | -93 | -93 | 28dBm | |||
| MCS7/15 | ≤-64 | -75 | -75 | -75 | 26dBm | ||||
| 5GHz | CH36 | CH100 | CH149 | ||||||
| 11a | 6Mbps | ≤-85dBm | -92 | -92 | -92 |
26dBm 23dBm |
|||
| 54Mbps | ≤ -68dBm | -75 | -75 | -75 | |||||
| 11n HT20 | MCS0/8 | ≤ -85dBm | -91 | -91 | -91 | 26dBm | |||
| MCS7/15 | ≤ -64dBm | -72 | -72 | -72 | 23dBm | ||||
| CH38 | CH110 | CH151 | |||||||
| 11n HT40 | MCS0/8 | ≤ -82dBm | -88 | -88 | -88 | 26dBm | |||
| MCS7/15 | ≤ -61dBm | -70 | -70 | -70 | 23dBm | ||||
| CH36 | CH100 | CH149 | |||||||
|
11ac HT20 |
MCS0 | ≤-82 | -92 | -92 | -92 | 26dBm | |||
| MCS8 | ≤-60 | -70 | -70 | -69 | 23dBm | ||||
| CH38 | CH110 | CH151 | |||||||
|
11ac HT40
|
MCS0 | ≤-79 | -90 | -89 | -89 | 25dBm | |||
|
MCS9
|
≤-60
|
-66
|
-65
|
-65
|
22dBm
|
||||
| CH42 | CH106 | CH155 | |||||||
|
11ac HT80 |
MCS0 | ≤-79 | -87 | -87 | -87 | 24dBm | |||
| MCS9 | ≤-54 | -62 | -61 | -61 | 21dBm | ||||
| Firmware Features: | |||||||||
| Operation mode | Wireless AP, Gateway, WISP, WiFi Repeater | ||||||||
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) | ||||||||
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption | ||||||||
| SSID | Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G) | ||||||||
| Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
||||||||
| Protocols | IPv4 | ||||||||
| Others: | |||||||||
| Package Contents |
1200Mbps Dual Band wireless Router Ethernet Cable Quick Installation Guide Power Adapter 6PCS antenna |
||||||||
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux | ||||||||
| Environment | Operating Temperature: 0~40 ℃(32 ℉~104℉) Storage Temperature: -40~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
||||||||
| Management | Firmware GUI , Remote Management, WLAN Controller, Cloud Management System | ||||||||
Working Diagram:
