100mW 11AC Wireless Router 802.11ac 1200Mbps Mesh WAVE2 8M Flash ABS Material

100mW 11AC Wireless Router 802.11ac 1200Mbps Mesh WAVE2 8M Flash ABS Material

100mW 11AC Wireless Router 802.11ac 1200Mbps Mesh WAVE2 8M Flash ABS Material

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: FR800-M1

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: ABS Chipset: Realtek RTL8197FH
Flash: 8M RAM: 64M
Power: 100mW Port: 1*10/100/1000 WAN, 3*10/100 LAN

11ac, MU-MIMO, dual band, 1200Mbps data rate, Gigabit WAN Port
Comply with 802.11ac standard, dual 2.4G and 5G band, 1200Mbps data rate with Gigabit WAN port, it support MU-MIMO Wave2.0 Technology, less Wi-Fi interference and high data rate ensure FR800 to provide more stable and faster network access.

Multiple operation mode, simple to establish Mesh network.
FR800-M1 support Gateway, sub-node operation mode, flexible to choose gateway operation mode for small house wireless coverage, or pairs with gateway and sub-node operation mode, press reset button to establish the mesh network for big house wireless coverage, suit for different environment and application.

Varieties of Login method, Intelligent and Simple to setup
It is easy to Log in this wireless router by IP address, domain name, scanning QR code, users can configure and manage it by PC, Mobile phone; Easy and intelligent to finish the configuration according to setup wizard in three steps, plug and play.

Smart to learn and remember dial account and password
If dial account or password is forgotten, FR800 with smart learning function, can automatically save this account and password from the router you once used and connect to the internet success.

Beamforming Technology
FR800-M1 support beamforming technology, focus wireless router’s signal toward each end user, concentrating the data transmission so that more data reach to the targeted users instead of radiating out into the atmosphere, to improve video streaming, voice quality and other bandwidth and latency-sensitive transmission.

Build in Wi-Fi Analyzer, automatic to select the optimal channel
The Wi-Fi analyzer will analysis the channel of surrounding wireless signal, helpful to select the optimal channel, effectively avoid Wi-Fi signal drop and latency.

Advanced Security and Firewall functions
FR800-M1 support varieties of encryption like WPA/WPA2/TKIP/AES, SSID hidden, firewall like IP/Port filtering URL filtering, MAC address filtering and port forwarding, DMZ to defend networking threats.

Mesh Support
FR800-M1 support Mesh Technology, with self-organize and self-configure ability, reduce the installation overhead, enable dynamic distribution of workloads, particularly in the even that a few nodes should fail, turn contributes to fault-tolerance and reduce maintenance costs.

Spec:


ModelFR800-M1
CPURTL8197FH + RTL8812BRH + RTL8211F
Flash8MB
RAM64MB
Frequency

2.4GHz: 2400MHz-2484MHz
5.8GHz: 5180MHz~5825MHz

Standard802.11ac/b/g/n, 2T2R MIMO
Data Rate1200Mbps
ModulationOFDM = BPSK,QPSK,16-QAM,64-QAM; DSSS = DBPSK,DQPSK,CCK
2.4G RF Power802.11b11M18±2DB1M20±2DB
802.11g54M17±2DB6M19±2DB
802.11n HT20MCS716±2DBMCS018±2DB
802.11n HT40MCS715±2DBMCS017±2DB
5G RF Power802.11a54M17±2DB6M20±2DB
802.11n HT20MCS716±2DBMCS019±2DB
802.11n HT40MCS715±2DBMCS019±2DB.
802.11ac HT80MCS914±2DBMCS017±2DB
2.4G Receive Sensitivity802.11b11M-85dbm1M-94dbm
802.11g54M-72dbm6M-90dbm
802.11n HT20MCS7-70dbmMCS0-88dbm
802.11n HT40MCS7-68dbmMCS0-86dbm
5G Receive Sensitivity802.11a54M-74dbm6M-90dbm
802.11n HT20MCS7-72dbmMCS0 .-88dbm
802.11n HT40MCS7-68dbmMCS0 .-86dbm
802.11ac HT80MCS9-58dbmMCS0 .-80dbm
EVM

2.4G: 802.11b: ≤-10dB; 802.11g: ≤-25dB ; 802.11n: ≤-28dB
5G: 802.11a: ≤-25dB; 802.11n: ≤-28dB; 802.11ac: ≤-32dB

Frequency Deviation±20ppm
Max Users325
Size218*148*33MM
Interface3*10/100Mbps LAN ports
1*10/100/1000Mbps WAN port
1*DC 12V 0.5A

1*Reset button: Press in 10 seconds: reset to default settings;
Press 1 second on gateway side, establish mesh network

Operation ModeGateway, Sub-Node
LED IndicatorPWR(Power), WAN, LAN, NET(Ethernet)
AntennaBuild in 5dBi high-gain omni antennas
Power consume<6W
EnvironmentWorking Temperature: -30°C to 55°C
Storage Temperature: -40°C to 70°C
Humidity:5%~95%(Non-condensing)

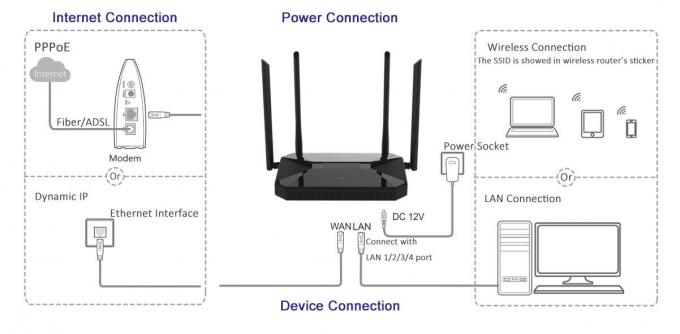

Working Diagram:

100mW 11AC Wireless Router 802.11ac 1200Mbps Mesh WAVE2 8M Flash ABS Material
