Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | CPE830SR |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000PCS/ WEEK |
Material: | ABS | Chipset: | QCA9531 |
---|---|---|---|
Flash: | 16M | RAM: | 64M |
WiFi Standard: | IEEE802.11b/g/n | PoE: | 24V Passive |
Band: | 2.312GHz -2.4835GHz | WDS: | Support |
High Light: | outdoor wifi repeater,wireless wifi bridge |

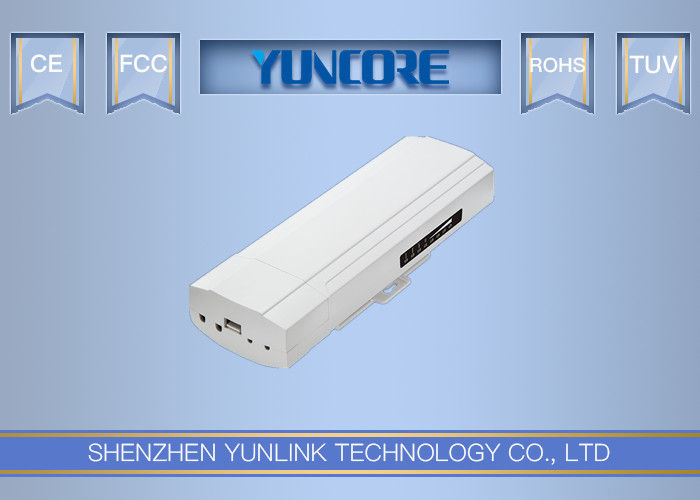

300mW 14dBi Directional Panel Antenna PTP PTmP 2.4 GHz Outdoor WiFi Bridge / Repeater
CPE830/CPE-830SR is an 2.4GHz 300Mbps high power outdoor CPE/AP. Comply with IEEE 802.11b/g/n standard, adopt Qualcomm QCA9531chipset, 14dBi dual polarized high gain antenna, 1000mW/29dBm high power, the transmit/receive wireless distance more than 3500 meters.
It support Wireless AP, Gateway, WISP, Wireless Bridge, WDS operation mode, effective solution for PTP, PTMP application and outdoor long range Wi-Fi coverage application.What’s more, there is WDS button on the case, easy to do PTP,PTMP connection by press the WDS button and reset button, no need to access into product GUI.
And it support special frequency from 2.312GHz to 2.4835GHz, total 27 channels, together with Wi-Fi channel analysis tool, it make this outdoor CPE choose the best channel to avoid the Wi-Fi Interference, to guarantee the stable wireless connection.
CPE-830 with ABS waterproof, dustproof and sunscreen shell, temperature adaptive; Then PCB board support ESD protection, Meantime, it support Power over Ethernet, support passive PoE, easy in setup even no power socket nearby, ideal for outdoor use;
Besides that, CPE-830 with LED signal lights to show signal strength, easy to find a suitable place of outdoor CPE, then firmware comply with AC controller system and Cloud Management System, which helpful in central management and data setting, to implement Advertisement and authentication function, save much human work and cost, more professional in outdoor wireless networking solution.
Spec:
Specification: |
|
Hardware: | |
Chipset | Qualcomm 9531 |
Wireless | 802.11N, 2T2R 300M MIMO Technology |
Memory | 64MB DDR2 RAM (128MB available by extra cost) |
Flash | 16MB |
Interface | 2 *10/100 Mbps RJ45 Port, support 12~24V PoE |
1 * Reset Button | |
1 * DC Injector, 12V/1A | |
1 * WDS Switch Button | |
Antenna | 14dBi Panel Antenna |
LED Light | POWER Wi-Fi WAN LAN S1(GPIO9) S2(GPIO14) S3(GPIO11) S4(GPIO12) |
Size | 260mm * 85mm * 45mm |
Power | 12V(POE 24V)/1A;110V/220V |
RF Data | |
RF Data | 802.11b/g/n: |
2.312GHz to 2.4835GHz | |
Korea, Japan, ETSI, FCC, Debug | |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
DSSS = DBPSK, DQPSK, CCK | |
Data Rate | 300Mbps |
Receive Sensitivity |
802.11n: @MCS7:25±2DB, @MCS0:27±2DB. 802.11g: @54M:26±2DB, @6M:28±2DB. 802.11b: @11M:27±2DB, @1M:29±2DB |
RF Output Power |
802.11n: -70dbm@MCS7, -88dbm@MCS0. 802.11g: -72dbm@54Mbps, -88dbm@6Mbps. 802.11b: -85dbm@11Mbps, -94dbm@1Mbps. |
EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
PPM | ±20ppm |
End User | 64 |
Working Diagram:
