| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | CPE100 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000PCS/ WEEK |
| Material: | ABS | Chipset: | QCA9531 |
|---|---|---|---|
| Flash: | 16M | RAM: | 64M |
| WiFi Standard: | IEEE802.11b/g/n | PoE: | 24V Passive |
| High Light: | 2.4 ghz wireless cpe,outdoor wifi repeater |
||

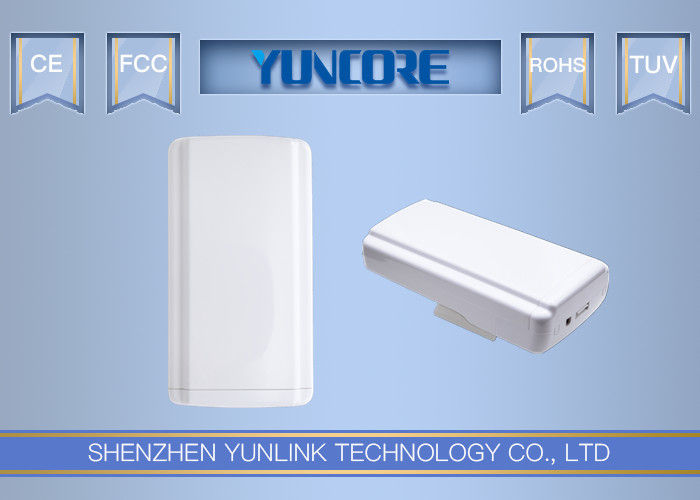

150Mbps 300mW Waterproof and Dustproof 2.4GHz Outdoor Wireless Repeater
CPE100 is an economic outdoor CPE/AP with 150Mbps data rate, Qualcomm Chipset and build in 11dBi panel antenna; It supports Wireless AP, Gateway, WISP, Wireless Bridge, WDS operation mode, effective solution for PTP, PTMP application and outdoor long range wifi coverage application.CPE100 with ABS waterproof, dustproof, temperature adaptive and lightening proof housing and antennas, can work in different environment. It supports 24V passive PoE and Remote Reset on Web for easy installation and maintance!
Features:
More RF Power, More WiFi Range
CPE100 with 23dBm High RF power, equipped with 11dBi Panel Antenna, Point to Point WiFi distance up to 1000 meters;Meanwhile, the RF Power is adjustable for different country to comply with different WiFi Standards.
Multi operation mode for different application
Support multi operation mode such as Gateway, Wireless AP, Repeater, WISP, WDS mode to meet with multi application for different application
Power over Ethernet(PoE)
Support 24V passive PoE for some areas where power outlets are not readily available
Excellent Outdoor Weatherproof and Lighting Protection
With an outdoor waterproof and dustproof enclosure,buidling in lighting protection IC, CPE100 can be used in various weather conditions for stable performance
Spec:
|
Specification: |
|
| Hardware: | |
| Chipset | Qualcomm QCA9531 |
| Wireless | 802.11N, 2T2R 150M MIMO Technology |
| Memory | 64MB RAM |
| Flash | 16MB Flash |
| Interface | 1*10/100 Mbps RJ45 Port, support 12~24V PoE |
| 1 * WDS Switch Button | |
| 1 * DC Injector | |
| 1 * Reset Button | |
| Antenna | 11dBi Panel Antenna, V: 60o L: 33o |
| LED Light | SYS WIFI Signal strength |
| Size | 176*95*40MM |
| Power | POE: 24V/0.5A |
| RF Data | |
| Frequency | 802.11b/g/n: |
| 2.312GHz to 2.4835GHz | |
| Korea, Japan, ETSI, FCC, Debug | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Data Rate | 150 Mbps |
| RF Power |
802.11n:19±2 DB 802.11g:20±2 DB 802.11b:22±2 DB . |
| Receive Sensitivity |
802.11n: -88dbm@MCS0,-65dbm@MCS7 802.11g: -88dbm@6Mbps;-70dbm@54Mbps 802.11b: -94dbm@1Mbps; -80dbm@11Mbps |
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
| PPM | ±20ppm |
| End Users | 64 |
Working diagram:
