| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | T830 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | Metal | Chipset: | Qualcomm QCA9531 |
|---|---|---|---|
| Flash: | 16M | RAM: | 128M |
| Band: | 2.4GHz-2.483GHz | Port: | 1*10/100 WAN, 4*10/100 LAN |
| High Light: | 300mbps wireless n router,wireless n dual band router |
||

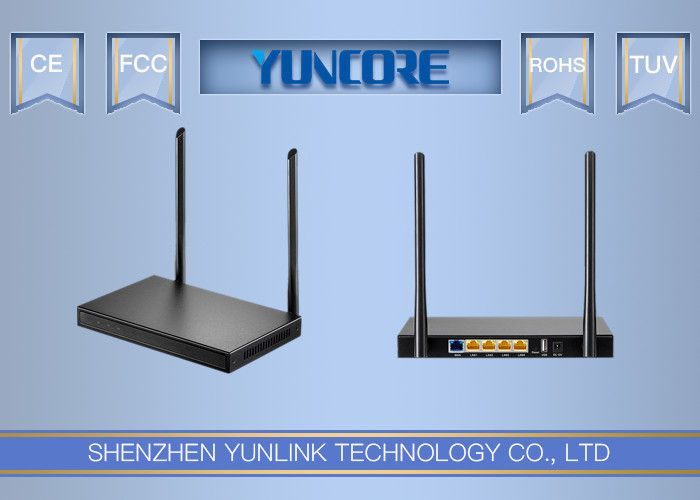

T830 is a high power Wireless router with Qualcomm QCA9531 chipset, MIPS networking processor. It with 1 WAN port, 4 LAN port, 1 USB 2.0 port for wireless storage function, solution for enterprise, home, company, office’s WiFi networking. It’s compatible with IEEE 802.11b/g/n standard, the data rate reach to 300Mbps. With external power amplifier, 800mW high power, 2PCS external 5dBi WiFi antenna, WiFi signal more stable and longer range.
T830 with gateway, wireless AP, WiFi repeater operation mode, multi function together with SAMBA, FTP file sharing functions, it is a first choice for enterprise, home or some public WiFi.
Main Features:
Multiple operation modes suit for multiple application request
Support Gateway, Wireless AP, Repeater operation modes, support PPPoE, Dynamic IP, static IP to get access internet, or extend the exist wireless network to dead corner, to meet with different users’ different needs
Multiple Enryption Protection
Support SSID broadcast, SSID hidden, wireless MAC address filtering, Tag VLAN based on multi-SSID, multi-encryption like WEP encryption and WPA/WPA2, WPA-PSK/WPA2-PSK, to ensure the whole network safety.
Multiple Firewall
Integrated high level firewall like IP Filtering, URL Filtering, MAC Filtering. Support DDNS, VPN Pass through, Port Forwarding and DMZ Host.
WEB Management and Captive Portal
Built in DHCP server, distribut IP address automatically. Support WEB management, firmware upgrading and cloud server access for captive portal
USB WiFi Storage
With USB 2.0 port, support SAMBA, FTP server, DLNA, easy to sharing files from USB flash
Spec:
|
Product SPEC |
||||
| Hardware | ||||
| Chipset | Qualcomm QCA9531, 300Mbps | |||
| Standard | 802.11N, 2T2R 300M MIMO Technology | |||
| Memory | 64M DDR2 RAM | |||
| Flash | 16M | |||
| Interface | 1 10/100 Mbps WAN Port | |||
| 4 10/100 Mbps LAN Port | ||||
| 1 Button: WPS button in short pressing, Reset button in 15 seconds pressing | ||||
| 1 DC Jack | ||||
| 1 USB Port, support SAMBA and FTP Server | ||||
| Antenna | 2PCS 2.4G Omni 5dBi detachable antenna | |||
| Power | <12W | |||
| DC Power | DC 12V----1.5A | |||
| Dimensions | 198mm X129mm X 28mm | |||
| Weight | 758g | |||
| RF Data | ||||
|
Frequency |
802.11b/g/n: | |||
| 2.4~2.4835GHz | ||||
| Korea,Japan,ETSI,FCC channel | ||||
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM | |||
| DSSS = DBPSK, DQPSK, CCK | ||||
| Throughput | 300 Mbps | |||
| Sensitivity | 802.11n(2.4GHz) | 802.11g | 802.11b | |
| -90dBm @ MCS0 | - 90dBm @ 6Mbps | - 95dBm @ 1Mbps | ||
| -72dBm @ MCS7 | - 72dBm @ 54Mbps | - 90dBm @ 11Mbps | ||
| -90dBm @ MCS8 | ||||
| -68dBm @ MCS15 | ||||
| Output Power | 802.11n(2.4GHz)(± 1.5dBm) | 802.11g(± 1.5dBm) | 802.11b(±1.5dBm) | |
| 28dBm@ MCS0~2/MCS8~10 | 28dBm @ 6~24Mbps | 28dBm @1~11Mbps | ||
| 28dBm @ MCS3/MCS11 | 27dBm @ 36Mbps | |||
| 27dBm @ MCS4/MCS12 | 27dBm @ 48Mbps | |||
| 27dBm @ MCS5/MCS13 | 26dBm @ 54Mbps | |||
| 26dBm @ MCS6/MCS14 | ||||
| 26dBm @ MCS7/MCS15 | ||||
Working Diagram:
