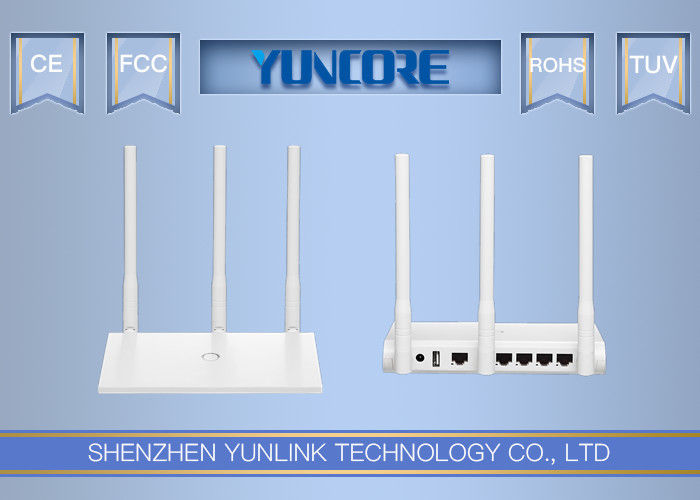

300Mbps 5dBi 11n Wireless Router , High Gain MIMO Antenna 2T2R 802.11 Wifi Router

300Mbps 5dBi 11n Wireless Router , High Gain MIMO Antenna 2T2R 802.11 Wifi Router

300Mbps 5dBi 11n Wireless Router , High Gain MIMO Antenna 2T2R 802.11 Wifi Router

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: MT876

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: ABS Chipset: MTK 7620N
Flash: 8M RAM: 64M
Band: 2.4GHz-2.483GHz Port: 1*10/100 WAN, 4*10/100 LAN

300Mbps 5dBi High Gain MIMO Antenna 2T2R 802.11n Wireless Router / Repeater

MT876 is a home use wireless router with 300Mbps data rate,it comply with IEEE 802.11n(draft 2.0), IEEE 802.11g, IEEE 802.11b standar, 1*10/100Mbps WAN port, 4*10/100Mbps LAN ports, 5dBi undetachable MIMO Antenna, support AP, Gateway, repeater mode, mainly install at home for WiFi coverage.

Feature:

2T2R MIMO technology, 2.4GHz, 300Mbps high speed

MT876 comply with IEEE 802.11b/g/n standard, 2.4GHz, fast data rate up to 300Mbps, 2 times Ethernet speed than 150Mbps wireless router, more users access

High Performance Hardware and Firmware Function

With WPS button to configure MT876 easily , with USB port and support DLNA, Samba and TFTP server to share files easily, support Multi SSID, tag VLAN for network isolation, support different firewall to protect the whole network safty.

WEB Management and Cloud Server Remote Management

MT876 with friendly web management page, very easy to configure; It can access into cloud server for remote management like reboot/reset/data configure. If need, it can achieve advertisement and captive portal authentication function.

Spec:

Standard IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,CSMA/CA,CSMA/CD,TCP/IP,DHCP,ICMP,NAT,PPPoE
Interface

LAN 4 10/100M Auto MDI/MDIX RJ45 ports.;

WAN 1 10/100M Auto MDI/MDIX RJ45 port

WPS Reset button

USB 2.0 port

Frequency Band 2.4GHz-2.4835GHz
Data Rate

11n: 300/270/243/216/162/108/81/54/27Mbps

135/121.5/108/81/54/40.5/27/13.5Mbps

130/117/104/78/52/39/26/13Mbps

65/58.5/52/39/26/19.5/13/6.5Mbps

11g: 54/48/36/24/18/12/9/6M(adaptive)

11b: 11/5.5/2/1M(adaptive)

Wireless Transmit power

11b: 20±1 dBm

11g:: 16±1 dBm

11n:: 15±1 dBm)

Transmission Distance Indoor :100m
Access Protocol CSMA/CA,CSMA/CD,TCP/IP,ICMP,NAT,PPPoE, DHCP , Wired static , Wifi Client ,UDP, DDNS,
Security WEP 64/128bit;MAC based Association; SSID broadcast disable; Wi-Fi Protection Access (TBD),WPA,WPA2, Built-in firewall
RF Output Power(Typical) 802.11n:15dBm for OFDM mode
802.11g: 17dBm for OFDM mode
802.11b: 20dBm fro CCK mode
Receive Sensitivity

11n : -70dBm@10% PER

11g : -70dBm@10% PER

11b: -85dBm@8% PER

Channels:

2412~2462 MHz (US) 11 channels

2412~2472 MHz (EU) 13 channels

2412~2484 MHz (Japan) 14 channels

WLAN Modulation Scheme BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
SDRAM 64M
Flash 8M
Antenna three un-detachable 5dBi Antenna
LED POWER, Internet, Wlan, Lan/Wan, External power supply
Operation Temperature 0°C ~ 40°C ambient temperature
Storage Temperature -20% ~ 70% ambient temperature
Humidity 10% ~ 90% (Non-condensing)
Power (Output DC5V, 1A;Input 110V/220V)
Support system Windows® 2000, XP 32/64, Vista 32/64, Linux,MAC,Windows 7



Working Diagram:

300Mbps 5dBi 11n Wireless Router , High Gain MIMO Antenna 2T2R 802.11 Wifi Router
