| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | AP80Q |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | ABS | Chipset: | Qualcomm QCA9531 |
|---|---|---|---|
| Band: | 2.4GHz-2.483GHz | Flash: | 16M |
| RAM: | 128M | Power: | 1000mW |
| High Light: | outdoor wireless ap,access point base station |
||

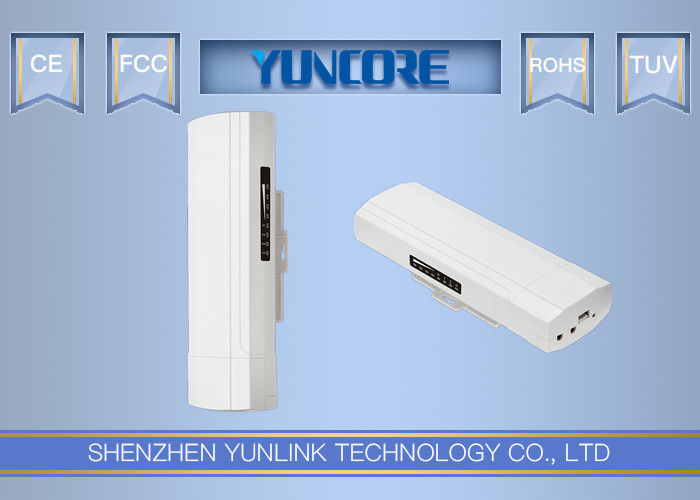

300Mbps High Power WiFi Coverage with Omni Antenna Build In Outdoor Wireless AP
AP80Q-SR is a 300Mbps outdoor wireless AP/CPE with Qualcomm Chipset, build in 5dBi omni antenna, more than 300 meters outdoor WiFi coverage. It support Wireless AP, Gateway, WISP, Wireless Bridge operation mode, effective solution outdoor WiFi coverage application. With an outdoor waterproof and dustproof enclosure,buidling in lighting protection IC, support 24V passive PoE, AP80Q-SR can be used in various weather conditions
Features:
28dBm High Power, More WiFi Range
AP80Q-SR's RF power can reach to 28dBm, equipped with 5dBi omni Antenna, the WiFi coverage distance up to 300 meters. Meanwhile, the RF Power is adjustable for different country to comply with different WiFi Standards in different country
Multi operation mode for different application environment.
AP80Q-SR support multi operation mode such as Gateway, Wireless AP, Repeater, WISP, WDS mode to meet with multi application for different environment.
PoE Power and DC Power together make installation flexibility
AP80Q-SR support 24V passive PoE for some areas where power outlets are not readily available; It support DC power supply for some area near to power socket, flexibility in installation
Excellent Outdoor Weatherproof and Lighting Protection
With an outdoor waterproof and dustproof enclosure,buidling in lighting protection IC, AP80Q-SR can be used in various weather conditions for stable performance
Sepc:
|
Specification: |
|
| Hardware: | |
| Chipset | Qualcomm QCA9531 |
| Wireless | 802.11N, 2T2R 300M MIMO Technology |
| Memory | 64MB |
| Flash | 16MB |
| Interface | 2 10/100 Mbps RJ45 Port, support 12~24V PoE |
| 1 Reset Button | |
| 1 DC Jack, 12V Power Supply | |
| Antenna | 5dBi omni Antenna |
| LED Light | POWER Wi-Fi WAN LAN S1(GPIO9) S2(GPIO14) S3(GPIO11) S4(GPIO12) |
| Size | L 257mm , W: 87mm, H: 38 mm |
| Power | 12V(POE 24V)/1A;110V/220V |
| RF Data | |
| RF Data | 802.11b/g/n: |
| 2.312GHz to 2.4835GHz | |
| Korea, Japan, ETSI, FCC | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Data Rate | 300 Mbps |
| Receive Sensitivity |
802.11n: -88dbm@MCS0,-70dbm@MCS7 802.11g: -88dbm@6Mbps;-70 dbm@54Mbps 802.11b: -94 dbm@1Mbps; -85 dbm@11Mbps |
| RF Output Power |
802.11n:24±2 DB 802.11g:24±2 DB 802.11b:26±2 DB |
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
| User QTY | 50 |
Working Diagram:
