| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | CPE3200 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 PCS/ WEEK |
| Material: | Metal+ABS | Chipset: | QCA9563 |
|---|---|---|---|
| Flash: | 16M | RAM: | 128M |
| Power: | 1000mW | PoE: | 802.3at |
| High Light: | point to point wifi bridge,long range outdoor cpe |
||

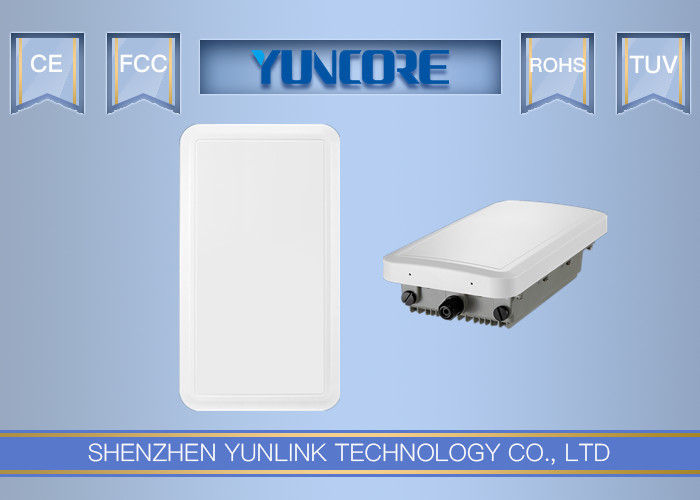

CPE3200 is an high power, high bandwidth industrial use Outdoor CPE with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), Gigabit WAN port, fast Ethernet data rate make more than 100 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks. In firmware, CPE3200 with user-friendly Web management interface, multi operation mode like AP, WDS, WISP, Gateway, multi security and variety of captive portal authentication function; In hardware, weatherproof and temperature adaptive shell, 28dBm High Power, 18dBi panel antenna, IEEE 802.3at PoE, CPE1200 can be installed in a harsh environment from -40 ° C to + 70 ° C to provide a high data throughput, high security and stability wireless network or video data transmission in long range.
Features:
1200Mbps high data rate and high conversion rate
CPE3200 compliant with 802.11ac technology to provide up to 1200Mbps data rate, 4 times faster wireless speed compared with 802.11b/g/ n products. Then the NAT conversion rate is >93% s to achieve faster download and upload speed in a shorter time.
Multi operation mode for multi application
CPE3200 support Wireless AP, Gateway, WISP, Wireless Bridge operation mode, effective solution for PTP, PTMP application and outdoor long range WiFi coverage or data transmission.
Access Controller & Cloud Server for Central Management and Captive Portal
Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore.... Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this device more professional in WiFi Projects.
Dual band WiFi Channel Analyzer
Implanted wifi channel analyzer tool into Web interface, administrator can use it to choose the channel with small amount AP to avoid channel interference
High RF Power design but Manual adjustable
Designed in two line Power Amplifier on PCB board, CPE3200’s RF power can be 1000mW high power, with 18dBi MIMO high gain antenna, the wifi range is can be 10KM distance if need, And this RF power is manual adjustable to reduce WiFi Interference and improve wireless stability.
Spec:
| Hardware: | ||
| Chipset | Qulcomm QCA9563 + QCA9882 +QCA8334 | |
| Standard | 802.11ac/b/g/n, MIMO technology | |
| Memory | 128MB DDR2 RAM | |
| Flash | 16MB | |
| Interface | 1 * 10/100 /1000Mbps RJ45 WAN Port | |
| Antenna | Build in 18dBi Panel Antenna | |
| Power consumption | 48V PoE<30W | |
| Size | L: 420mm, W: 250mm, H: 90 mm | |
| Weight | 3KGS | |
| RF Data | ||
|
Frequency |
2.4G:802.11b/g/n: 5GHz:802.11a/n/ac | |
| 2.4GHz,5GHz | ||
| Country code | FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM | |
| DSSS = DBPSK, DQPSK, CCK | ||
| Throughput | 1200Mbps | |
| RF Power |
2.4G: 11n @MCS7:26±2DB, @MCS0:28±2DB. 11g @54M:27±2DB, @6M:29±2DB. 11b @11M:28±2DB, @1M:30±2DB. 5.8G: 11a @54M 23±2DB, @6M 26±2DB. 11n @HT20:MCS7 22±2DB, @MCS0 25±2DB. 11ac@HT80:MCS9 20±2DB, @MCS0 23±2DB. |
|
| Receive Sensitivity |
2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. 5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps. 11n@HT20: -70dbm@MCS7, -90dbm@MCS0. 11ac@HT80:-60dbm@MCS9, -86dbm@MCS0. |
|
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB 802.11a: ≤-25 DB |
|
| PPM | ±20ppm | |
| Firmware Features: | ||
| Operation mode | Wireless AP, Gateway, WISP, WiFi Repeater | |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) | |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption | |
| SSID | Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G) | |
| Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
|
| Protocols | IPv4 | |
| Others: | ||
| Package Contents |
1200Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
|
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux | |
| Environment |
Operating Temperature: -40~55 ℃ Storage Temperature: -40~70 ℃ Storage Humidity: 5%~90% non-condensing |
|
| Management | Firmware GUI , Remote Management, WLAN Controller, Cloud Management System | |
Working Diagram:
