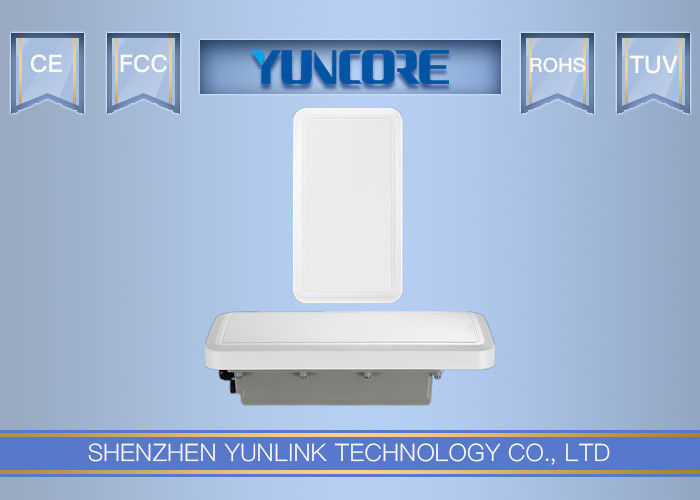

Ajustable RF Power Dual Band Wifi Bridge , Outdoor Waterproof 11AC CPE Dual Band

Ajustable RF Power Dual Band Wifi Bridge , Outdoor Waterproof 11AC CPE Dual Band

Ajustable RF Power Dual Band Wifi Bridge , Outdoor Waterproof 11AC CPE Dual Band

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: CPE3200

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 5 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 PCS/ WEEK
Contact Now
Detailed Product Description
Material: Metal+ABS Chipset: QCA9563
Flash: 16M RAM: 128M
Power: 1000mW PoE: 802.3at
High Light:

dual band wireless bridge

,

long range outdoor cpe

Ajustable RF Power Outdoor Waterproof Dustproof Design 16 + 128 Qualcomm 11AC CPE



ABS + Metal case, waterproof, dust proof and sunscreen shell, temperature adaptive and board protective
CPE3200 with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 55℃. Suit for any country.



High Power for more range and stable signal


Designed in two line Power Amplifier on PCB board, the power can be 1000mW high power, 18dBi MIMO high gain antenna,the wifi range is can be 10KM distance, greatly increase the wifi range and supply the stable wifi signal for users.



Power over Ethernet


CPE3200 has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.



Access Controller System & Cloud Management System


Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....


Main Features:


Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate
1 10/100/1000Mbps WAN Port,faster Ethernet.
1000mW high power, build in 18dBi MIMO antenna, stronger signal strength, more wireless coverage, 16M Flash, 128M DDR2 RAM, more user, more stable
Support IEEE 802.3at PoE standard
Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
With function of build in firewall, IP filter, URL filter and MAC filter
Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
Support DDNS, VPN pass through, Port forwarding and DMZ host
Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security



Spec:



Hardware:
Chipset Qulcomm QCA9563 + QCA9882 +QCA8334
Standard 802.11ac/b/g/n, MIMO technology
Memory 128MB DDR2 RAM
Flash 16MB
Interface 1 * 10/100 /1000Mbps RJ45 WAN Port
Antenna Build in 18dBi Panel Antenna
Power consumption 48V PoE<30W
Size L: 420mm, W: 250mm, H: 90 mm
Weight 3KGS
RF Data





Frequency

2.4G:802.11b/g/n: 5GHz:802.11a/n/ac
2.4GHz,5GHz
Country code FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN
Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Throughput 1200Mbps
RF Power

2.4G: 11n @MCS7:26±2DB, @MCS0:28±2DB.

11g @54M:27±2DB, @6M:29±2DB.

11b @11M:28±2DB, @1M:30±2DB.

5.8G: 11a @54M 23±2DB, @6M 26±2DB.

11n @HT20:MCS7 22±2DB, @MCS0 25±2DB.

11ac@HT80:MCS9 20±2DB, @MCS0 23±2DB.

Receive Sensitivity

2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0.

11g: -72dbm@54Mbps, -88dbm@6Mbps.

11b: -85dbm@11Mbps, -94dbm@1Mbps.

5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps.

11n@HT20: -70dbm@MCS7, -90dbm@MCS0.

11ac@HT80:-60dbm@MCS9, -86dbm@MCS0.

EVM

802.11n: ≤-28 DB

802.11g: ≤-25 DB

802.11b: ≤-10 DB

802.11a: ≤-25 DB

PPM ±20ppm
Firmware Features:
Operation mode Wireless AP, Gateway, WISP, WiFi Repeater
WAN Type Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SSID Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G)
Firewall DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols IPv4
Others:
Package Contents

1200Mbps Dual Band wireless access point

Ethernet Cable

Quick Installation Guide

Setting Accessory

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Environment

Operating Temperature: -40~55 ℃

Storage Temperature: -40~70 ℃
Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing

Management Firmware GUI , Remote Management, WLAN Controller, Cloud Management System



Working Diagram:

Ajustable RF Power Dual Band Wifi Bridge , Outdoor Waterproof 11AC CPE Dual Band
