| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | CPE1200 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 PCS/ WEEK |
| Material: | Metal+ABS | Chipset: | Realtek RTL8197 |
|---|---|---|---|
| Flash: | 16M | RAM: | 128M |
| Standard: | IEEE802.11ac/b/g/n | Frequency: | 2.4GHz + 5.8GHz |
| High Light: | point to point wifi bridge,long range outdoor cpe |
||

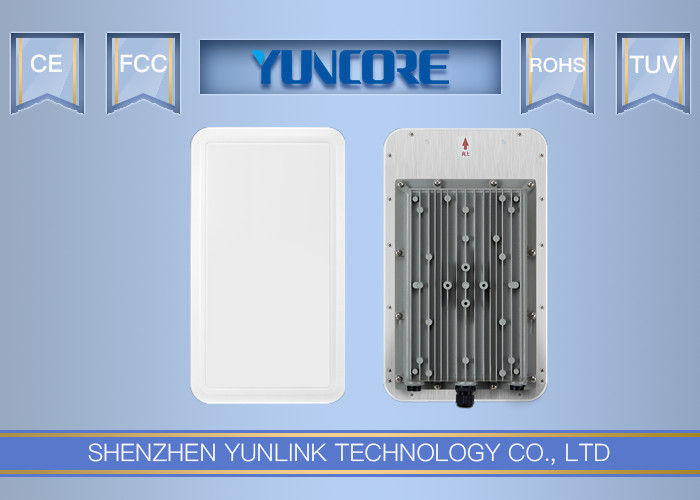

CPE1200 is an high power industrial use Outdoor CPE with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN port, fast Ethernet data rate make more than 100 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
ABS waterproof, dust proof and sunscreen shell, temperature adaptive and board protective
CPE1200 with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 55℃. Suit for any country.
High Power for more range and stable signal
Designed in two line Power Amplifier on PCB board, the power can be 1000mW high power, 18dBi MIMO high gain antenna,the wifi range is can be 10KM distance, greatly increase the wifi range and supply the stable wifi signal for users.
Power over Ethernet
CPE1200 has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Access Controller System & Cloud Management System
Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....
Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this device more professional in WiFi Projects.
Spec:
| Hardware: | |
| Chipset | RTL8197DN+RTL8812AR+RTL8192ER+RTL8211E |
| Standard | 802.11ac/b/g/n, MIMO technology |
| Memory | 128MB DDR2 RAM |
| Flash | 16MB |
| Interface | 1 * 10/100 /1000Mbps RJ45 WAN Port |
| Antenna | Build in 18dBi Panel Antenna |
| Power consumption | 24V PoE<17W ; 48V PoE<30W |
| Size | L: 420mm, W: 250mm, H: 90 mm |
| Weight | 3KGS |
| RF Data | |
|
Frequency |
2.4G:802.11b/g/n , 5.8GHz:802.11a/n/ac MIMO |
| 2.4GHz, 5GHz | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Throughput | 1200Mbps |
| RF Power |
2.4G: 11n @MCS7:24±2DB, @MCS0:26±2DB. 11g @54M:25±2DB, @6M:27±2DB. 11b @11M:26±2DB, @1M:28±2DB. 5.8G: 11a @54M 23±2DB, @6M 26±2DB. 11n @HT20:MCS7 22±2DB, @MCS0 25±2DB. 11ac@HT80:MCS9 20±2DB, @MCS0 23±2DB. |
| Receive Sensitivity |
2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. 5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps. 11n@HT20: -70dbm@MCS7, -90dbm@MCS0. 11ac@HT80:-60dbm@MCS9, -86dbm@MCS0. |
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB 802.11a: ≤-25 DB |
| PPM | ±20ppm |
| Firmware Features: | |
| Operation mode | Wireless AP, Gateway, WISP, WiFi Repeater |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| SSID | Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G) |
| Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
| Protocols | IPv4 |
| Others: | |
| Package Contents |
1200Mbps Dual Band Outdoor CPE Ethernet Cable Quick Installation Guide Setting Accessory |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: -40~55 ℃ Storage Temperature: -40~70 ℃ Storage Humidity: 5%~90% non-condensing |
| Management | Firmware GUI , Remote Management, WLAN Controller, Cloud Management System |

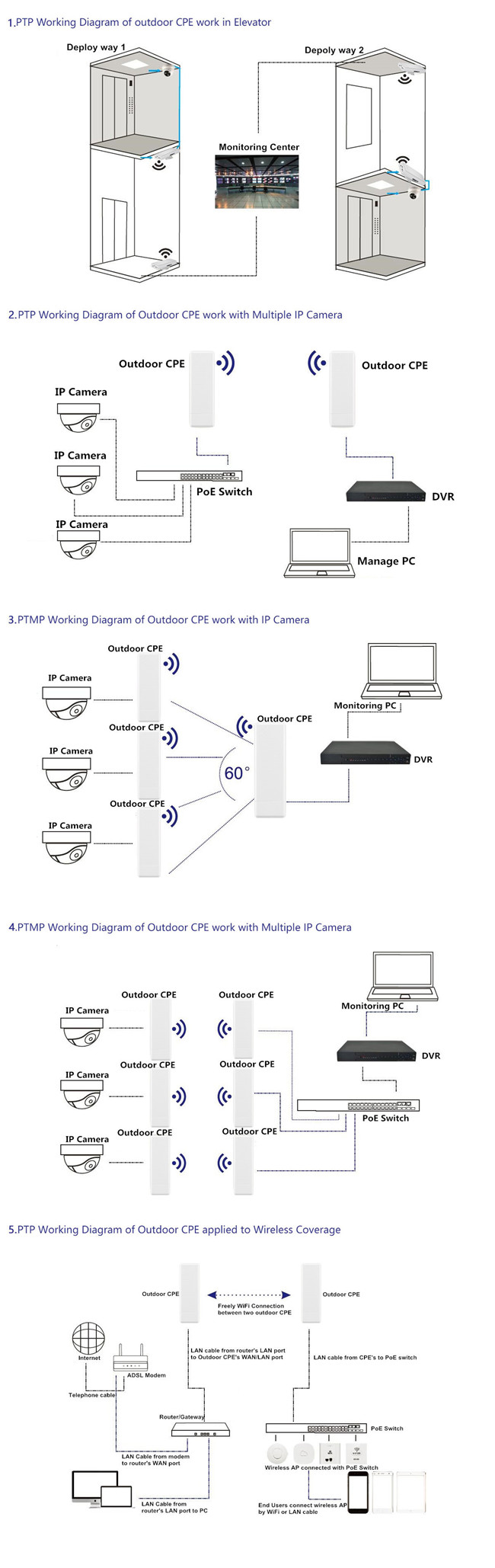

Working Diagram:
