48V PoE Out CAPWAP Smart Home Router , Cloud Management Based Home Network Router

48V PoE Out CAPWAP AC Controller Cloud Management Based WiFi Smart Router Module

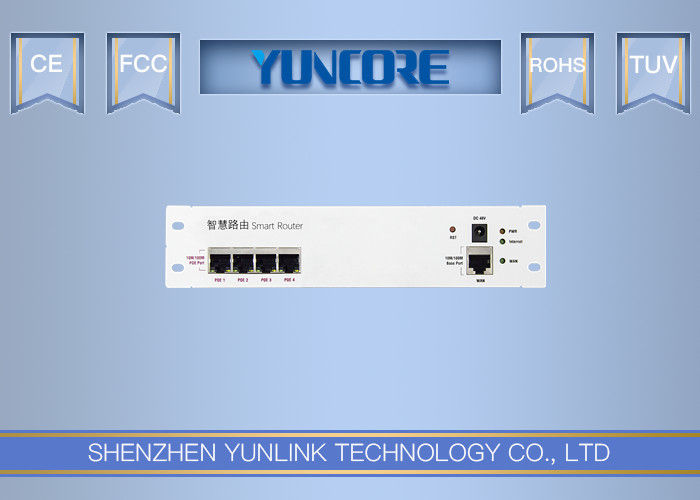

MR410 is a home use smart router with CAPWAP Protocol WLAN controller, (PoE) Ethernet switch, Authentication gateway functions. Build in network/electronic distribution box, it supply Ethernet for PC, IPTV or other entertainment device, then supply PoE power and Ethernet together for in wall wireless AP to bring seamless wireless coverage for each corner.

There are 4*10/100Mbps PoE ports, all ports comply with IEEE 802.3af standard, but automatically to detect the PD equipment and supply 48V PoE power if need;

When connect with PC, easy to login WEB interface to setup MR410 or centralized to configure and manage the connected wireless AP.

There is 1*10/100Mbps WAN port, support PPPoE, Dynamic IP, Static IP, when connect to different ISP network, MR410 will automatic to detect the network type and supply Internet to LAN and PoE ports.

Work with CAPWAP Wireless AP to supply full Wi-Fi coverage, then configure in central, maintain in remote through cloud server, members can solve the network problems at any place and any time.

Besides that, it is an authentication gateway also, support local authentication and remote authentication under cloud server, especially captive portal authentication like Google login, Facebook Login, WeChat Login, SMS Login...

Main Features:

Full Wi-Fi Coverage

Mount in wall wireless AP in each room, bring full Wi-Fi Coverage, freely and stable wireless Ethernet access, then centralized configured and managed by MR410, easy and simple.

Smart Flow Control

Intelligent to detect the user QTY, network traffic, wireless signal strength, then control user’s flow to supply a freely internet experience

Internet Behavior Control

Support parental control, reasonable to regulate their kids Internet behavior, provide a green and healthy Internet environment.

Beside that, it can control a variety of application software, limit P2P and manage user’s Internet behavior

Seamless Roaming

Managed by the smart router, even move from living room to bedroom, upstairs or downstairs, users will be seamless switch between each AP and keep high speed Internet always.

Energy Saving

It is easy to power on/off each in wall wireless AP if no users in certain room to save the energy, but not affect others.

Installation concealed with PoE power supply

MR410 is integrated in electronic/network distribution box and supply PoE power, work with in wall wireless AP, all cable is embedded in the wall, security and concealment, safety, tidy and perfectly comply with home decoration.

Advanced Firewall

Support advance firewall based on IP address, domain name and DDoS attack defense.

Cloud Management and Maintenance

MR410 support remote maintenance from cloud server if out of service, members can solve the problem at any place, any time.

Spec:

Working Diagram:
