Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | MR470 |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000 PCS/ WEEK |
Material: | Metal | Chipset: | RTL8197FH+RTL8367RB |
---|---|---|---|
Flash: | 16M | RAM: | 128M |
PoE: | 48V Passiv PoE | Power: | 72W |
Port: | 1*10/100/1000 WAN, 4*10/100/1000 LAN | Giftbox: | White Neutral |
High Light: | gigabit home router,network distribution box |

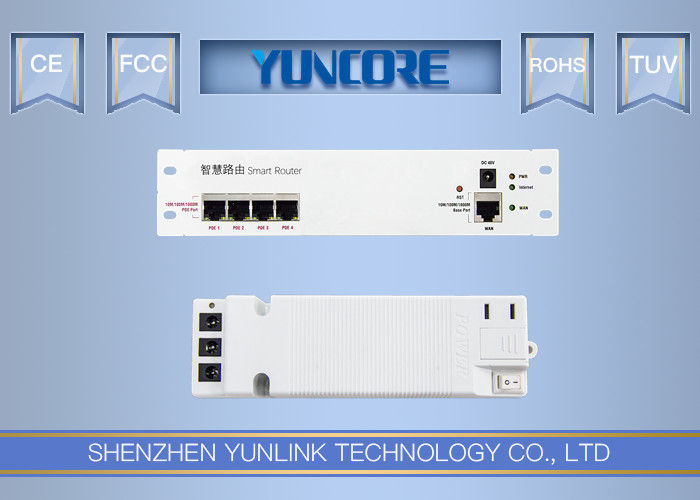

WLAN Controller with 4 Gigabit Port 48V PoE Switch Broadband Router Work With Inwall AP
Main Features:
Full Wi-Fi Coverage
Mount in wall wireless AP in each room, bring full Wi-Fi Coverage, freely and stable wireless Ethernet access, then centralized configured and managed by MR410, easy and simple.
Smart Flow Control
Intelligent to detect the user QTY, network traffic, wireless signal strength, then control user’s flow to supply a freely internet experience
Internet Behavior Control
Support parental control, reasonable to regulate their kids Internet behavior, provide a green and healthy Internet environment.
Beside that, it can control a variety of application software, limit P2P and manage user’s Internet behavior
Seamless Roaming
Managed by the smart router, even move from living room to bedroom, upstairs or downstairs, users will be seamless switch between each AP and keep high speed Internet always.
Energy Saving
It is easy to power on/off each in wall wireless AP if no users in certain room to save the energy, but not affect others.
Installation concealed with PoE power supply
MR410 is integrated in electronic/network distribution box and supply PoE power, work with in wall wireless AP, all cable is embedded in the wall, security and concealment, safety, tidy and perfectly comply with home decoration.
Spec:
Hardware | |
Model | MR470 |
CPU | RTL8197FH+RTL8367RB |
Flash | 16MB |
SDRAM | 128MB |
PoE Output | 48V, IEEE 802.3af Standard. |
PoE Power | 72W in total, max 10W for each RJ45 port. |
Size | 229mm * 49.5mm * 28.0mm |
Weight | <300g |
Interface |
1 * 10/100/1000Mbps WAN port 4 * 10/100/1000Mbps PoE ports, IEEE 802.3af standard 1 * DC port, 48V/1.5A 1 * Reset Button |
Reset | Reset Button, press 10 seconds to revert to default data. |
LED Indicator | PWR(Power), NET(Internet), WAN |
Power Consumer | <8W |
Working Environment |
Working Temperature: -20℃ ~ +50℃ Storage Temperature: -40℃ ~ +70℃ Humidity:5%~95% (No condensation) |
Accessory | 72W Power adapter; 2PCS DC Power cable, 1PC AC Power cable, User Manual |
Working Diagram:
