| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | HW-AP20Q |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | Metal | Chipset: | Qualcomm QCA9531 |
|---|---|---|---|
| Band: | 2.4GHz-2.483GHz | Flash: | 16M |
| RAM: | 128M | Power: | 500mW |
| High Light: | outdoor wireless ap,outdoor wifi access point |
||
Qualcomm Chipset. Comply with IEEE 802.11b g n Standard 300Mbps Speed Outdoor Base Station
HW-AP20Q is an Qualcomm Chipset Outdoor wireless AP/CPE. It comply with IEEE 802.11b/g/n standard, 300Mbps high speed, with N type antenna connector, 800mW high power for wider outdoor wifi range.
It support wireless AP, Gateway, WiFi Repeater, Bridge, WISP, WDS operation mode, then with N type connector for detachable omni/panel antenna, user can flexibly choose a suitable wireless mode to build or extend the wireless networking based on exist networking structure.
MIMO Technology, 300Mbps Data Rate
Comply with IEEE 802.11b/g/n standard, 2.4GHz frequency, 2T2R protocol with 300Mbps data rate
Various Operation Modes for different network environment
It support wireless AP, Gateway, WiFi Repeater, Bridge, WISP, WDS operation mode, then with N connector for detachable omni/panel antenna, user can flexibly choose a suitable wireless mode to do WiFi Coverage or PTP, PTMP, MPTMP applications.
Excellent Outdoor Weatherproof and Lighting Protection
with metal waterproof, dustproof and sunscreen shell, temperature adaptive and board protective to work in harsh outdoor environment, meanwhile, the auxiliary cooling function make AP20Q work normal at different environment
Spec:
| Specification: | |
| Hardware: | |
| Chipset | Qualcomm QCA9531 |
| Wireless | 802.11N, 2T2R 300M MIMO Technology |
| Memory | 64MB DDR2 RAM (128MB available by extra cost) |
| Flash | 16MB |
| Interface | 1* 10/100 Mbps RJ45 Port, support 12~24V PoE |
| 1 * Reset Button | |
| Antenna | N Connector, can connect with panel antenna/omni antenna |
| LED Light | Power, WiFi |

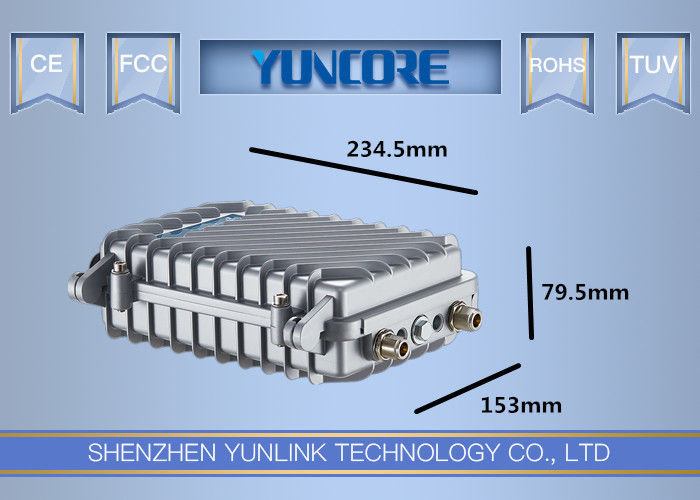

| Size | L: 153.2mm, W: 79.5mm, H: 234.5 mm |
| Power | POE 24V/1A (48V PoE is optional);110V/220V |
| RF Date: | |
| Frequency | 802.11b/g/n: |
| 2.312GHz to 2.4835GHz | |
| Korea, Japan, ETSI, FCC, Debug | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Data Rate | 300 Mbps |
| Receive Sensitivity |
802.11n: -70dbm@MCS7, -88dbm@MCS0. 802.11g: -72dbm@54Mbps, -88dbm@6Mbps. 802.11b: -85dbm@11Mbps, -94dbm@1Mbps. |
| RF Output Power |
802.11n: @MCS7:25±2DB, @MCS0:27±2DB. 802.11g: @54M:26±2DB, @6M:28±2DB. 802.11b: @11M:27±2DB, @1M:29±2DB |
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
| PPM | ±20ppm |
Working Diagram:
