Place of Origin: | China |
Brand Name: | OEM |
Certification: | CE |
Model Number: | HW-LTE750-SK |
Minimum Order Quantity: | 100 pcs |
---|---|
Packaging Details: | Giftbox |
Delivery Time: | 5-8 working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1000pcs per week |
Chipset: | QCA9531+QCA9887 | Material: | ABS |
---|---|---|---|
Flash: | 16M | RAM: | 128M |
High Light: | outdoor wireless ap,access point base station |

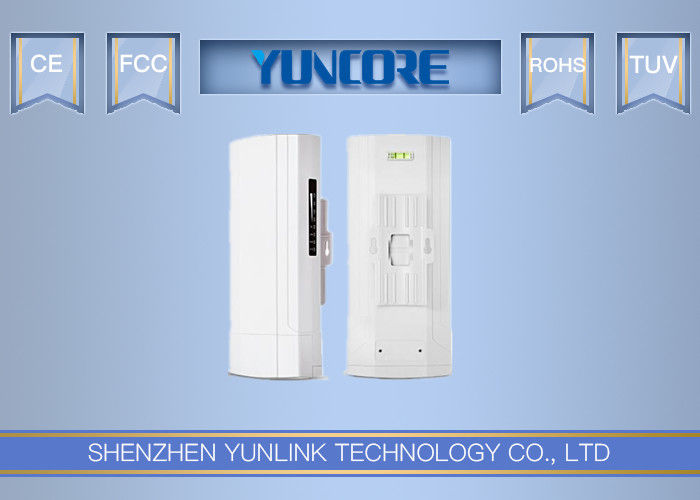

750Mbps Outdoor Wireless Access Point 4G LTE Dual Band IP65 Level Waterproof Dustproof
HW-LTE750-SK is an IEEE 802.11ac/b/g/n standard high power outdoor LTE CPE for LTE base station, Qualcomm chipset, dual band 750Mbps data rate, widely be used in outside to convert 3G/4G data to high-speed, safe and reliable Wi-Fi signal for end users, to meet with their wireless connection for information, entertainment or business request.
Main Features:
1. Comply with IEEE 802.11ac/b/g/n Standard, 2.4GHz and 5.8G frequency, the data rate up to 750Mbps, faster Wi-Fi speed with very stable performance.
2. Build in 3G/4G SIM card slot, support LTE-TDD/LTE-FDD, WCDMA/CDMA and GSM networking. Then band adjustable, can comply with all operator.
3. With N connector for Wi-Fi antenna and 3G/4G antenna, improve the Wi-Fi range, bring stable wireless network access.
4. Support Power over Ethernet, passive PoE, can work in the place even no power supply.
5. Build in lightning protection on PCB board, keep device work normal even in outdoor thunderstorm weather for a long time
4G band Support:
Name | Content |
LTE Module Model | ZTE: ME3630-C1C |
Band Support |
GSMB3/8; CDMA1X CDMA EVDO 800M; WCDMA B1; TD-SCDMA B34/39; LTE FDD B1/3/5; LTE TDD B38/39/40/41 |
LTE Module Model | Huawei: ME909s-821 |
Band Support |
GSMB3/8; WCDMA B1, B9, B5, B8 TD-SCDMA B34/39; LTE FDD B1/3/8; LTE TDD B38/39/40/41 |
Product Specification:
|
|||||
Chipset | Qualcomm QCA9531+QCA9887 | ||||
Frequency | 550MHz | ||||
Wi-Fi Standard | 802.11ac/b/g/n ; Dual band, 750Mbps, MIMO technology | ||||
Memory | 128MB DDR RAM | ||||
Flash | 16MB | ||||
Interface | WAN Port: 1 * 10/100Mbps RJ45 Port, PoE Support | ||||
LAN Port: 1 * 10/100Mbps RJ45 Port | |||||
Reset button: Press it with 10 second, product with default data | |||||
TF Card Slot: Support | |||||
SIM Card Slot: work with 3G/4G data card | |||||
Antenna |
2.4G: 2 * 4dBi omni antennas 5.8G: 1 * 5dBi omni antenna 4G: 1 * 2dBi omni antennas |
||||
Power | PoE: 24V 1.0A, 24V Passive PoE | ||||
Power Consume | < 15 W | ||||
LED Indicator | WAN, LAN | ||||
Max end user | 128 | ||||
RF Data | 802.11ac/b/g/n | ||||
2.4GHz, 5.8GHz | |||||
Modulation Scheme | OFDM = BPSK,QPSK, 16-QAM, 64-QAM | ||||
DSSS = DBPSK, DQPSK, CCK | |||||
Data Rate |
2.4G: 300Mbps 5.8G: 433Mbps |
||||
2.4G RF Output Power | 802.11b | 11M | 21±2dBm | 1M | 23±2dBm |
802.11g | 54M | 20±2dBm | 6M | 22±2dBm | |
802.11n HT20 | MCS7 | 19±2dBm | MCS0 | 21±2dBm | |
802.11n HT40 | MCS7 | 18±2dBm | MCS0 | 20±2dBm | |
5.8G RF Output Power | 802.11a | 54M | 19±2dBm | 6M | 21±2dBm |
802.11n HT20 | MCS7 | 18±2dBm | MCS0 | 20±2dBm | |
802.11n HT40 | MCS7 | 17±2dBm | MCS0 | 19±2dBm | |
802.11ac HT80 | MCS9 | 16±2dBm | MCS0 | 18±2dBm | |
2.4G Receive Sensitivity | 802.11b | 11M | -85dBm | 1M | -94dBm |
802.11g | 54M | -72dBm | 6M | -90dBm | |
802.11n HT20 | MCS7 | -70dBm | MCS0 | -88dBm | |
802.11n HT40 | MCS7 | -68dBm | MCS0 | -86dBm | |
5.8G Receive Sensitivity | 802.11a | 54M | -74dBm | 6M | -90dBm |
802.11n HT20 | MCS7 | -72dBm | MCS0 . | -88dBm | |
802.11n HT40 | MCS7 | -68dBm | MCS0 . | -86dBm | |
802.11ac HT80 | MCS9 | -58dBm | MCS0 . | -80dBm | |
2.4G EVM |
802.11b_11M: ≤-10 dB; 802.11g_54M: ≤-25 dB; 802.11n_MCS7: ≤-28dB |
||||
5.8G EVM |
802.11a: ≤-25 dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB |
||||
PPM | ±20ppm | ||||
Product Size | 315mm*145mm*80mm | ||||
Water-Proof Level | IP65 | ||||
Working Environment |
Working Temperature:-30°C to 55°C Limit Working Temperature: -40°C to 70°C Storage Temperature: -40°C to 70°C Humidity: 5%~95%(Non-condensing) |
||||
Firmware |
QSDK firmware (4G and Gateway operation mode); OpenWRT firmware |
||||
SSID | Multiple SSID up to 4, support SSID hide | ||||
Packing |
HW-LTE750-SK: 1PC 24V PoE Adapter: 1PC Installation Accessory: 1PC LAN Cable: 1PC |
