| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | CPE760/ CPE760SR |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | ABS | Chipset: | QCA9563 |
|---|---|---|---|
| Flash: | 16M | RAM: | 128M |
| Power: | 500mW | Antenna: | 15 DBi Panel Antenna |
| High Light: | outdoor cpe device,5.8 ghz wireless bridge |
||
900Mbps Data Rate 15dBi Panel antenna Multi Modes AP Repeater WISP Gateway Outdoor Bridge
Main Features:
900Mbps Data Rate & Gigabit WAN/LAN Ports
CPE-760/CPE-760SR features 802.11ac Wi-Fi and 2*2 MIMO technology, 900Mbps wireless speed. Equipped with Gigabit Ethernet port ensures high speed internet access and more end users access.
5KM PTP/PTMP Distance
Designed in two line Power Amplifier on PCB board, the power can be 500mW high power, 15dBi MIMO high gain panel antenna, greatly increase the wifi range to 5KM distance, then supply the stable wifi signal for users.
Power over Ethernet
CPE-760/CPE-760SR has integrated passive Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Multiple operation mode, Press WDS Switch button to do PTP/PTMP Connection
CPE-760/CPE-760SR support Gateway, WISP, Wireless AP, WiFi Repeater, WDS operation mode, it is widely used in WiFi Bridge Connection, WISP Connection and Wireless Security;
CPE-760/CPE-760SR with WDS Switch button, press it to do the PTP/PTMP connection, very easy, no need to access into GUI.
5GHz frequency, more channels, lower latency, higher stability
CPE890 with full frequency of 5020~6100MHz, more than 200 channels available, it avoid the same frequency interference problem, full meet with data transmission in fast speed, low delay, high stability requirement in wireless security or data transmission.
Access Controller System & Cloud Management System
With Access Control System under AP/WDS operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....
Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this AP more professional in WiFi Projects.
Spec:
| Hardware: | |
| Chipset | Qualcomm QCA9563 |
| Standard | 802.11ac/a/n, MIMO technology |
| Memory | 128MB DDR2 RAM |
| Flash | 16MB |
| Interface | 1 * 10/100/1000Mbps RJ45 WAN Port |
| 1 * 10/100/1000Mbps RJ45 LAN Port | |
| 1 * WDS switch button, press it to do WDS PTE/PTMP connection | |
| 1 * DC injector, 12V/1A | |
| 1 * Reset button, press 15 seconds to revert to default setting | |
| Antenna | Build in 15dBi MIMO Panel Antenna |
| Power consumption | 24V PoE, <8W |

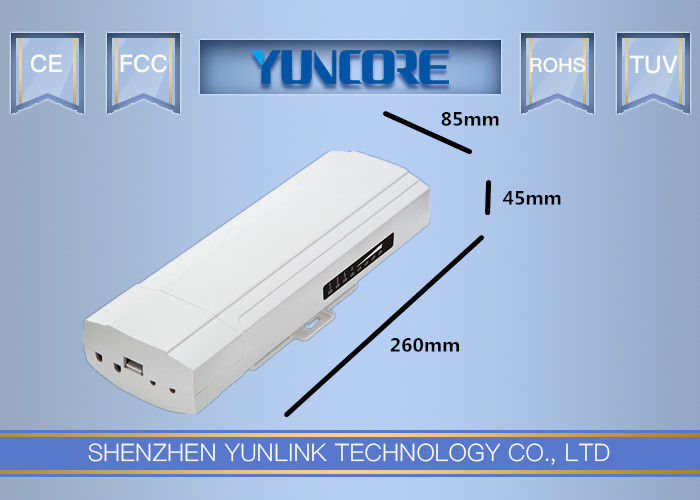

| Size | 260mm * 85 mm * 45mm |
| RF Data | |
| Frequency | 5GHz: 802.11a/ac |
| 5GHz: 5180~5825MHz | |
| Throughput | 900Mbps |
| Country code | FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Receive Sensitivity& RF Power | |
| RF Power |
802.11a: 54M 23±2DB,6M 26±2DB. 802.11n HT20: MCS7 23±2DB, MCS0 26±2DB. 802.11n HT40: MCS7 22±2DB, MCS0 25±2DB. 802.11ac HT80: MCS9 20±2DB, MCS0 23±2DB. |
| Receive Sensitivity |
802.11a: -72dbm@54Mbps; -90dbm@6Mbps. 802.11n HT20: -70dbm@MCS7, -90dbm@MCS0 . 802.11n HT40: -66dbm@MCS7, -90dbm@MCS0 . 802.11ac HT80: -60dbm@MCS9, -86dbm@MCS0 . |
| EVM |
802.11n: ≤-28 DB 802.11a: ≤-25 DB |
| Firmware Features: | |
| Operation mode | Wireless AP, Gateway, WISP, WiFi Repeater, WDS |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| SSID | Multiple SSID up to 4 |
| Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
| Protocols | IPv4 |
| Others: | |
| Package Contents |
900Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: -44~55 ℃ Storage Temperature: -40~70 ℃ Storage Humidity: 5%~90% non-condensing |
| Management | Firmware GUI ,Remote Management, WLAN Controller, Cloud Management System |

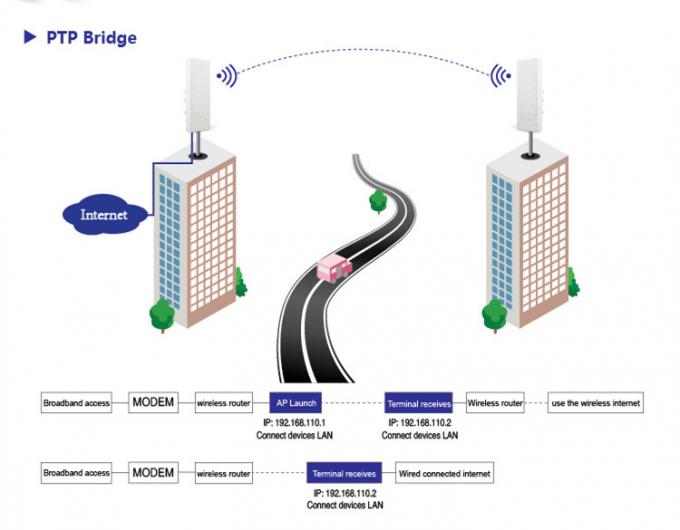

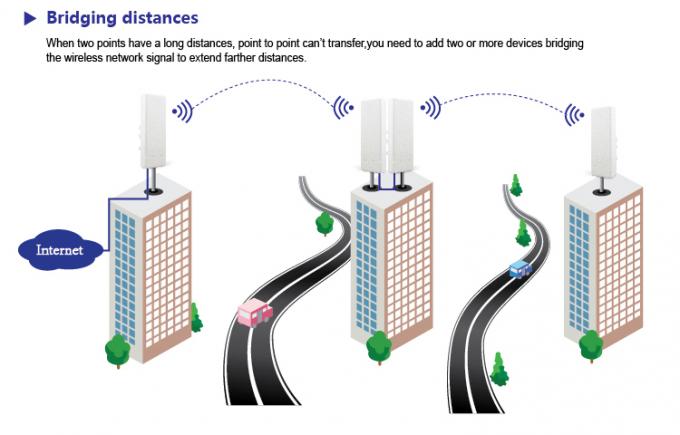

Working Diagram:
