Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | T450 |
Minimum Order Quantity: | 1000 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000 PCS/ WEEK |
Material: | Metal | Chipset: | MKT 7620A |
---|---|---|---|
Flash: | 8M | RAM: | 64M |
Band: | 2.4GHz-2.483GHz | Port: | 1*10/100 WAN, 4*10/100 LAN |
High Light: | 300mbps wireless n router,802.11 wifi router |
Product SPEC |
|
Hardware | |
Chipset | MT7620A 300Mbps |
Standard | 802.11N, 2T2R 300M MIMO Technology |
Memory | 64Mb DDR2 RAM |
Flash | 8Mb |
Interface | 1 10/100 Mbps WAN Port |
4 10/100 Mbps LAN Port | |
1 Button: WPS button in short pressing, Reset button in 15 seconds pressing | |
1 DC Jack | |
1 USB Port, support SAMBA, FTP Server and DLNA function | |
Antenna | 3PCS 2.4G Omni 5dBi detachable antenna |
Power | <12W |
DC Power | DC 12V----1.5A |
Dimensions | 198mm X129mm X 28mm |
Weight | 758g |
RF Data | |
Frequency |
802.11b/g/n: |
2.4~2.4835GHz | |
Korea,Japan,ETSI,FCC channel | |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
DSSS = DBPSK, DQPSK, CCK | |
Throughput | 300 Mbps |
Sensitivity |
11n : -70dBm@10% PER 11g : -72dBm@10% PER 11b : -90dBm@8% PER |
Output Power | 802.11n:26dBm for 11n mode |
802.11g: 26dBm for OFDM mode | |
802.11b: 28dBm fro CCK mode |

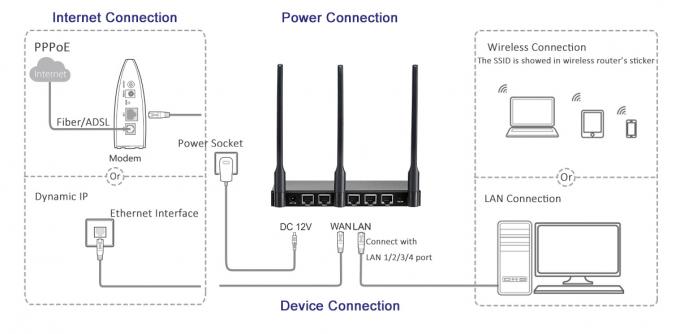

Working Diagram:
